Flush Inset Application 1
6

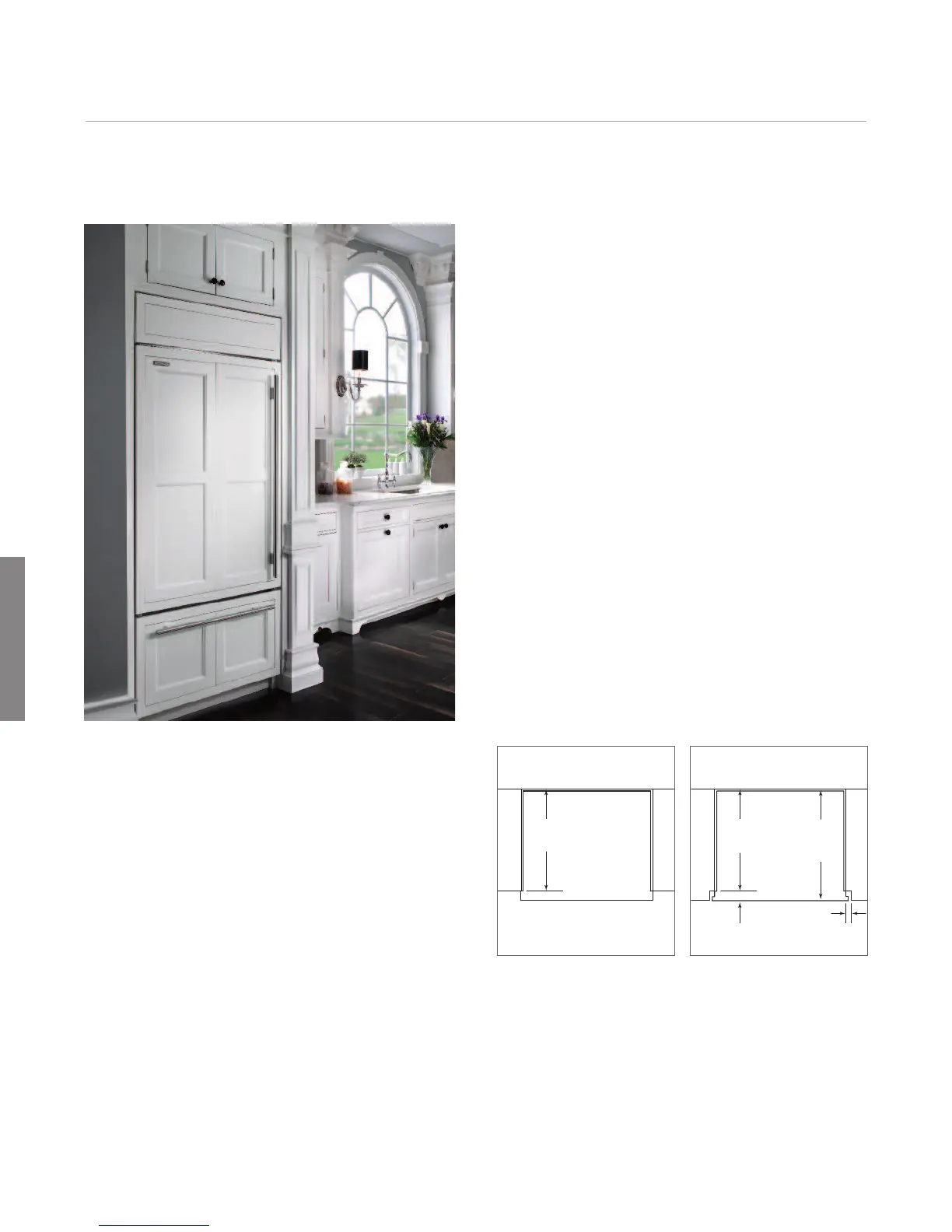

This brand new design option allows for a flush door and
grille. Classic, platinum and carbon stainless steel panels
are available as sales accessories. Shown with tubular
handle option to mirror Wolf L Series ovens.
Flush Inset Application. I
t is necessary to consider
the following points when planning for a flush inset
application:
• The flush inset depth is 56 mm deeper than the
standard opening.
• The flush inset width is 64 mm wider than the
standard opening.
• The flush inset height is 6 mm higher than the
standard opening.
• Panel widths increase to achieve the flush inset look.
• You must allow a 13 mm reveal around the perimeter
of the unit and grille to allow for proper door swing
and airflow.
IMPORTANT NOTE: Do not confuse the flush inset appli-
cation as being a separate model. This is an overlay unit
in a flush installation. The same model is used in an
overlay or flush inset application.
Rough opening dimensions for the new flush inset appli-
cation assume the use of a 19 mm decorative panel. The
illustrations below show the difference between standard
and flush inset installations.
STANDARD INSTALLATION
610 mm
OPENING
DEPTH
TOP VIEW
Standard installation. Flush inset installation.
665 mm
FLUSH
INSET
DEPTH
56 mm
32 mm
TOP VIEW
FLUSH INSET INSTALLATION
WITH
19 mm PANEL
610 mm
OPENING
DEPTH
Flush Inset
