Sub-Zero CBBI-36R

Flush Inset Application 1
7
Flush Inset Installation Opening Dimensions
Flush Inset Opening Widths AB
ICBBI-36R, ICBBI-36RG and ICBBI-36F 902 mm 965 mm
ICBBI-30U and ICBBI-30UG 746 mm 813 mm
ICBBI-36U and ICBBI-36UG 902 mm 965 mm
ICBBI-36S 902 mm 965 mm
ICBBI-42S and ICBBI-42SD 1054 mm 1118 mm
ICBBI-48S and ICBBI-48SD 1206 mm 1270 mm
IMPORTANT NOTE: Dimensions assume a 19 mm panel
thickness.
IMPORTANT NOTE: If two units are installed side by side,
refer to pages 26–27 for dual flush inset installations.

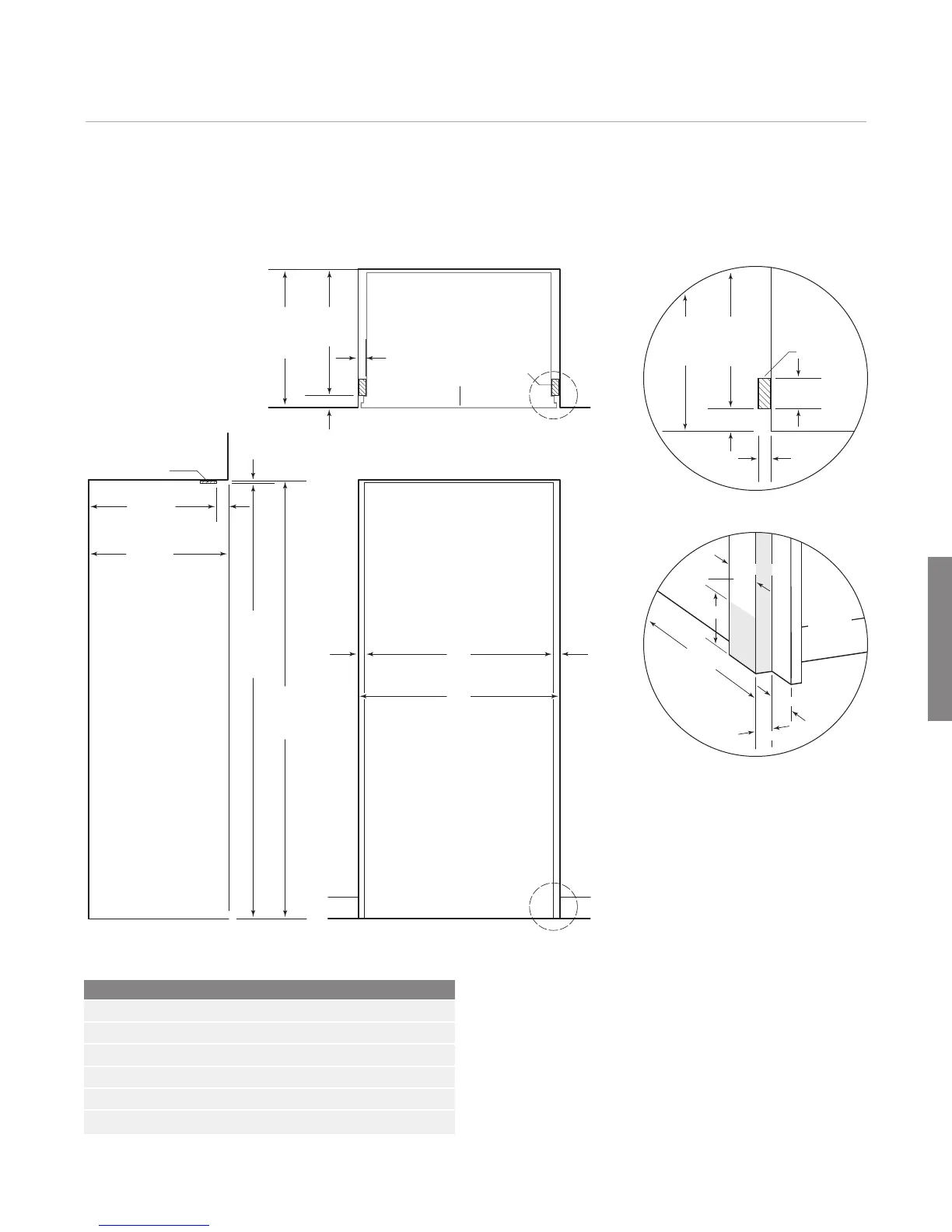

OUTLINE
OF UNIT WITH
19 mm PANEL
DETAIL A
DETAIL B
FRONT VIEW
A
WIDTH TO CLEAT
B
FLUSH INSET WIDTH
32 mm 32 mm
SIDE VIEW
2134 mm
FLUSH
INSET
HEIGHT
6 mm
610 mm
DEPTH TO CLEAT
665 mm
FLUSH INSET DEPTH
56 mm
2127 mm
HEIGHT
TO CLEAT
2108 mm
min
610 mm
DEPTH
TO CLEAT
665 mm
FLUSH
INSET
D
EPTH
TOP VIEW
56 mm
32 m
m
CLEAT
CLEAT
Detail A
Detail B
32 mm
610 mm
O
PENING
DEPTH
T
O CLEAT
CLEAT
TOP VIEW
665 mm
F
LUSH
INSET
D
EPTH
5
6
m
m
76 mm
typical
610 mm
OPENING
DEPTH TO
CLEAT
56 mm
CLEAT
SHADED
AREA
M
UST BE
F
INISHED
76 mm typical
102 mm
32 mm
Flush Inset
