Flush Inset Panels—Dual Installation. W
hen
installing two built-in models side by side in a flush inset
application, you must decrease the width of the decora-
tive flush inset panels by 13 mm. Adjustments to the
panel offsets will also need to be made. These adjust-
ments are needed to achieve a proper fit and to ensure
the panels do not collide when closing. Panel dimensions
in the chart below have been adjusted to reflect the
decrease in panel dimensions.
IMPORTANT NOTE: If a filler strip is not used, dual instal-
lations can only be accomplished using two units with
opposite hinges.

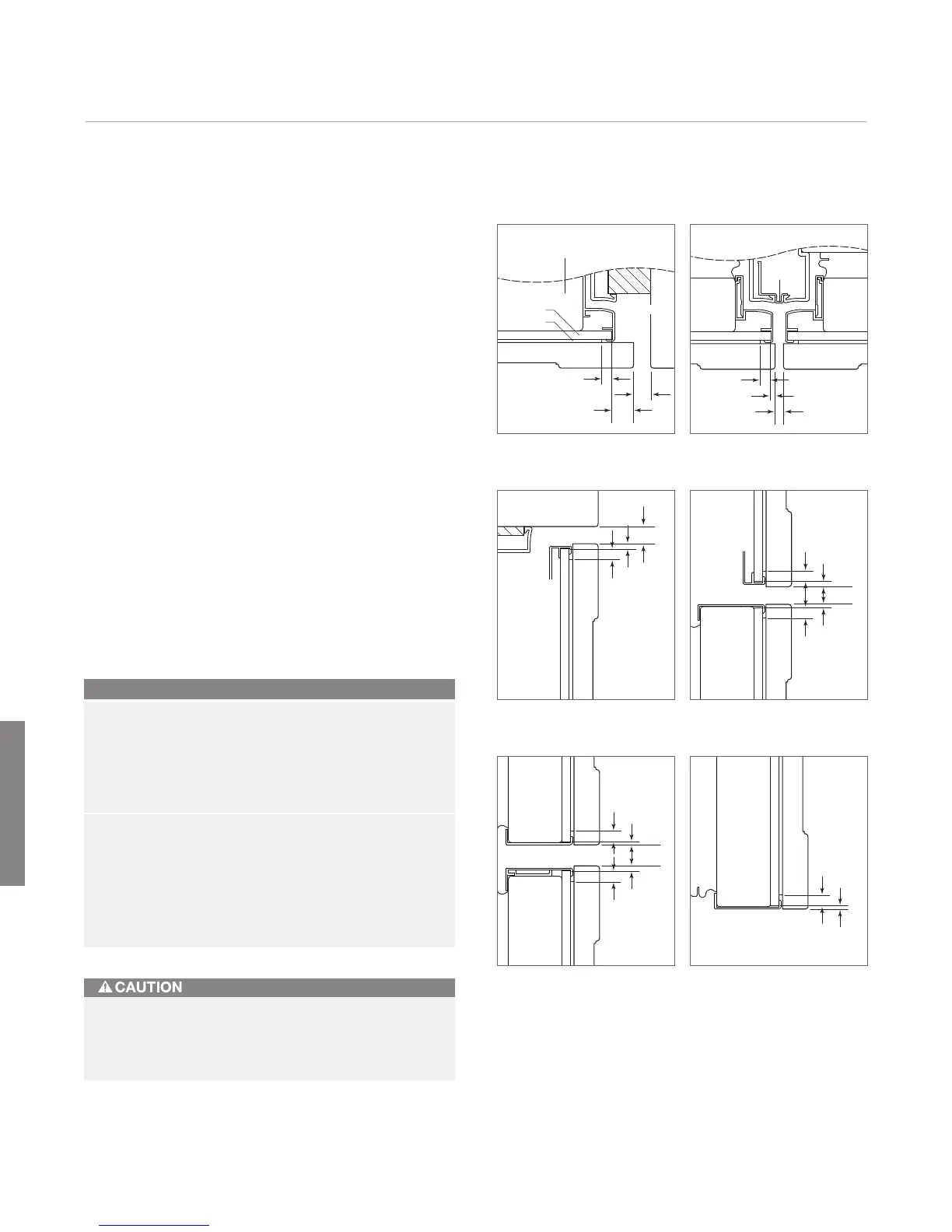

Illustrations A–F provide panel offsets and reveals for all
built-in models in a flush inset application. Refer to the
chart below for reference to the illustrations relating to
your specific model. All reveals are 13 mm unless other-
wise specified.
For additional information on model specific panel
reveals, visit the Specification Library section of our
website, subzerotrade.com.
1
6
mm
8 m
m
13
mm
FLUSH INSET PANEL
SPACER
BACKER
DOOR / DRAWER / GRILLE
TOP VIEW
CABINETRY
Illus. A Illus. B
DUAL
T
RIM
6 mm
REVEAL
8 mm
3 mm
DOOR DOOR
TOP VIEW
Do not exceed the flush inset decorative panel
dimensions. Exceeding dimensions could cause
damage to the panels and the Sub-Zero unit.
13 mm
8 m
m
3 mm
CABINETRY
GRILLE
SIDE VIEW
Illus. C Illus. D
13 mm
2 mm
8 mm
8 mm
4 mm
GRILLE
DOOR
SIDE VIEW
16 mm
4 mm
8 mm
8 mm
2 mm
DOOR
DRAWER
SIDE VIEW
Illus. E Illus. F
8 mm
2 mm
DOOR /
DRAWER
SIDE VIEW
Panel Offsets Illus.
ALL REFRIGERATOR / ALL FREEZER
Doors (hinge) / Grille Sides A
Doors (handle) Sides B
Grille Top C
Grille Bottom / Door Top D
Door Bottom F
OVER-AND-UNDER
Doors (hinge) / Drawer / Grille Sides A
Doors (handle) Sides B
Grille Top C
Grille Bottom / Door Top D
Door Bottom / Drawer Top E
Drawer Bottom F
