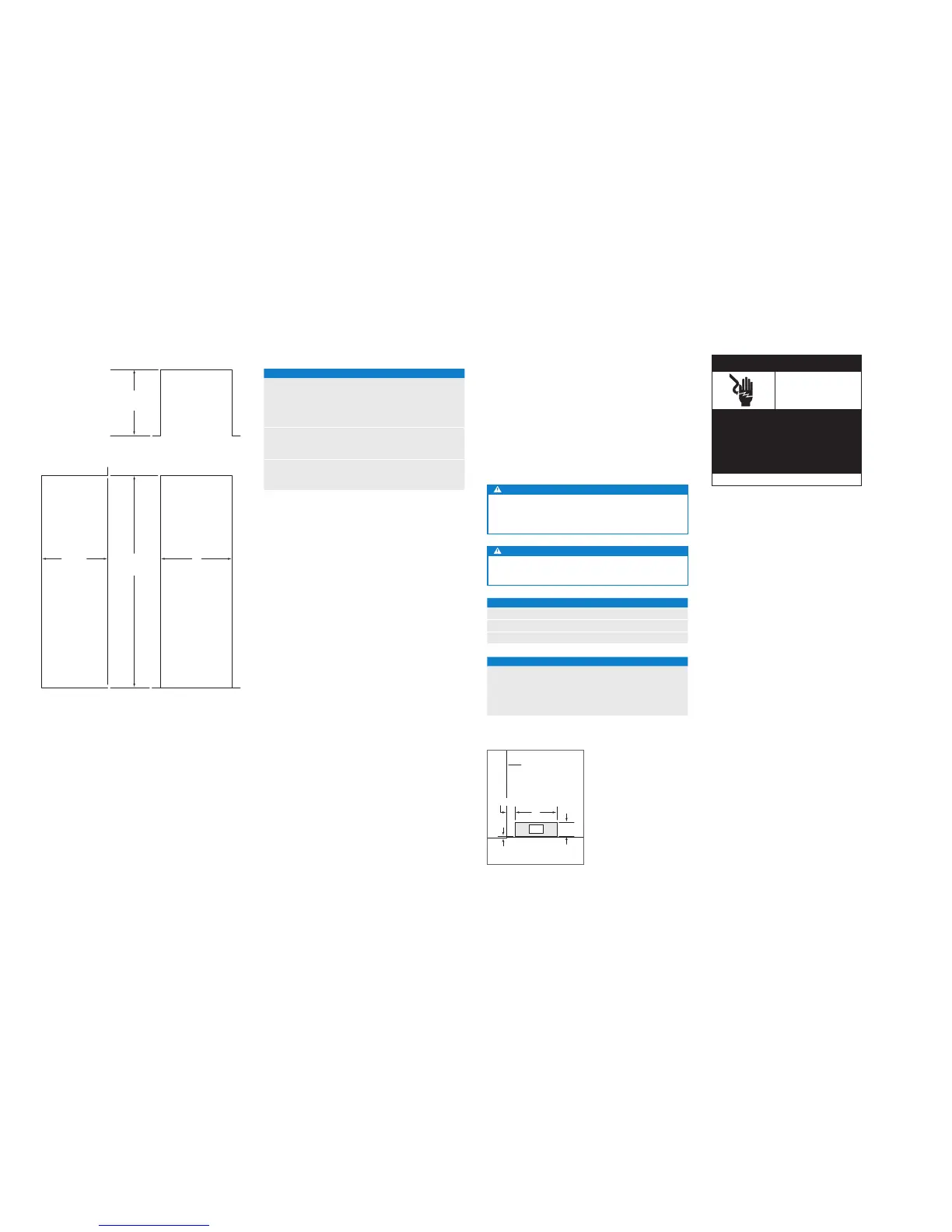

SITE PREPARATION
Opening Dimensions
INTEGRATED MODELS
635 mm
OPENING
DEPTH
A
OPENING WIDTH
635 mm
OPENING DEPTH
B
OPENING
HEIGHT
TOP VIEW
FRONT VIEWSIDE VIEW
OPENING DIMENSIONS A B
COLUMN MODELS WIDTH HEIGHT
ICBIC-18FI 457 mm 2134 mm
ICBIC-24R, ICBIC-24FI 610 mm 2134 mm
ICBIC-30RID, ICBIC-30FI 762 mm 2134 mm
ICBIC-36RID 914 mm 2134 mm
TALL MODELS A B
ICBIT-30RID, ICBIT-30CIID 762 mm 2134 mm
ICBIT-36CIID 914 mm 2134 mm
DRAWER MODELS A B
ICBID-30RP, ICBID-30CI 762 mm 876 mm
ICBID-36CI 914 mm 876 mm
The depth of each integrated model is 610 mm. Allow for
panel thickness when planning the nished opening depth.
Electrical
Installation must comply with all applicable electrical codes.
The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and may
cause interruption of operation.
This appliance is equipped with an appliance inlet type
device. The appliance inlet is located at the bottom rear of
the appliance. When replacing the power cord verify the
replacement cord is rated HO5VV-F3G1.0 or equivalent to
ensure safe operation.
CAUTION
The outlet must be checked by a qualied electrician to
be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded (earthed).
WARNING
Do not use an extension cord, two-prong adapter or
remove the power cord ground prong.
ELECTRICAL REQUIREMENTS
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 10 amp
Receptacle grounding-type (earthed)
ELECTRICAL SUPPLY LOCATION
WIDTH A
457 mm Models 152 mm
610 mm Models 241 mm
762 mm Models 318 mm
914 mm Models 394 mm
A
6 mm
108
mm
114 mm
FRONT VIEW
FLOOR
LEFT SIDE
OF OPENING
E
Electrical supply location.
Electrical
Shock
Hazard
Plug power cord directly into a properly
grounded (earthed) outlet.
Do not defeat the grounding (earthing)
nature of the plug.
Do not use adapter or extension cord.
Failure to follow these instructions could
cause serious injury or death.
See installation instructions
