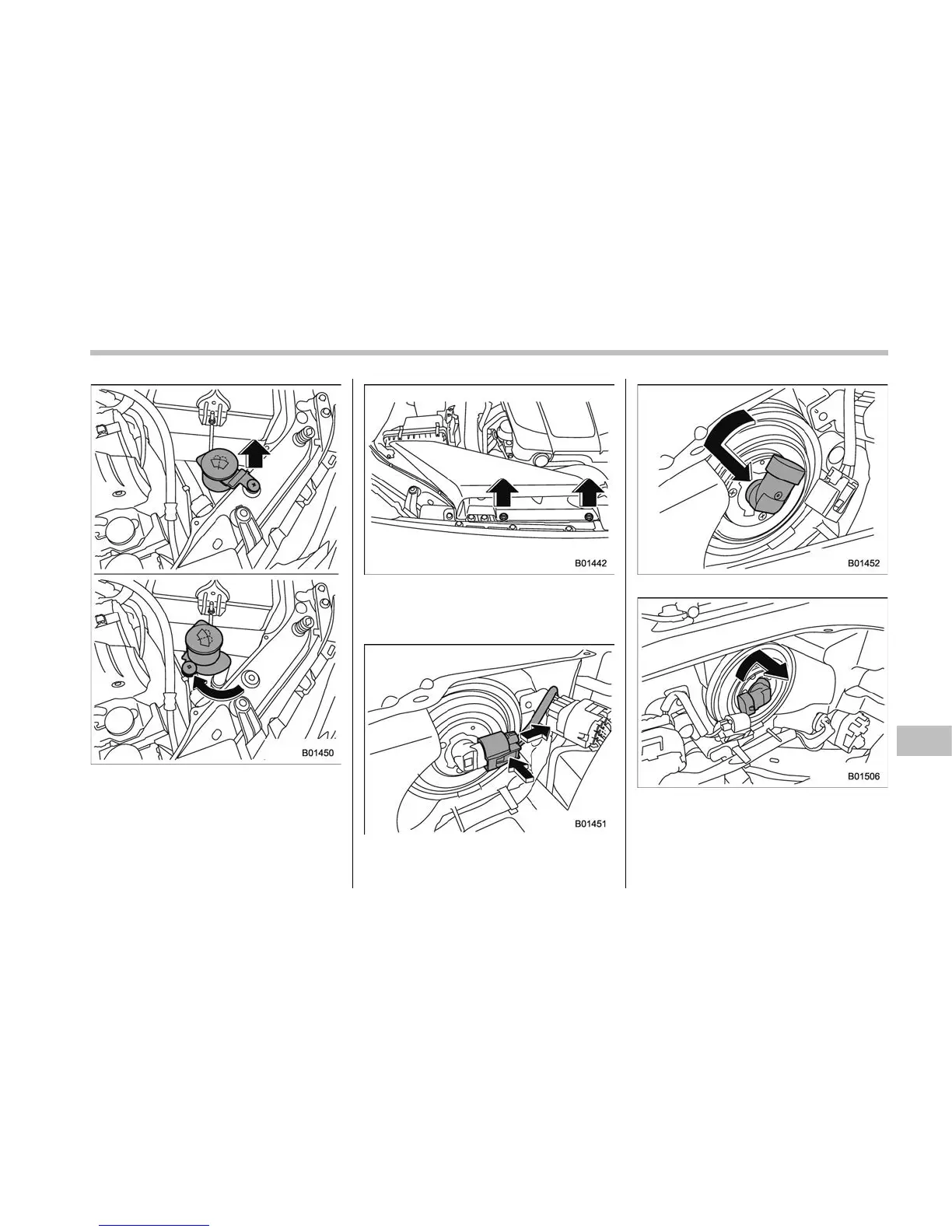

Left-hand side
1. Left-hand side: Use a screwdriver to
remove the secured clip of the washer
tank. To make it easy to access the bulb,
turn the neck of the washer fluid filler pipe
as illustrated.
Right-hand side
Right-hand side: Use a screwdriver to
undo the clips on the air intake duct, then
remove the air intake duct.
2. Disconnect the electrical connector
from the bulb as pushing the tab.
Left-hand side
Right-hand side
3. Left-hand side: Remove the bulb
from the headlight assembly by turning it
counterclockwise.
Right-hand side: Remove the bulb from
Maintenance and service/Replacing bulbs
– CONTINUED –
11-45
