Suffolk C-type - Transmission Cover Preparation Guide

38

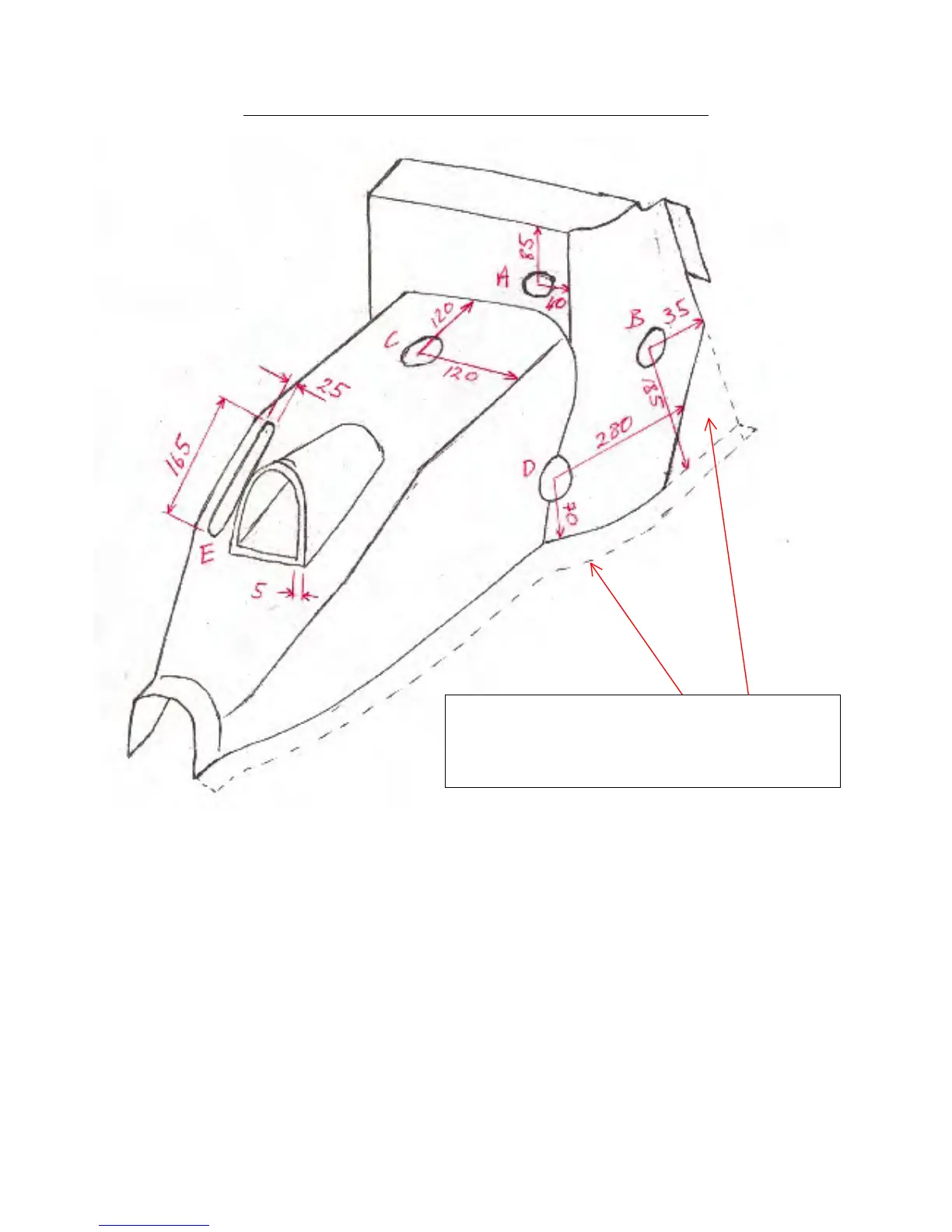

TRANSMISSION COVER PREPARATION GUIDE
A = STARTER MOTOR UPPER ACCESS HOLE - Ø40mm
B = STARTER MOTOR LOWER ACCESS HOLE - Ø40mm
C = O/D SWITCH ACCESS HOLE – Ø50mm
D = OIL FILLER / LEVEL ACCESS HOLE – Ø50mm
E = HANDBRAKE SLOT
Note: All dimensions in millimeters.
1. REMOVE BASE FLANGE
2. TRIM REAR SECTION TO SAME ANGLE
AS CHASSIS FOOT PLATE.
