Section 2
DESCRIPTION
8
2.1 INTRODUCTION
The Sullair 175,185 or 185H CFM Portable Air Com-
pressors offer superior performance and relia bility
along with a minimal amount of maintenance re-
quirements.
The compressor is equipped with a Sullair rotary
screw compressor unit. Compared to other com-
pressors, the Sullair is unique in mechanical reliabil-
ity and compressor durability. No inspection is re-
quired of the working parts w ithin the compressor
unit.
As you continue reading t his manual and come to
learn how the compressor operates and is cared for,
you will see how surprisingly easy it is to keep a Sull-
air compressor in top operating condition.
Read Section 5 (Maintenance) and learn how to
keep your compressor in top operating condition.
Should any problem or question arise which cannot
be answ ered in this text, contact your nearest Sullair
representative or the Sullair Corporation Service
Department.
2.2 DESCRIPTION OF COMPONENTS
Refer to Figures 2---1. The components and assem-
blies of the Sullair 175,185 or 185H CFM Portable Air
compressors are clearly shown. The package in-
cludes a heavy duty rotary screw air compressor,
a diesel engine, fuel tank, compressor inlet sys-
tem, compressor cooling and lubrication sys-
tem, compressor discharge system, capacity
control system, instrument panel and electrical
system.
A one---piece, low profile canopy offers improved
handling and mobility. Large side service doors pro-
vide easy access to all serviceable components.
This model meets EPA regulations for 76dbA at 7
meters (23 feet).
The Sullair air compressors are capable of deliver-
ing capacities as follows:
Model 175 175 CFM @ 100 PSIG (6.9 BAR)

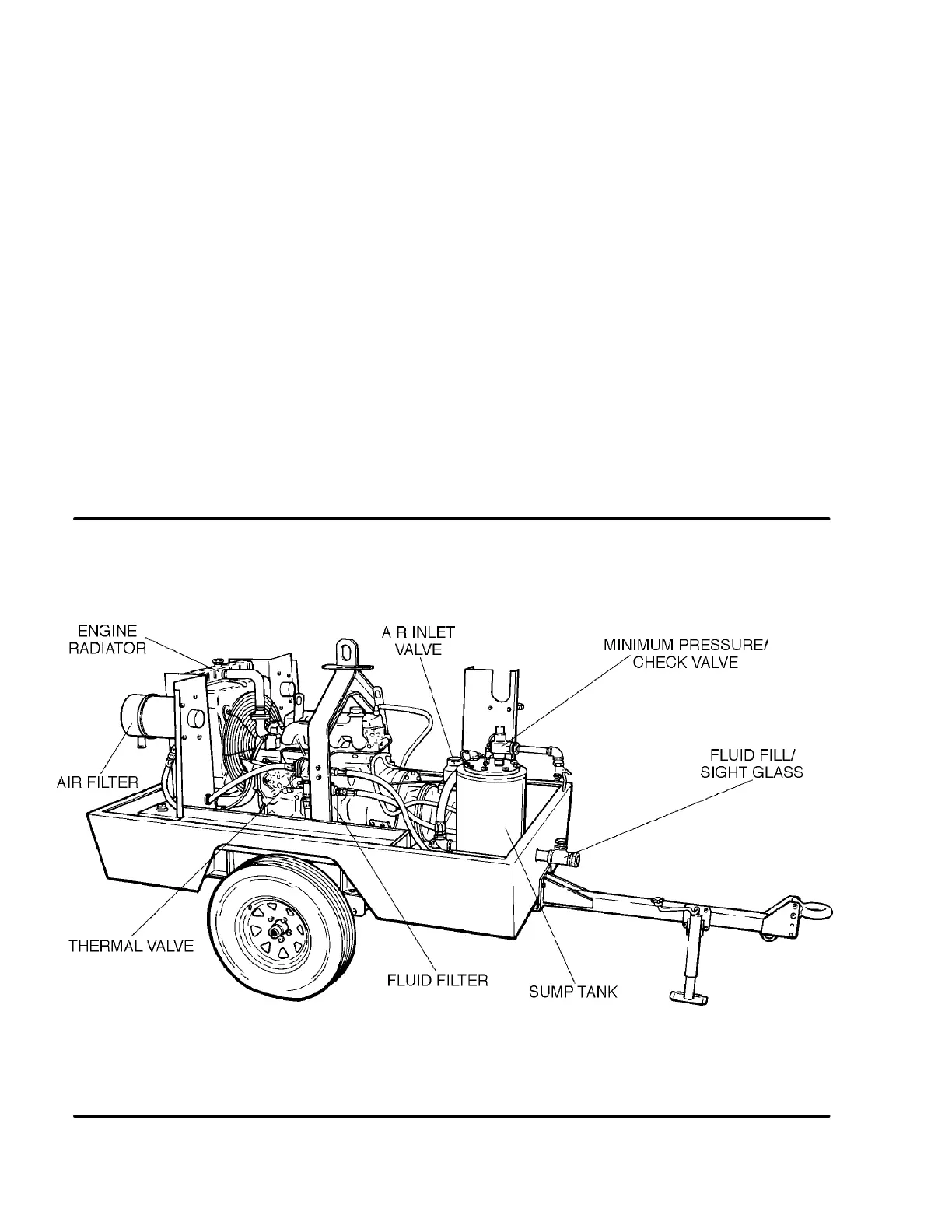

Figure 2 ---1 Sullair Rotary Screw Portable Air Compressor
