SECTION 6 TS20C USER MANUAL
117
6.10 PRESSURE REGULATOR
ADJUSTMENT
Refer to Figure 6-7. Start the compressor and adjust
the service valve to maintain service air pressure at
approximately 1 psi over its rated pressure. Turn the
inlet valve regulator adjusting screw until 100psi is
showing on the pressure gauge. Lock the adjusting
screw in place with the locknut. The regulator is now
properly set.

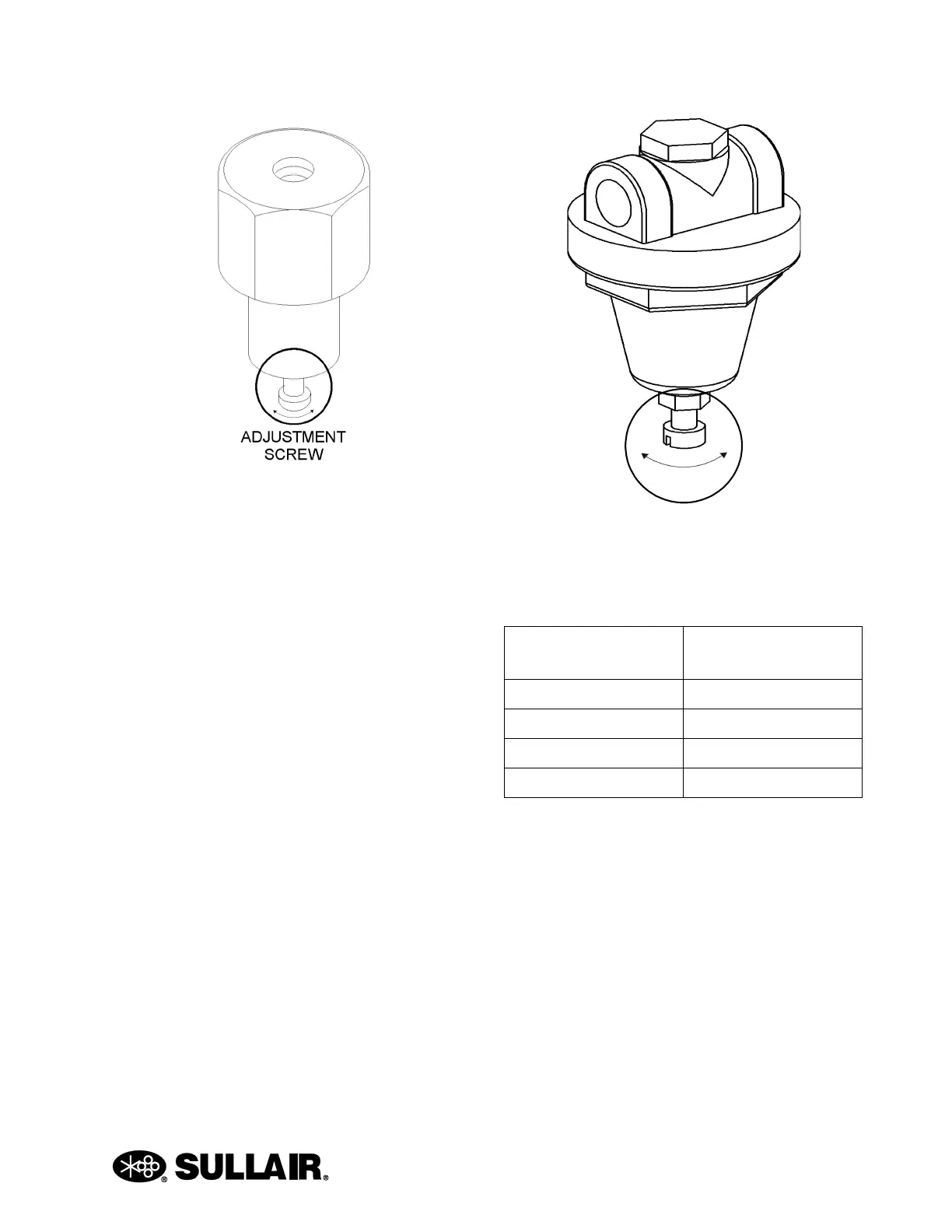

Figure 6-7: Pressure Regulator Adjustment
100/150HP
Rebuild Kit P/N 250019-453
Pressure Regulator 250017-280
Figure 6-8: Pressure Regulator Adjustment
200/250HP
PRESSURE
REGULATOR
REBUILD KIT P/N
02250014-608 041742
02250046-568 02250055-911
02250052-358 048409
02250186-328 02250187-734
ADJUSTMENT
SCREW
