TS20C USER MANUAL SECTION 6

114

ELEMENT REPLACEMENT

Element replacement is performed by reversing the

removal instructions. Make sure that the element is

fully seated into the housing.

6.8 SEPARATOR MAINTENANCE

Replace the separators when shown by the

Supervisor™ Controller indications, or after one year,

whichever comes first. The separators must be

replaced. DO NOT attempt to clean and reinstall the

separators.

SEPARATOR ELEMENT REPLACEMENT

Refer to Figure 6-5. The separators must be changed

when indicated by the Supervisor™ Controller or

once a year, whichever occurs first. Use the following

procedure below to change the separators.

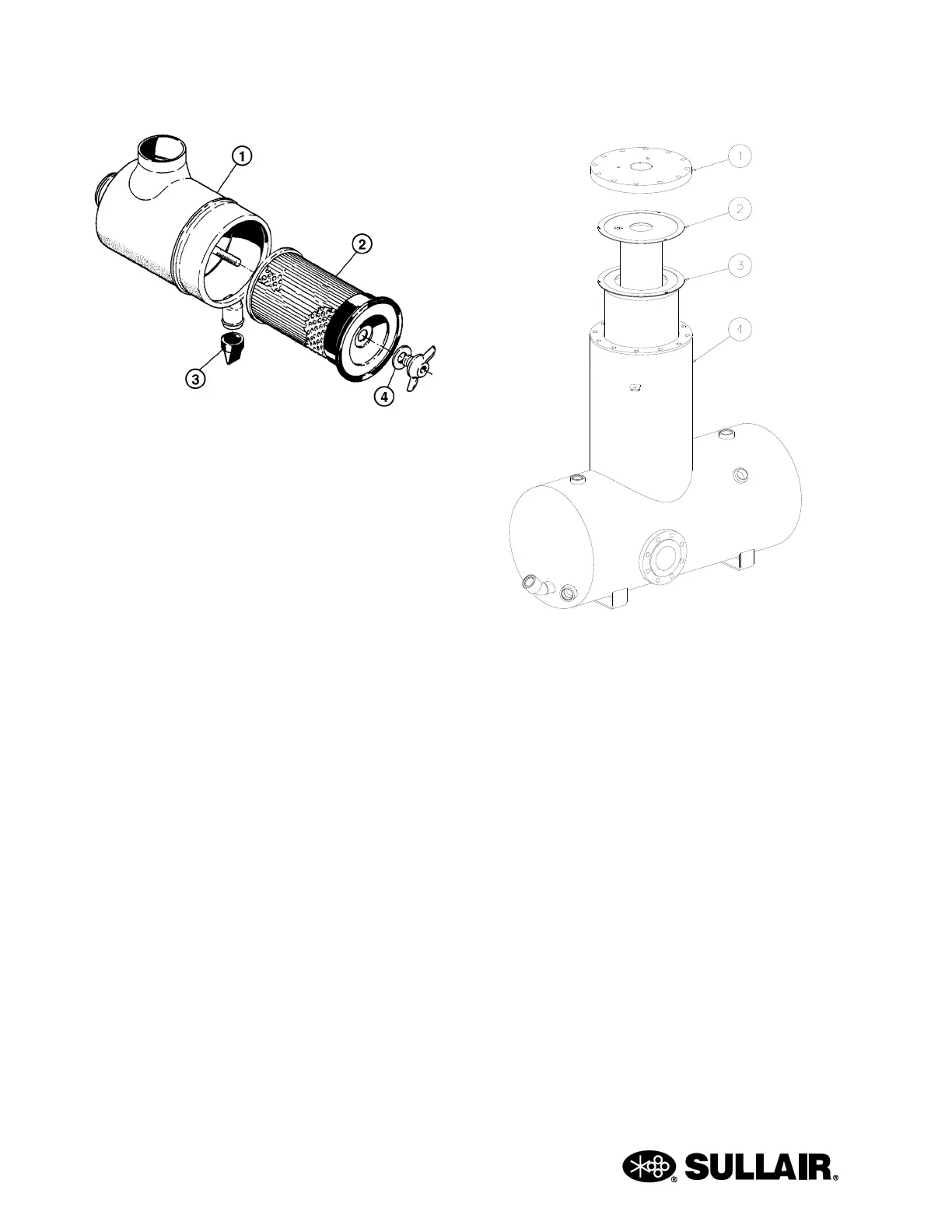

Figure 6-4: Air Filter Assembly, 200-250

1. Housing

2. Element (I)

3. Dust Collector

4. Sealing Washer

(I) Element Replacement Kit P/N 02250135-155

Figure 6-5: Separator Assembly

1. Cover

2. Cover Gasket (I)

3. Separators (I)

4. Sump Tank

(I) Primary Separator Replacement Kit P/N

02250034-122

(II) Secondary Separator Replacement Kit P/N

02250034-134
