TS20C USER MANUAL SECTION 3
74
3.4 MOTOR SPECIFICATIONS
3.5 MOTOR SPECIFICATIONS
3.6 LUBRICATION GUIDE
Refer to Figure 3-1 for the fluid fill port location.
Sulliar's series compressors are filled and tested at
the factory with (20 GAL) Sullube lubricant.

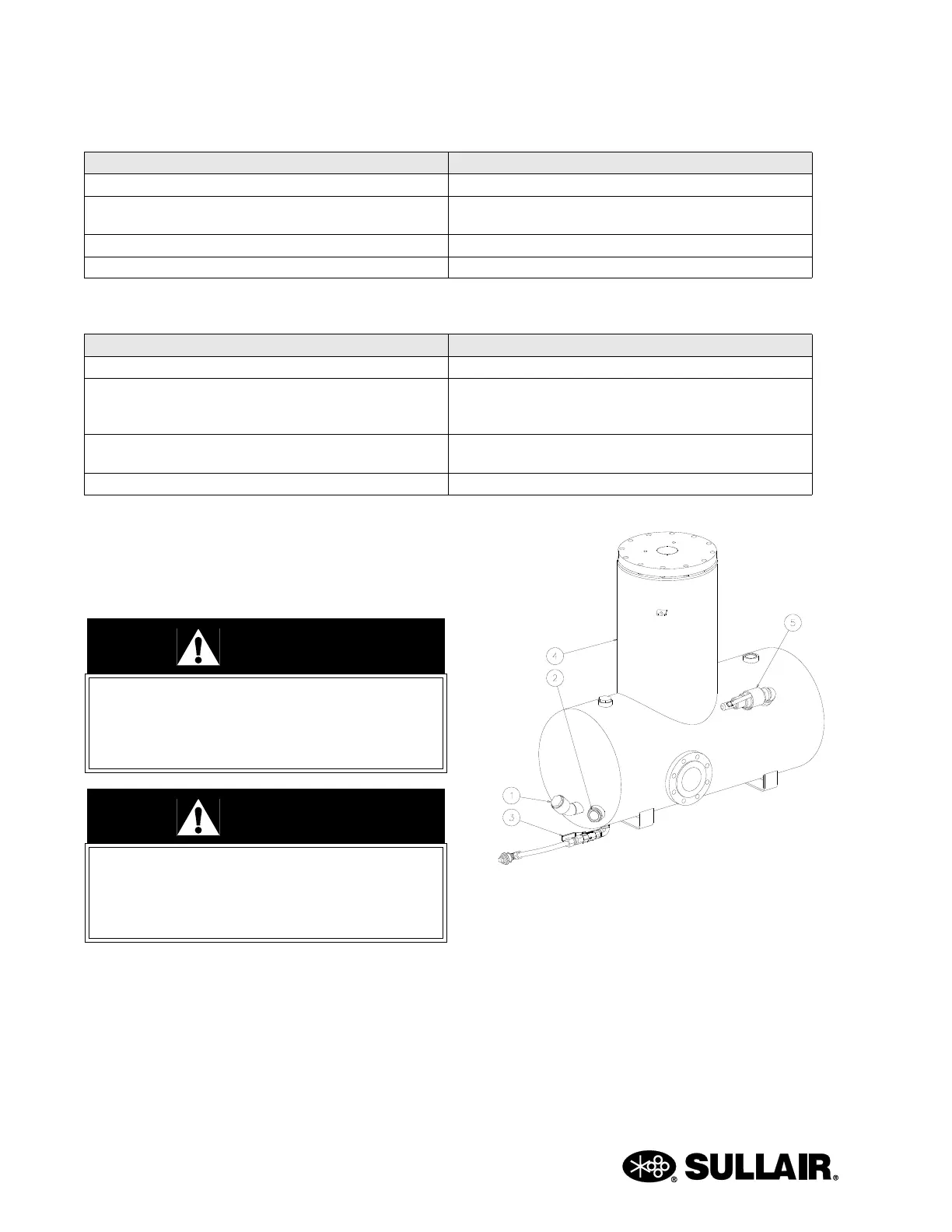

Figure 3-1: Fluid Fill Location
1. Fluid Fill Port
2. Fluid Level Sight Glass
3. Fluid Drain Valve
4. Air/Fluid Separator Tank
5. Relief Valve
MOTOR: (50 Hz Compressors) STANDARD MODELS:
Size: 100-200 HP/75-150kW
Type:
Open Dripproof, Three Phase, 50 Cycles, A.C., 104ºF
(40ºC) Maximum Ambient Temperature
Starter: 400V Full Voltage Magnetic
Speed: 1500 RPM
MOTOR: (60 Hz Compressors) STANDARD MODELS:
Size: 100-250 HP/75-187kW
Type:
Open Dripproof, 460V, Three Phase,60 Cycles, A.C.,
104ºF (40ºC) Maximum Ambient Temperature, TEFC
also available
Starter:
460V Full Voltage Magnetic
Options Available: 200 to 230 and 575V
Speed: 1780 RPM
CAUTION
Contamination of compressor fluids with
mineral oil or other fluids can cause foam-
ing, filter plugging, or orifice line obstruc-
tion.
CAUTION
Do not mix different types of lubricants.
Mixing lubricants can cause malfunctions
or compressor damage: will void the com-
pressor’s warranty.
