F Series Manual
11

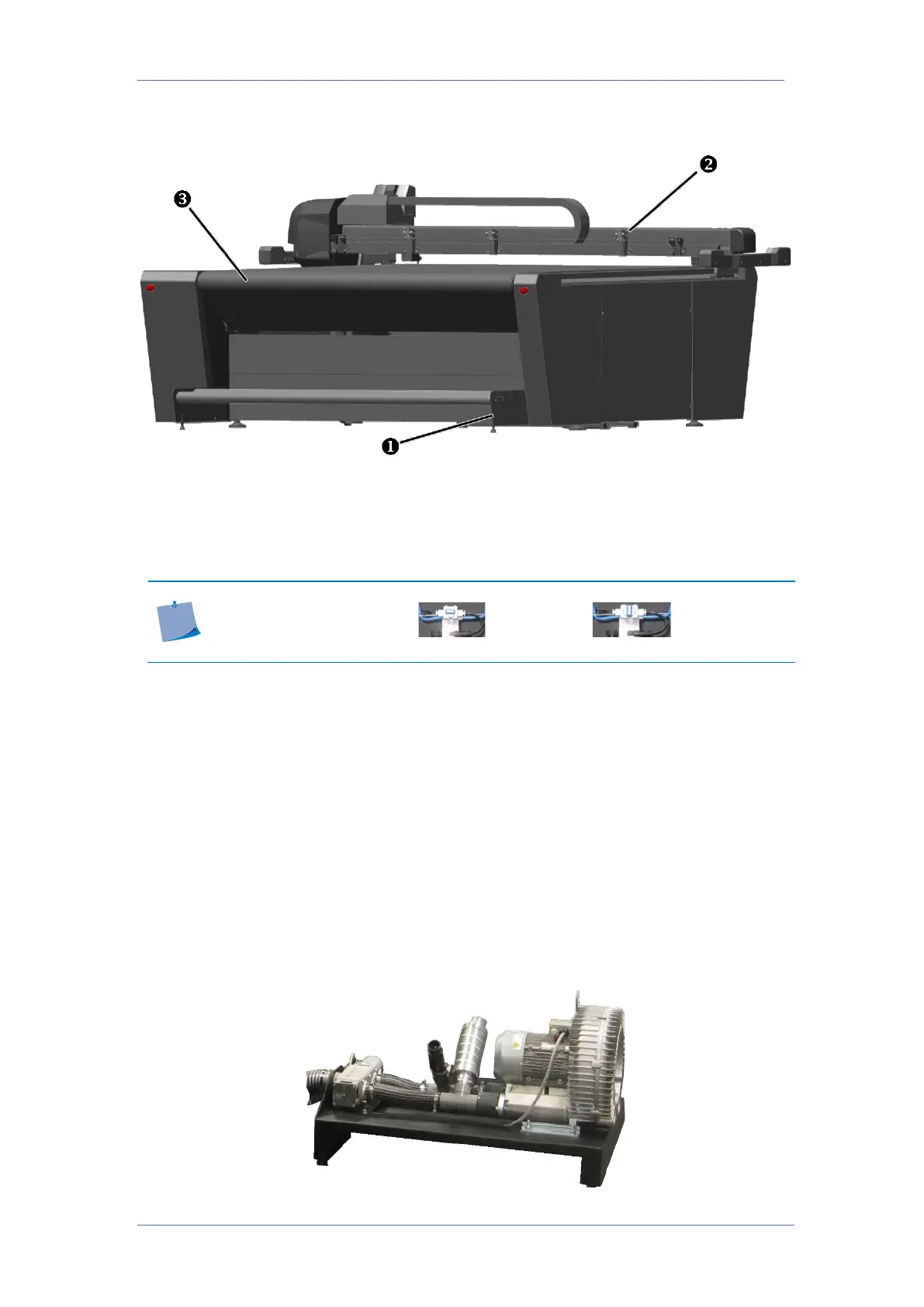

1.2.2 Rear View
1. Roll support: Media support bars and a set of core holders for loading roll material.
2. Pneumatic clamps: Pneumatic media advance system. It clamps the conveyor belt and
holds the media down while pulling it forward in order to work continuously, in panels or
for multiple jobs.
NOTE: The clamps that hold the media down can be moved from the left to the
right and can be enabled ( ) or disabled ( ) individually by
turning the handle on top of each clamp.
3. Conveyor belt: The conveyor system is needed for feeding the media when the cutout tool
is used.
General Directional information:
o Front right of the machine: Where the on/off switch is located (this determines
automatically the left and back of the machine).
o X-axis: From front to back.
o Y-axis: From right to left.
o Origin: The origin is situated on the right side at the front.
1.2.3 Larger models
For the larger models, the vacuum pump(s) are not located under the table, but they can be
set either next to or at the distance (for noise reduction). Some larger models have one
external pump, others have two (depending on the size of the table).
