Service Manual SummaSign

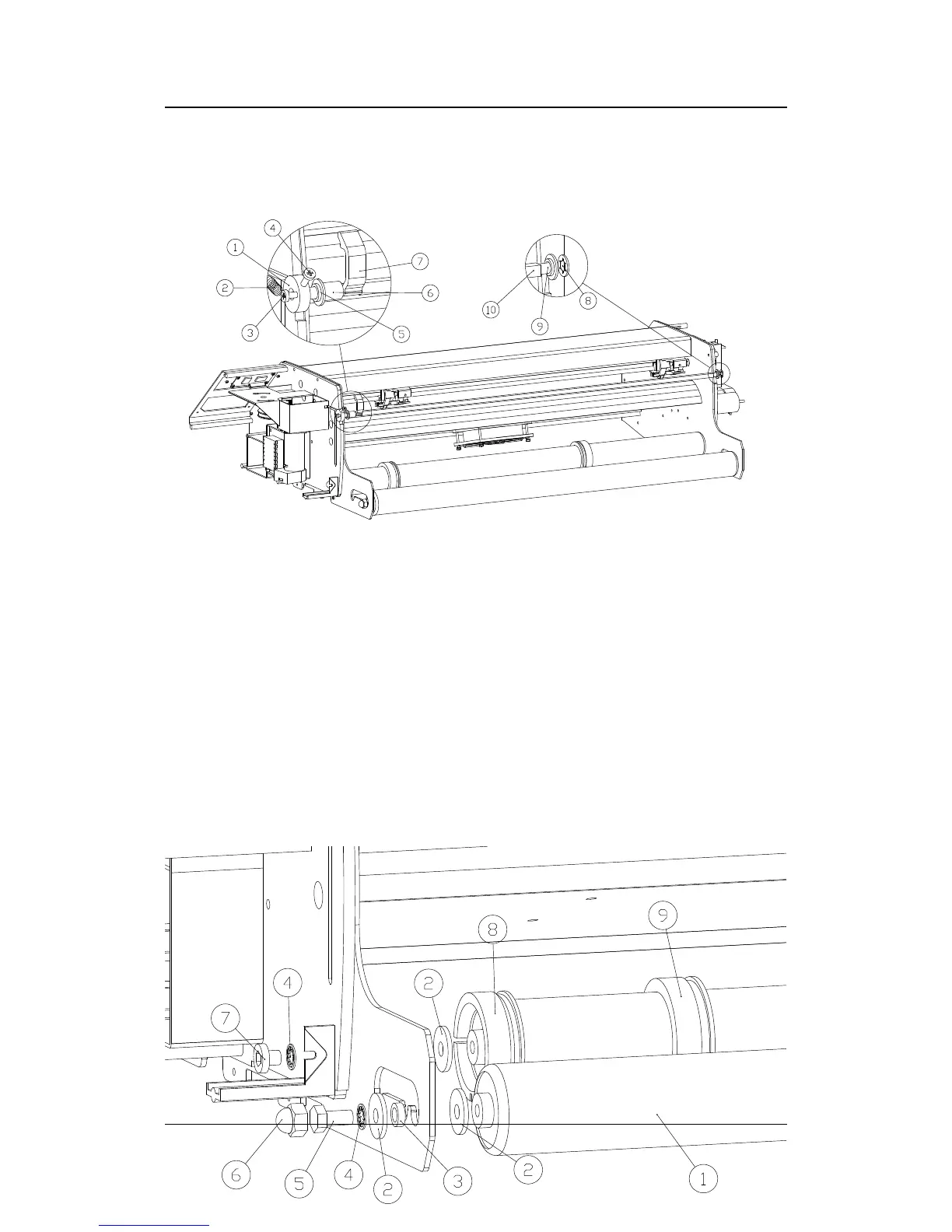

Figures 6-7
1 391-112
391-405
391-178
base extension plate 610/750
base extension plate 1010
base extension plate 1300
2 391-317
391-705
391-735
391-414
391-804
drive drum 610
drive drum 750 old (4 small sleeves)
drive drum 750 new (5 small sleeves)
drive drum 1010
drive drum 1300
3 ND5000-9695 screw M4x20
4 391-113
391-410
391-187
bottom plate 610/750
bottom plate 1010
bottom plate 1300
5 391-320
391-803
fan assy 610/750
fan assy 1010/1300
6 MF0067 guard fan
7 ND5000-9315 flatwasher M4
8 ND5000-9606 screw M4x45
1 391-153 cam detection ring
2 ND5000-9371 spring
3 ND5000-9694 screw M4x10
4 ND5000-9332 screw M4x12
5 ND5000-9613 washer 08x8x10
6 ND5000-9636 bus 8.2,12,15
7 391-138 lever pinch roller
8 ND5000-9614 starlock 8
9 ND5000-9613 washer 08x8x10
10 391-125
391-402
391-174
pinch roller bar 610/750
pinch roller bar 1010
pinch roller bar 1300
