SummaSign Service Manual

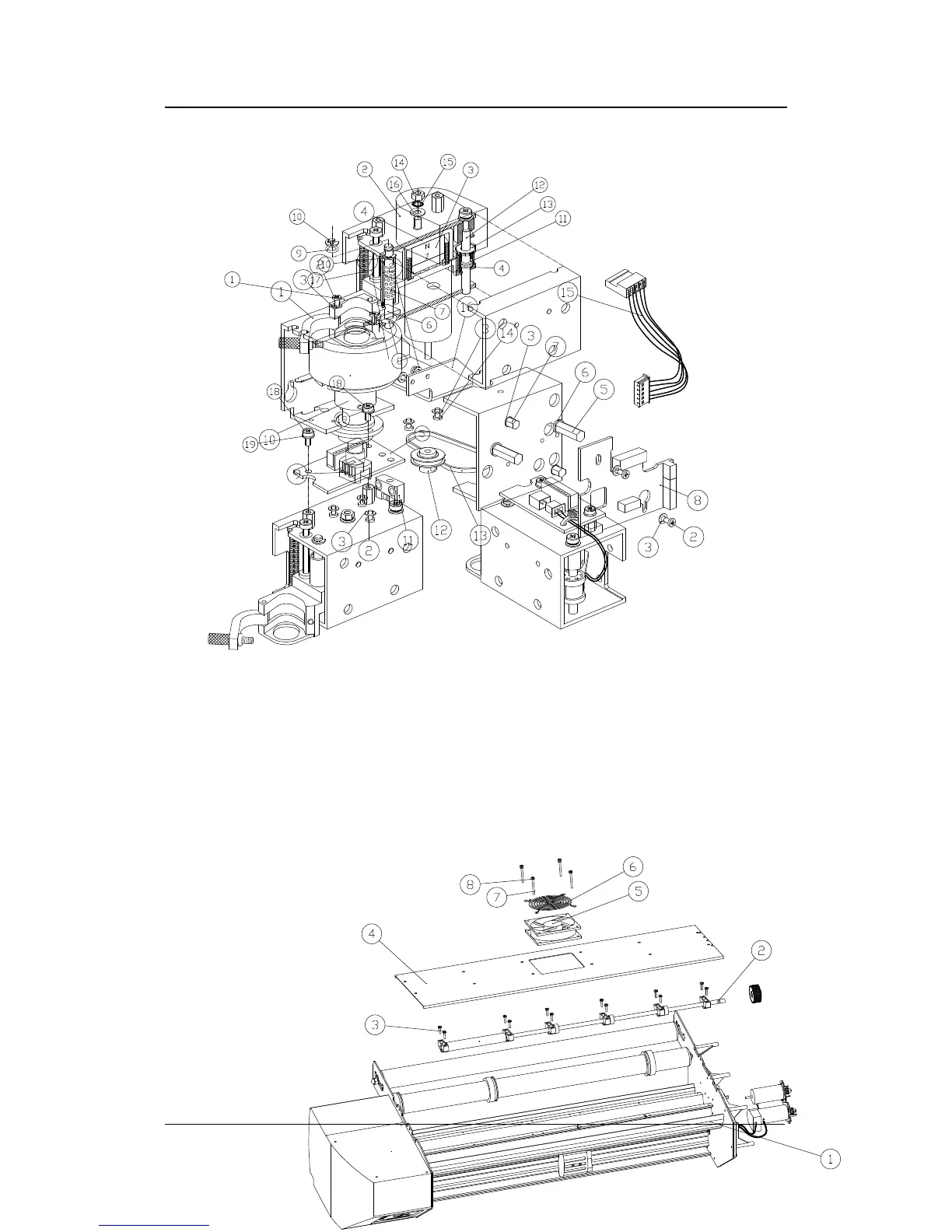

6-6 Figures
1 391-632 box tang head
2 ND5000-9667 screw M2x4
3 ND5000-9267 flatwasher M2
4 391-655 assy motor tang head
5 ND5000-9665 stand off M3
6 MH0624 washer
7 ND5000-9663 stand off M2
8 391-662 pcb tang head
9 391-657 assy main shaft
10 391-658 assy up/down (coil)
11 391-627 nose piece (long)
12 391-613 pulley
13 MB9125 belt
14 ND5000-9666 screw M2x4
15 391-656 assy wire encoder
16 391-628 motor bracket
17 391-661 magnet assy
1 391-201 assy up-down
2 391-206 assy up-down support
3 391-209 magnet assy
4 391-213 bus mount assy
5 391-216 pcb drag head
6 391-215 guiding shaft
7 ND5000-9586 roller cage 4/6.20
8 MR9002 o-ring 4x2
9 ND5000-9596 o-ring 4x1
10 ND5000-9382 truarc 3.2
11 ND5000-9585 roller cage 4/6/2.5
12 ND5000-9584 shaft 4x43.8
13 ND5000-9583 zackenring ZJ10
14 ND5000-0856 nut M3
15 ND5000-9587 external lockwasher M3
16 ND5000-0328 flatwasher M3
17 ND5000-9582 spring .32x4.32x19
18 ND5000-9581 screw M2.5x6
19 ND5000-9558 flatwasher M2.5
