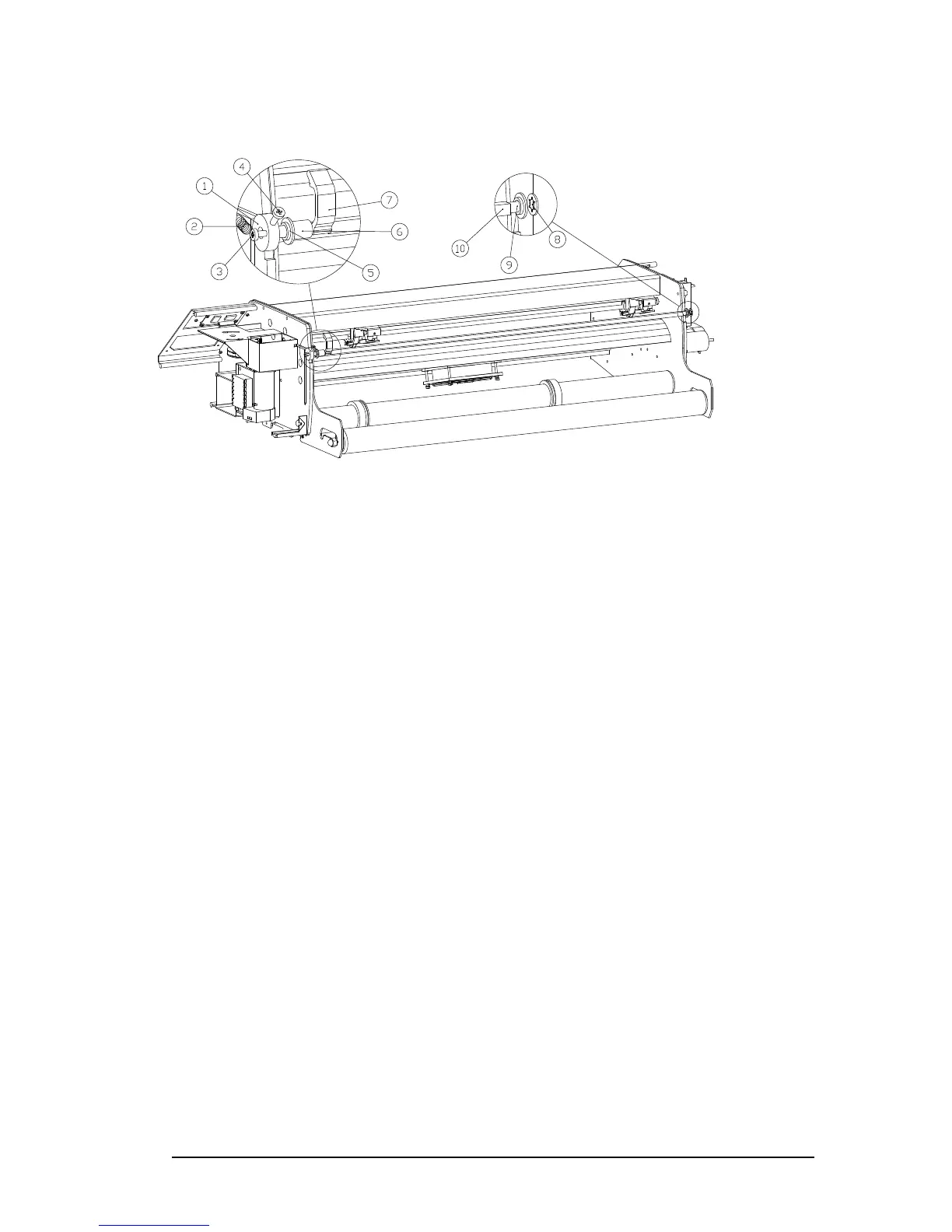

Lever play C-2
1 cam detection ring 6 bus 8.2,12,15
2 spring 7 lever pinch roller
3 screw M4x10 8 starlock 8
4 screw M4x12 9 washer 08x8x10
5 washer 08x8x10 10 pinch roller bar
