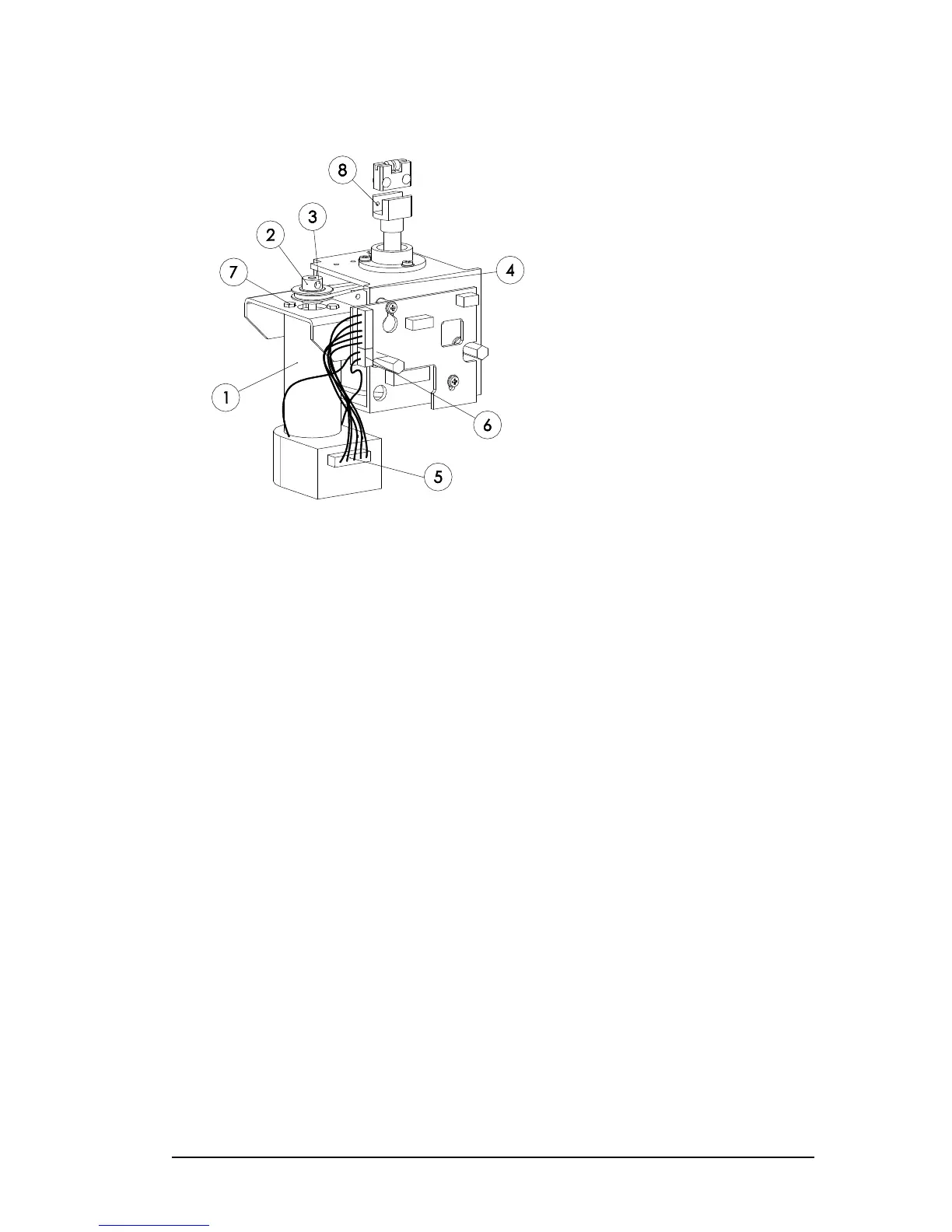

Changing the motor on a T-head D-2
1 motor assy
2 motor pulley
3 setscrew on motor pulley
4 check belt tension
5 disconnect encoder here
6 disconnect motor here
7 hex screws
8 holes facing rear of head
