Service Manual SummaSign
In order to get acquainted with your SummaSign Pro cutter, read the following
description of the front panel controls and components.

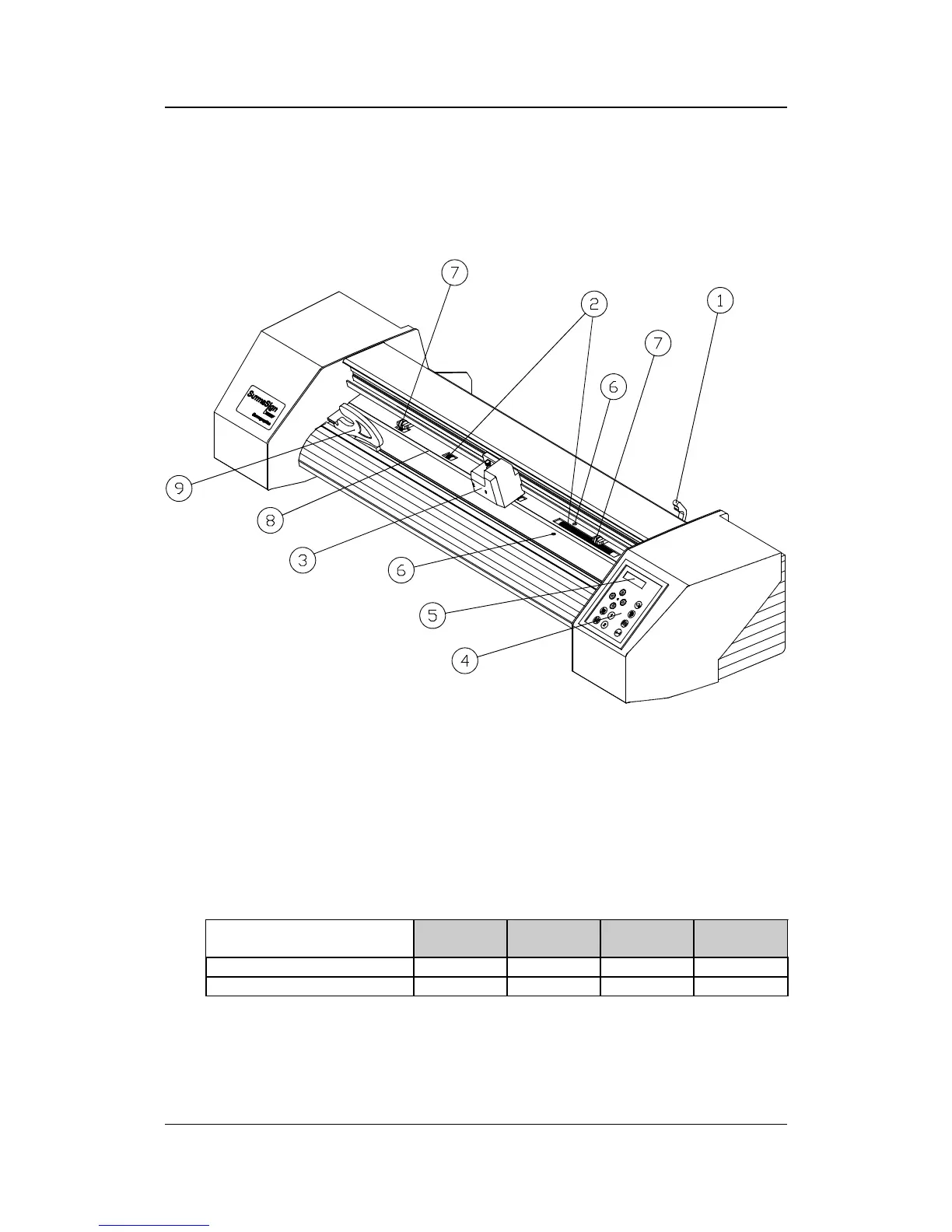

Figure 1-2 shows the location of the main components.
FIGURE 1-2 :
SUMMASIGN PRO T-SERIES CUTTERS, FRONT VIEW
1. Pinch roller lever arm : - This lever is used to raise and lower the pinch rollers
(Media loading is discussed in Section 1.8).
2. Media Drive Sleeves : - The media drive sleeves move the media only when the
pinch rollers are in the ‘down’ position.
The following table lists the number of media drive sleeves installed on each
model of the Pro T-series cutters.
Number of media drive
sleeves
T610 Pro T750 Pro T1010 Pro T1300 Pro
Short sleeve 3 4 6 7
Long sleeve 1 1 1 1
3. Tool Carriage : - The tool carriage is the mount for the tangential cutting head.
4. Control Panel : - The control panel contains 12 keys. All cutter activity can be
initiated from the control panel. This includes initiating remote mode for computer
Introduction I-5
