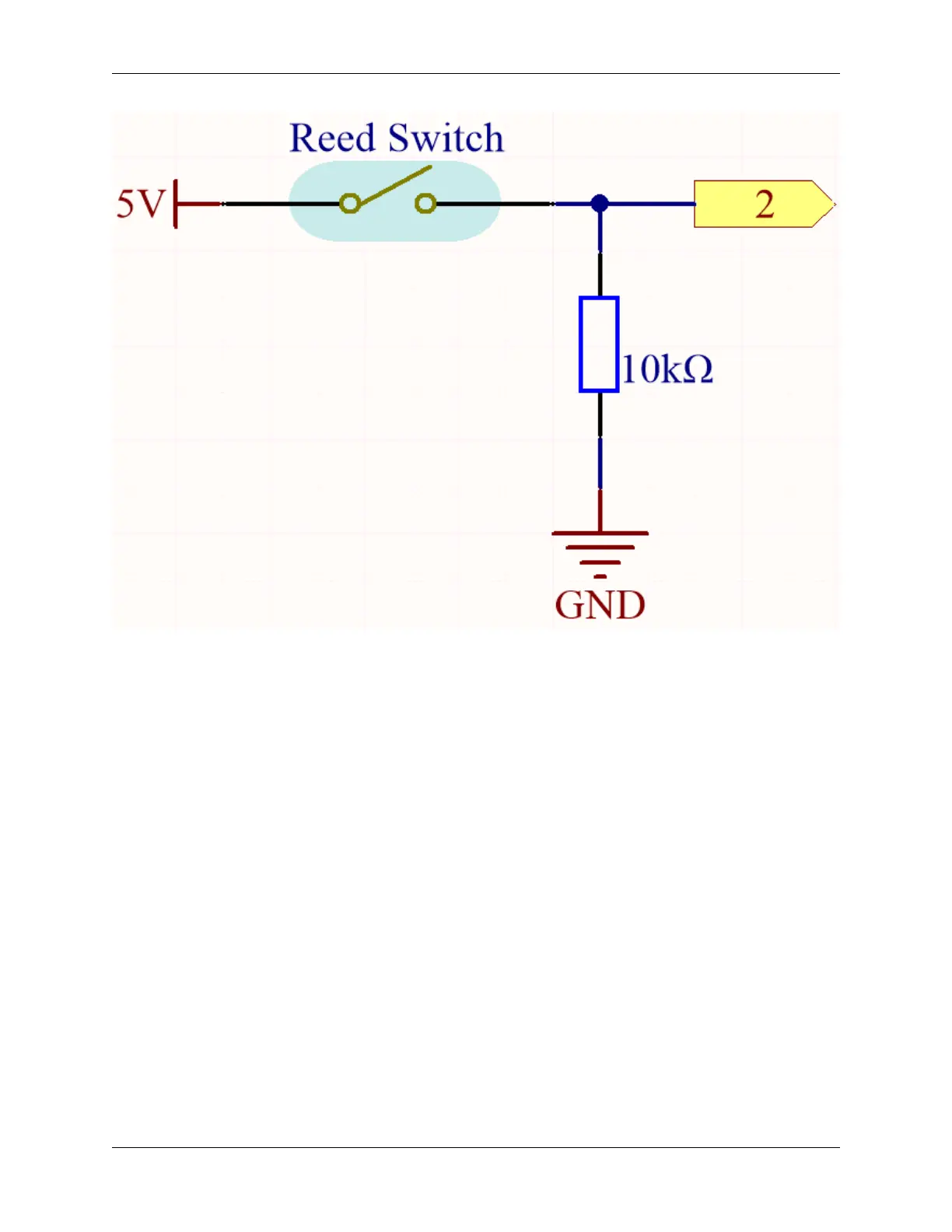

By default, pin 2 is low; and will go high when the magnet is near the reed switch.
The purpose of the 10K resistor is to keep the pin 2 at a steady low level when no magnet is near.
Wiring
4.3. 3. Digital Read 111
