SunFounder 3in1 Kit
1.22 Photoresistor
A photoresistor or photocell is a light-controlled variable resistor. The resistance of a photoresistor decreases with
increasing incident light intensity; in other words, it exhibits photo conductivity.
A photoresistor can be applied in light-sensitive detector circuits and light-activated and dark-activated switching cir-
cuits acting as a resistance semiconductor. In the dark, a photoresistor can have a resistance as high as several megaohms
(M), while in the light, a photoresistor can have a resistance as low as a few hundred ohms.

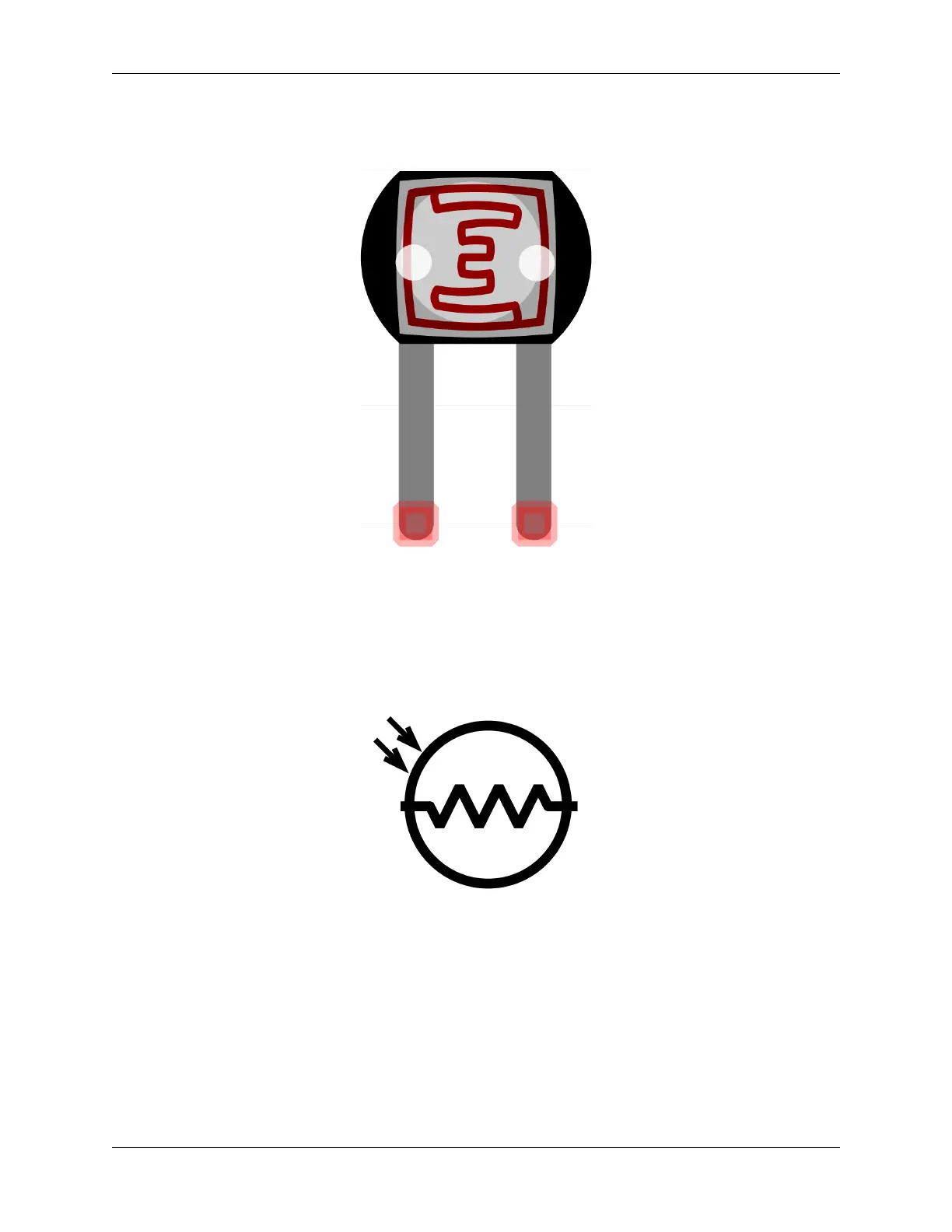

Here is the electronic symbol of photoresistor.
• Photoresistor - Wikipedia
Example
• 4.2 Feel the Light (Basic Project)
• 5. Home Environment Monitoring (IoT Project)
• 6. Plant Monitor (IoT Project)
42 Chapter 1. Components List and Introduction
