1.13 TT Motor

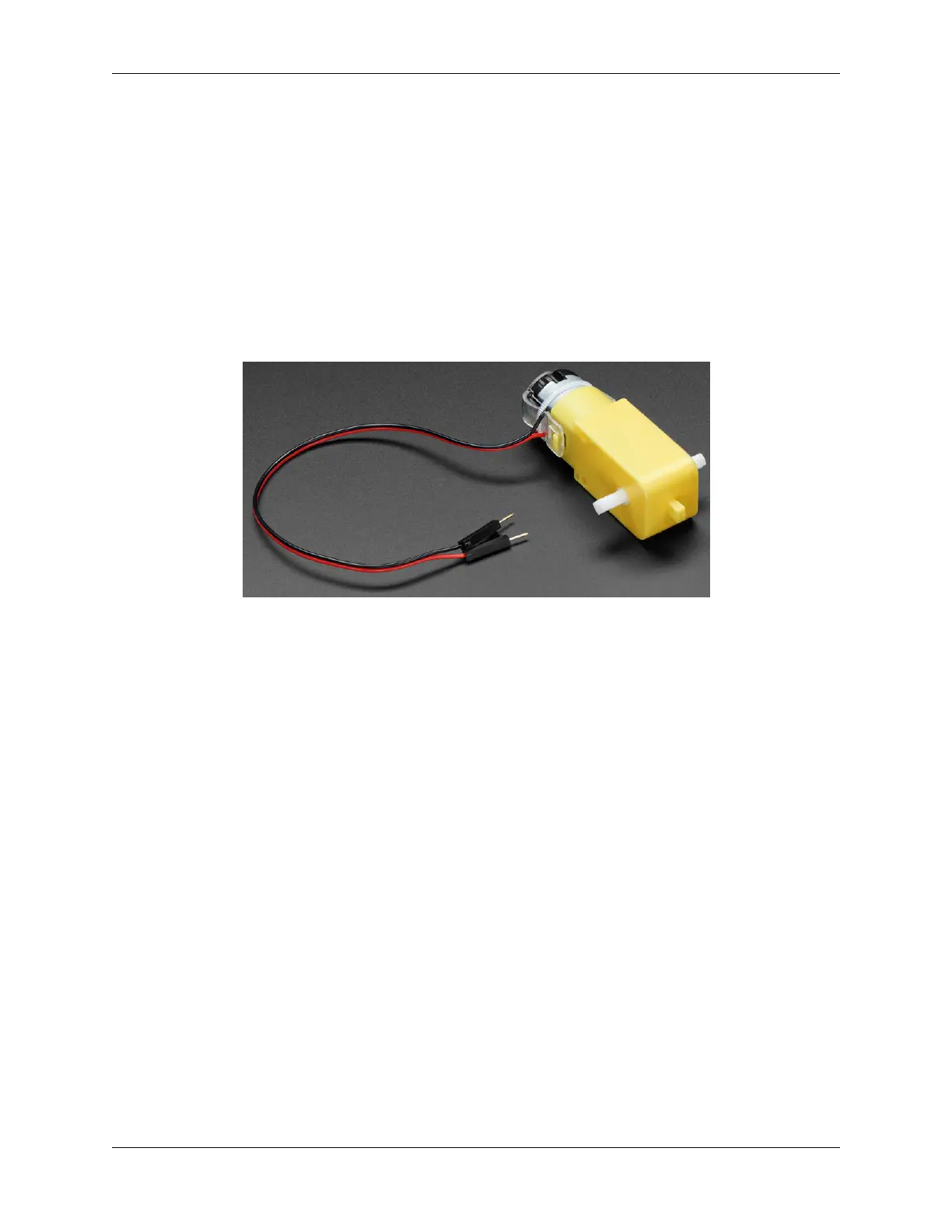

This is a TT DC gearbox motor with a gear ratio of 1:48, it comes with 2 x 200mm wires with 0.1” male connectors
that fit into a breadboard. Perfect for plugging into a breadboard or terminal block.
You can power these motors with 3 ~ 6VDC, but of course, they will go a little faster at higher voltages.
Note that these are very basic motors with no built-in encoder, speed control or position feedback. The voltage goes
in and the spin comes out. There will be variation from motor to motor, so if you need precise motion, you’ll need a
separate feedback system.
Technical Details
• Rated Voltage: 3~6V
• Continuous No-Load Current: 150mA +/- 10%
• Min. Operating Speed (3V): 90+/- 10% RPM
• Min. Operating Speed (6V): 200+/- 10% RPM
• Stall Torque (3V): 0.4kg.cm
• Stall Torque (6V): 0.8kg.cm
• Gear Ratio: 1:48
• Body Dimensions: 70 x 22 x 18mm
• Wires Length: 200mm & 28 AWG
• Weight: 30.6g
Dimensional Drawing
1.13. TT Motor 27
