SunFounder 3in1 Kit
Example
• 3.1 Reading Button Value (Basic Project)

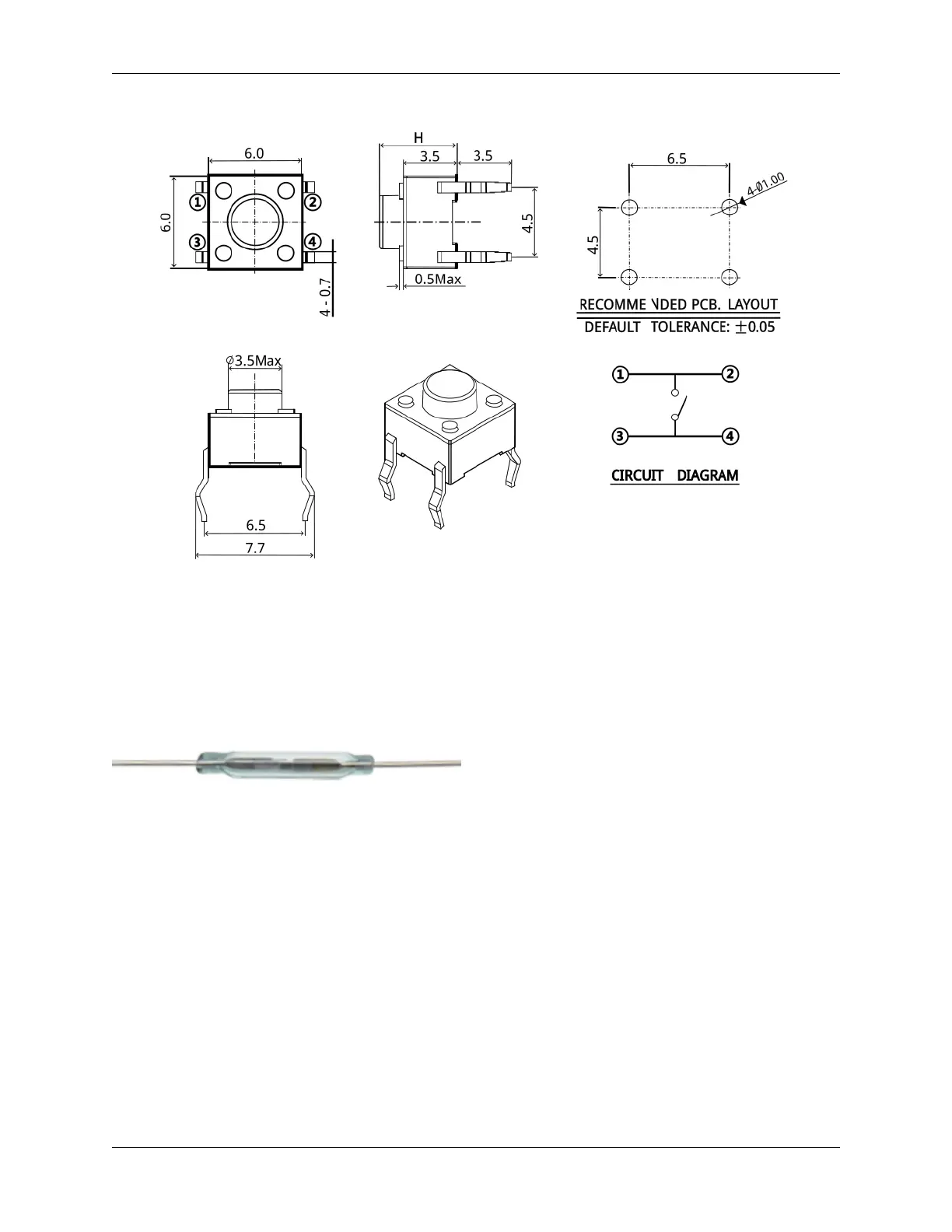

1.18 Reed Switch
The Reed Switch is an electrical switch that operates by means of an applied magnetic field. It was invented by Walter
B. Ellwood of Bell Telephone Laboratories in 1936 and patented in the United States on June 27, 1940, under patent
number 2264746.
The principle of operation of a reed switch is very simple. Two reeds (usually made of iron and nickel, two metals) that
overlap at the end points are sealed in a glass tube, with the two reeds overlapping and separated by a small gap (only
about a few microns). The glass tube is filled with a high purity inert gas (such as nitrogen), and some reed switches
are made to have a vacuum inside to enhance their high voltage performance.
The reed acts as a magnetic flux conductor. The two reeds are not in contact when not yet in operation; when passing
through a magnetic field generated by a permanent magnet or electromagnetic coil, the applied magnetic field causes
the two reeds to have different polarities near their endpoints, and when the magnetic force exceeds the spring force of
the reeds themselves, the two reeds will be drawn together to conduct the circuit; when the magnetic field weakens or
disappears, the reeds are released due to their own elasticity, and the contact surfaces will separate to open the circuit.
1.18. Reed Switch 35
