5.2 1. Move

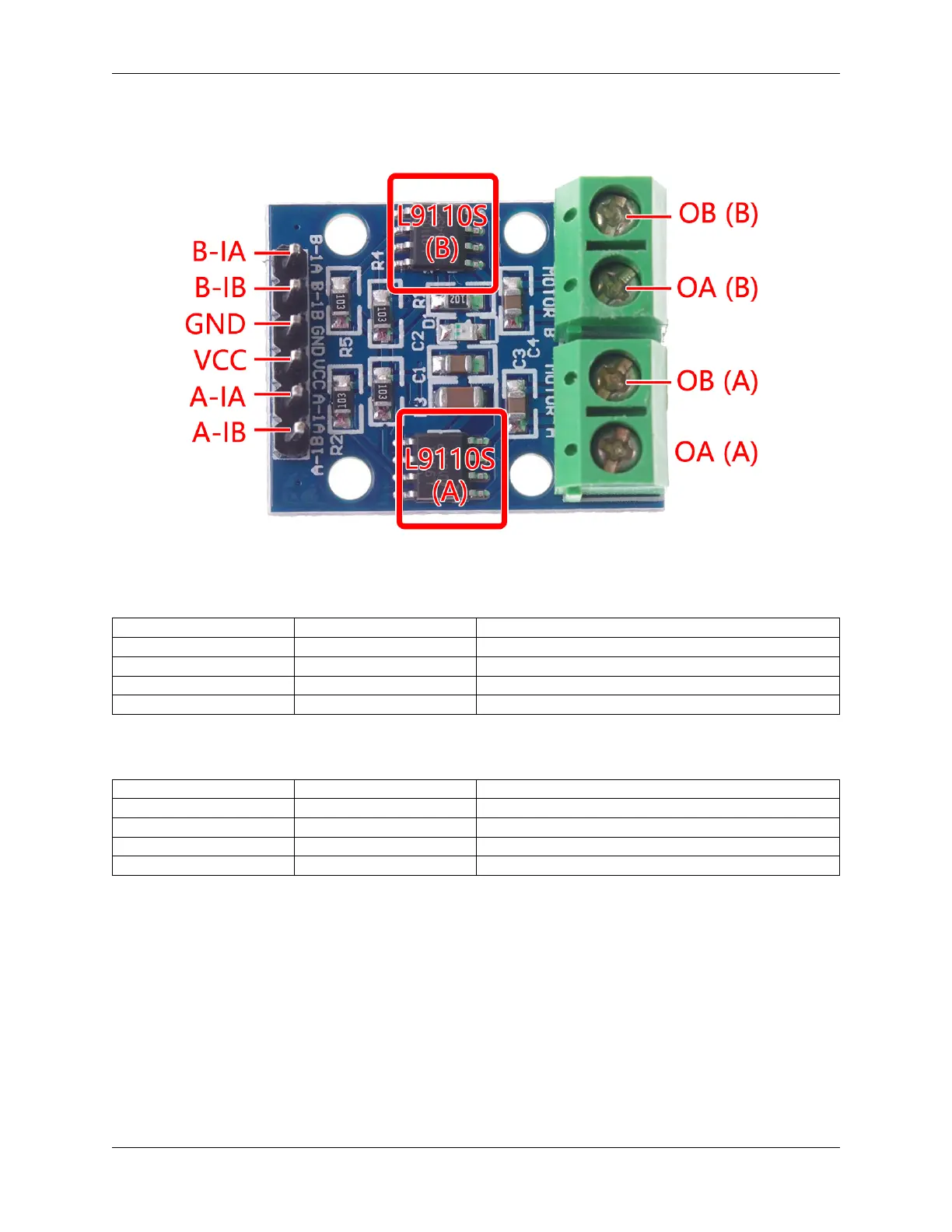

Before we start programming, let’s review the working principle of L9110 module.
Here is the truth table of Motor B:
B-1A B-1B The state of Motor B
1 0 Rotate clockwise
0 1 Rotate counterclockwise
0 0 Brake
1 1 Stop
Here is the truth table of Motor A:
A-1A A-1B The state of Motor B
1 0 Rotate clockwise
0 1 Rotate counterclockwise
0 0 Brake
1 1 Stop
• L9110 Motor Driver Module
Forward
Now let’s connect the input of L9110 module directly to 12V and GND respectively to make the car move.
1. Connect R4 board, L9110 module and 2 motors.
