COMPONENT INTRODUCTION PURCHASE LINK
Arduino Uno R4 Minima -
Jumper Wires
Line Tracking Module

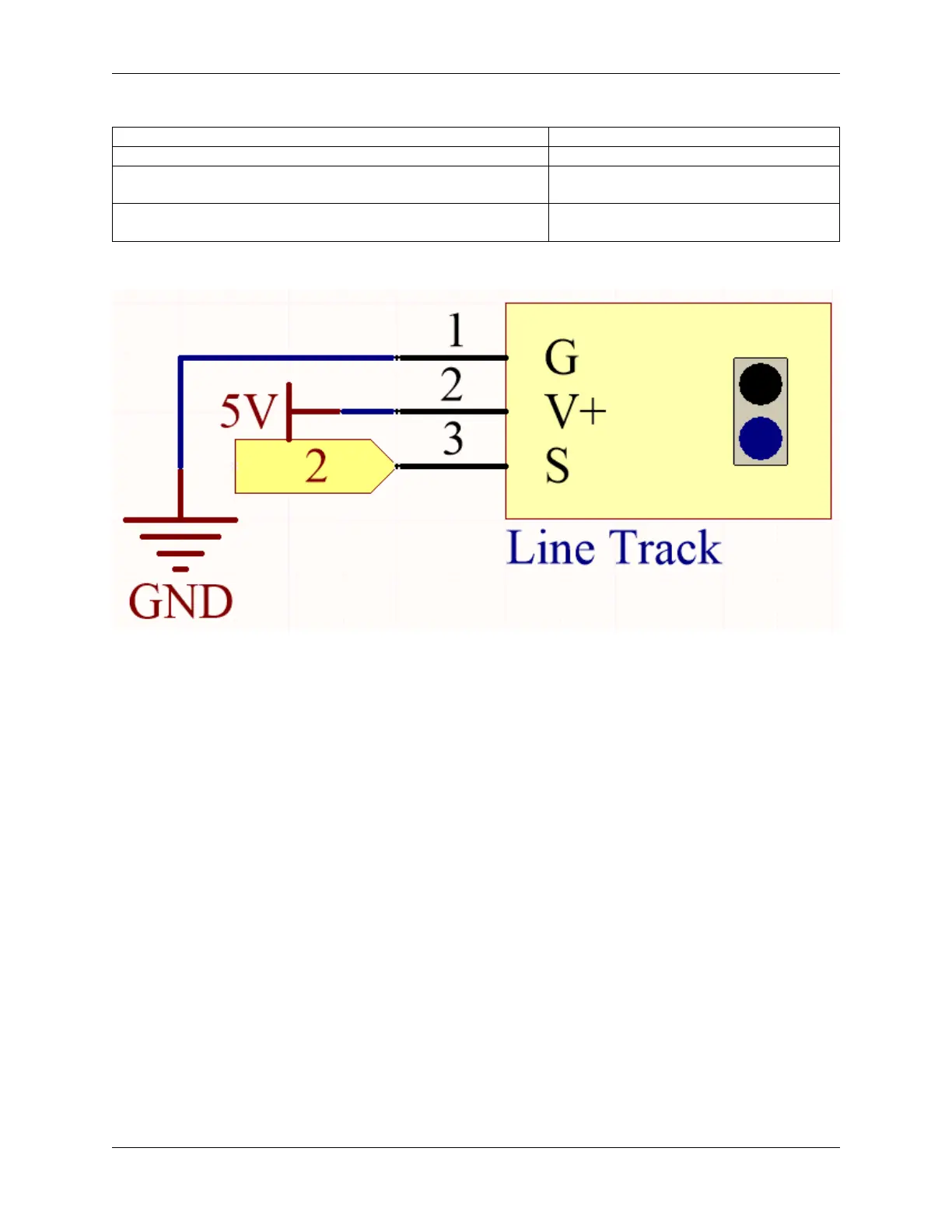

Schematic
The digital pin 2 is used to read the signal of line track module. We get the VCC of the module connected to 5V, GND
to GND, OUT to digital pin 2.
Wiring
