11

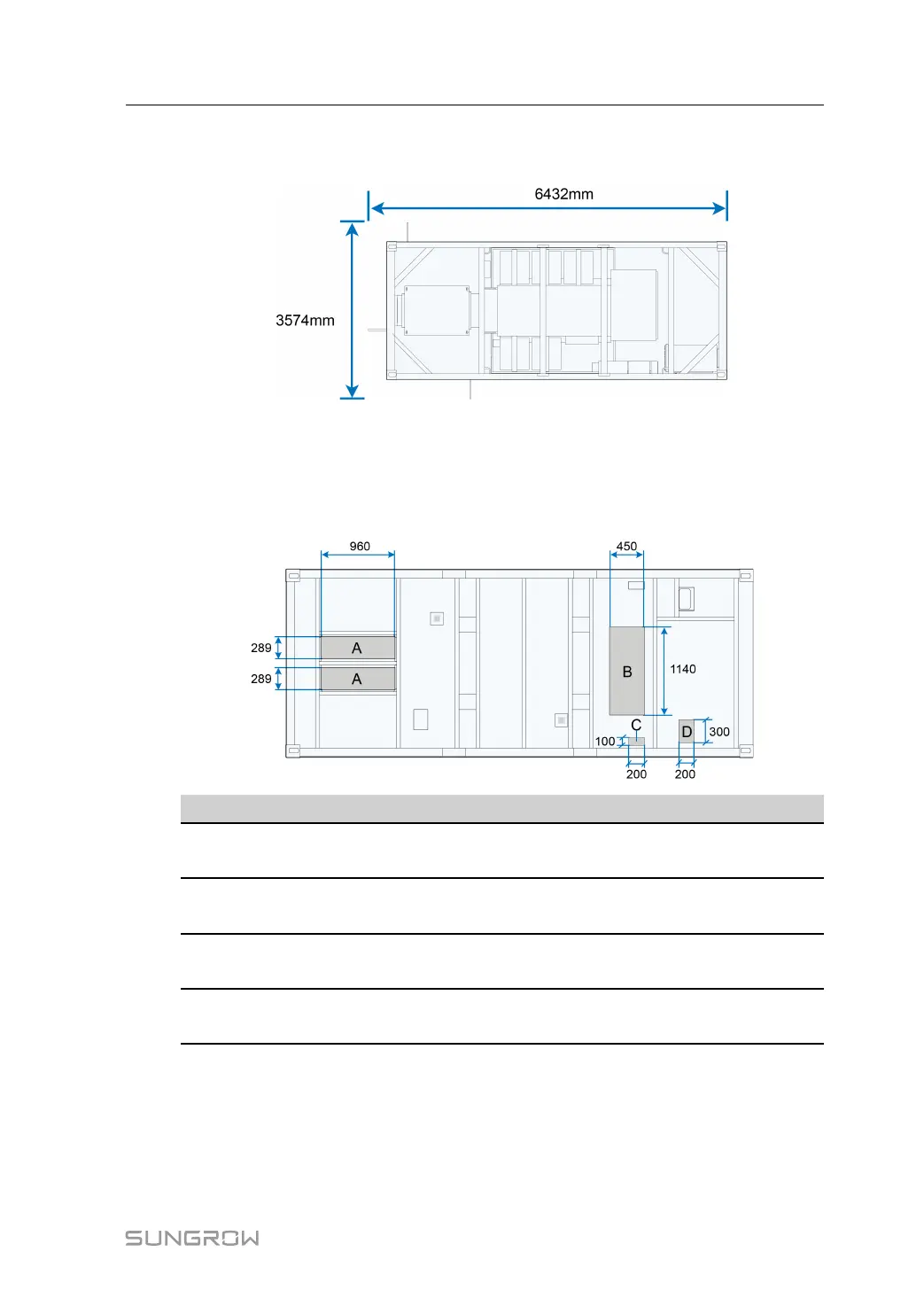

The Clearance Requirement
The clearances around the MV Station should be sufficient for the doors to be opened .
3.3 Internal Design
3.3.1 Cable Entries
Top View
No. Name
Description
A LV side cable inlet
All LV side cables connecting the MV Station enter
the interior through these inlets.
B MV side cable inlet
All MV side cables connecting the MV Station
enter the interior through these inlets.
C
Communication
cable inlet
Communication cables connecting external
devices enter the interior through this entrance.
D
Power distribution
cables inlet
Power distribution cable connecting the external
equipment enters the interior through this entrance.
3.3.2 LV Cabinet
The LV cabinet is located at the LV room inside the MV Station. It is used to converge and
transmit low voltage from the inverter to the step-up transformer, and feed it into the MV grid.
Figure below shows the front and back layout.
System Manual 3 Product Description
