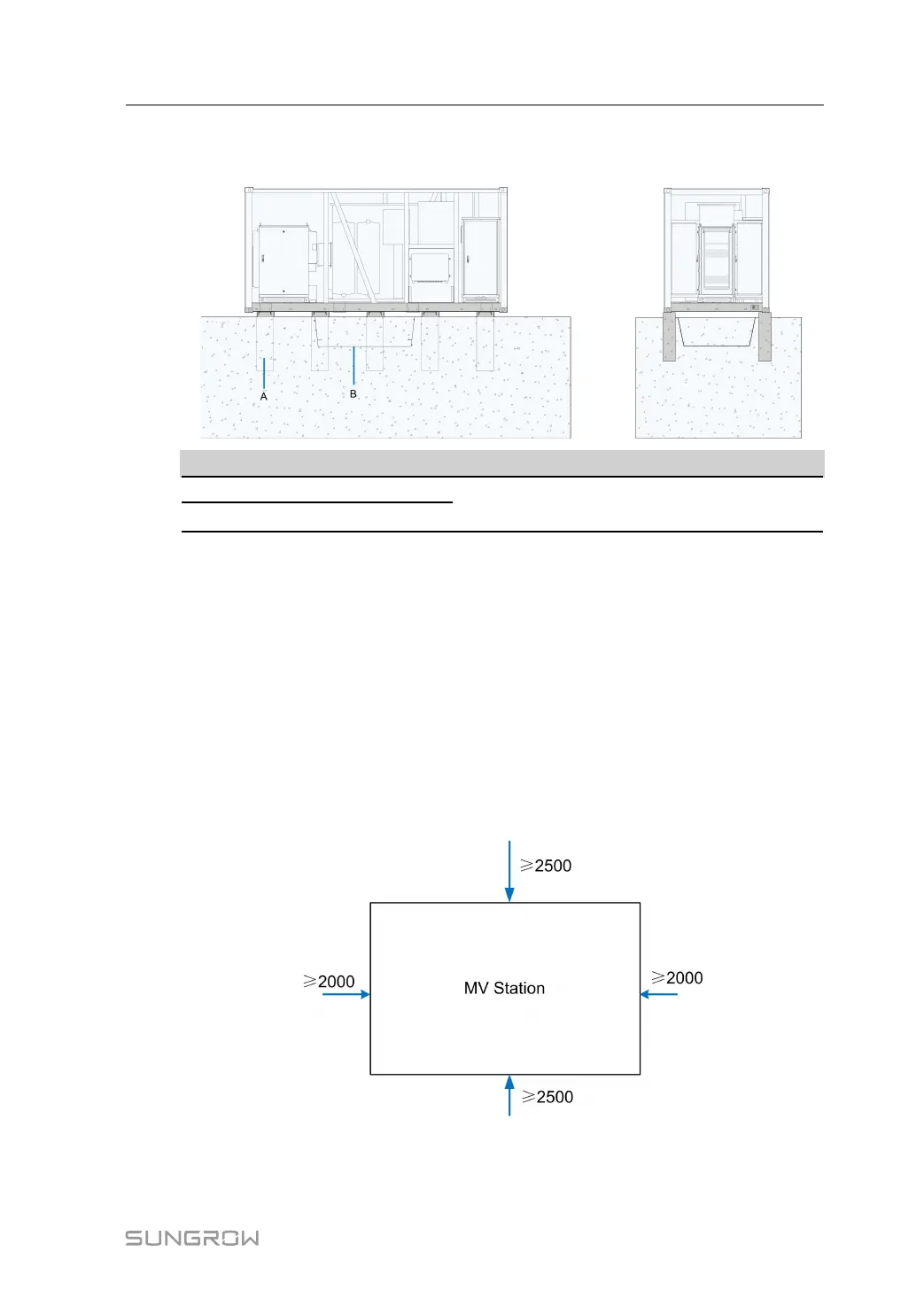

Overall construction effect is shown below.
The foundation plan described in this chapter is for reference only.
No Name
Part source
A Foundation
Not in the scope of delivery
B Oil tray
5.4 Installation Verification
• Bolts and nuts are tightened.
• The container is in good contact with and evenly supported by the bases underneath.
• All container doors can be smoothly opened and closed.
5.5 Clearance Requirement
On site, MV Station works together with the inverter. Required clearances around MV
Station and the inverter are shown in the figure below.
* The distance illustrated in this figure is the minimum values.
System Manual 5 Mechanical Installation
