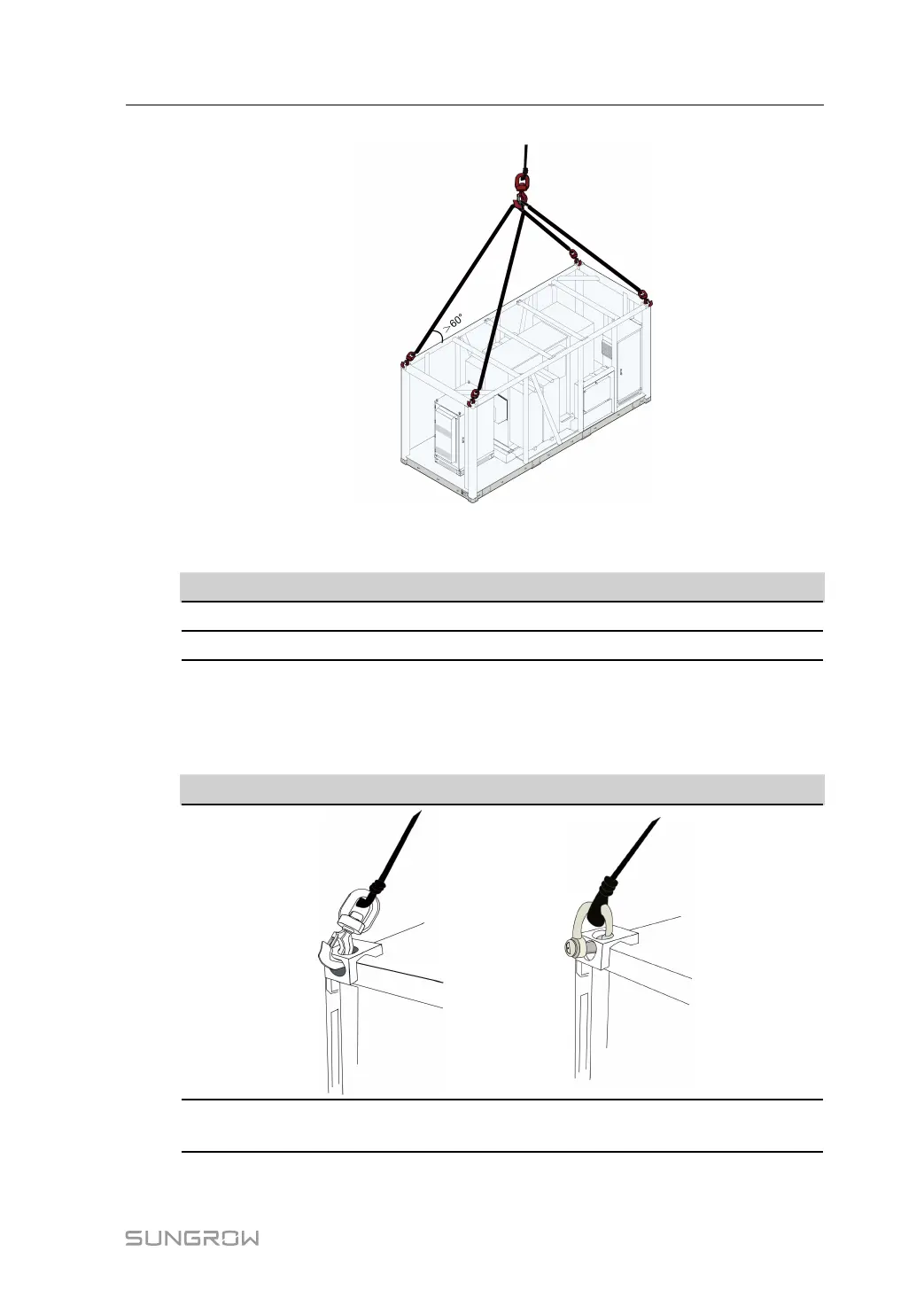

figure 5-2 Hoisting from top fittings
table 5-1 The Substation Hoisting Parameters
Item Requirement
Steel Length(L) ＞6.5 m
Steel Rope Qty. 4 pieces, the load of a single steel is not less than 30T.
5.2.3 Fastening of Connectors
Use slings with hooks or U-hooks to hoist the MV Station.
The lifting devices should be correctly connected to the MV Station.
Lifting device
Hook U-hook
Connections
Notice
Insert the hook from inside to
outside.
Lateral pin of the U-hook should be
tightened.
