Sungrow MVS3200-US - Communication Connection; Auxiliary Power Supply Cable Connection

37
6.4.4 Communication Connection
All internal communication terminals of the MV Station have been connected to the
communication box before delivery. The data of all internal devices of the MV Station is
uploaded to background via the communication box.
Communication Connection Area

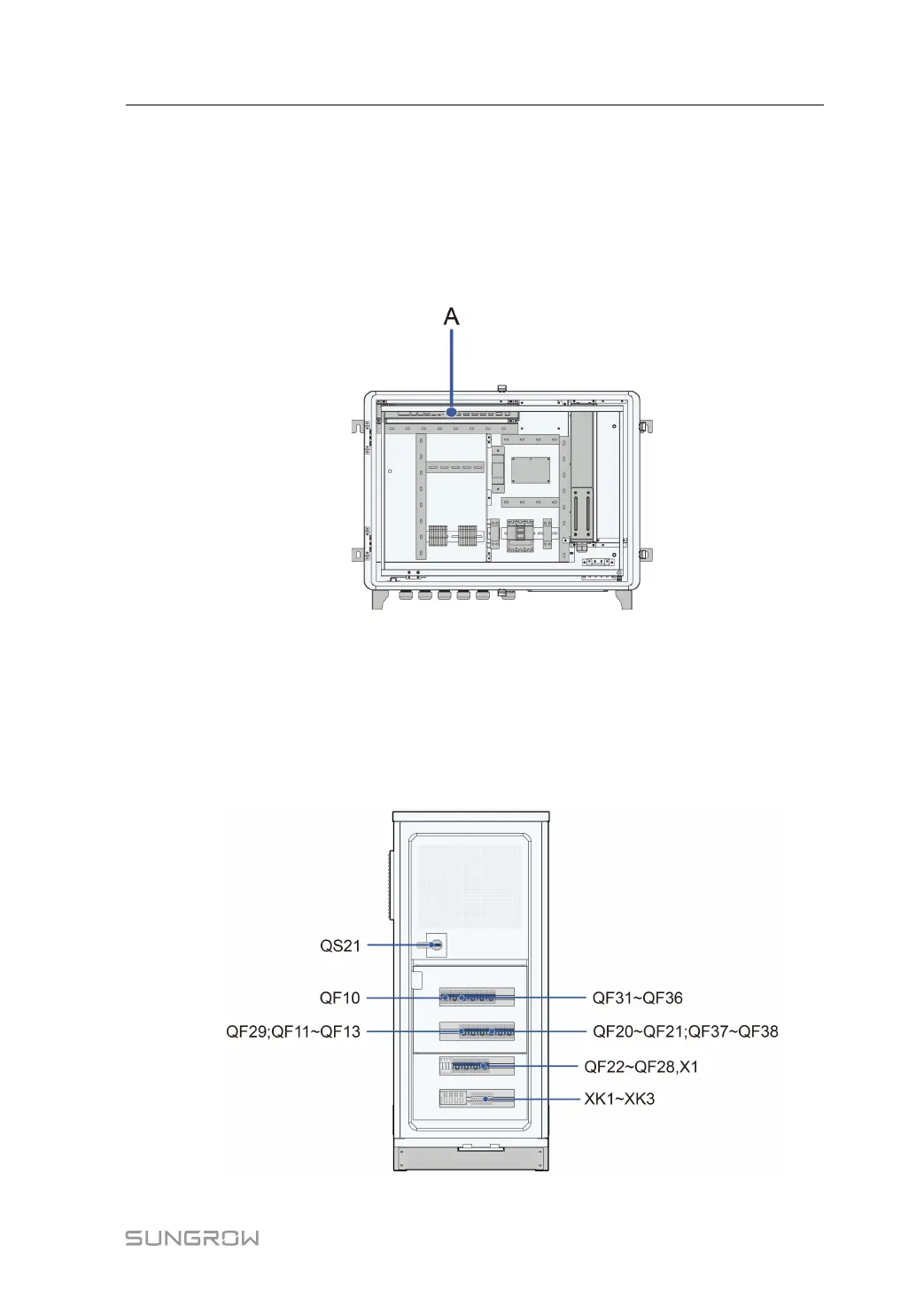

The external cable connection area is shown as A in the communication box.
Waterproof Terminal Requirements
• Reserved waterproof terminal allows the wire diameter to be 6-18mm.
• After the wiring is completed， use fireproof material to seal the gap of the waterproof
terminal.
6.4.5 Auxiliary Power Supply Cable Connection
Internal Components
The figure above is for reference only, and the actual product may differ.
System Manual 6 Electrical Installation
