A B C D E F

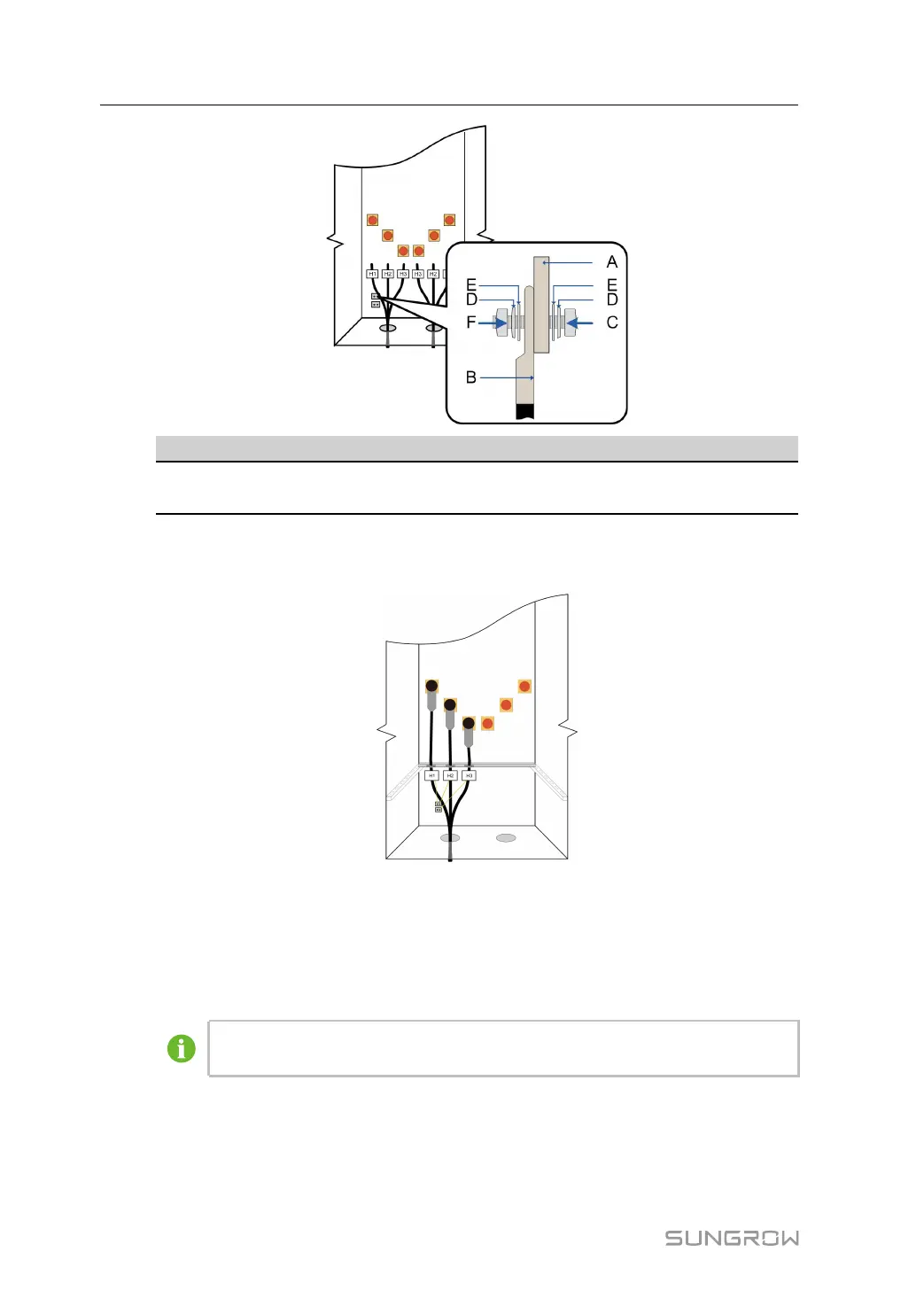

Copper bus Cable lug Bolt(M12)
Disc spring
washer
Flat washer Nut
- - End
Further Operations
After completing wiring, fix the cable on the beam (not included in the scope of supply) to
avoid excessive stress on the cable.
Seal the bottom cable entries with fireproof mud (foaming materials), remove debris in the
HV cabinet, close and lock the cabinet door.
Remove the key to the HV cabinet door, and store it in the operation box.
MV cables must be suitable for temperatures of no less than 90℃ and must be in
accordance with the local standards and directives.
