4.5 Installing the Inverter
Inverter is installed on the wall by means of wall-mounting bracket and the expansion plug
sets.

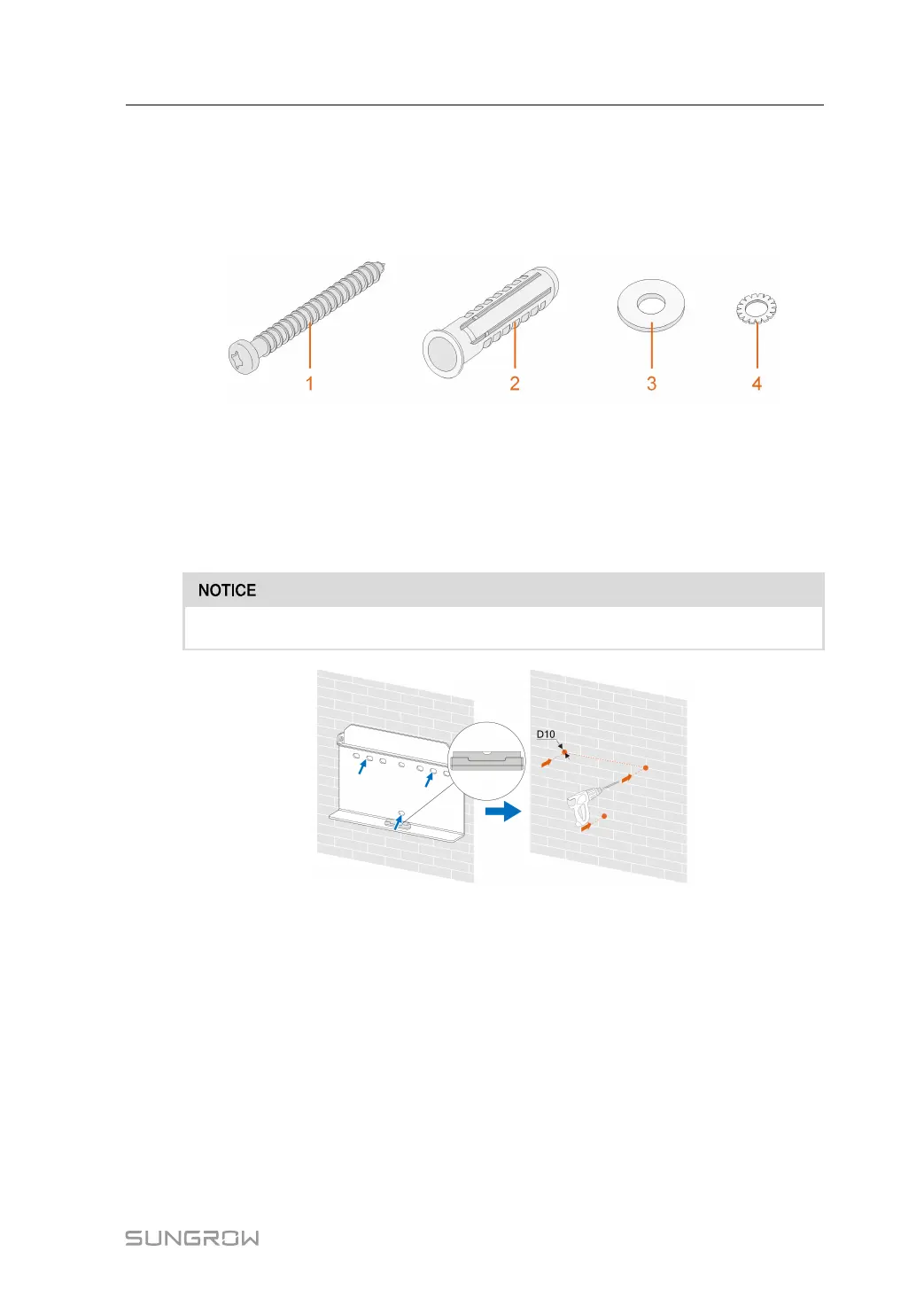

The expansion plug set shown below is recommended for the installation.
(1) Self-tapping
screw M6
(2) Expansion tube (3) Fender washer (4) Spring washer
step 1 Place the wall-mounting bracket to a proper position on the wall. Observe the level on the
bracket and adjust until the bubble is in the middle position. Mark the positions and drill the
holes.
The depth of the holes should be about 70 mm.
* The image shown here is for reference only. The actual product received may differ.
step 2 Place the expansion tubes into the holes. Then secure the wall-mounting bracket to the wall
firmly with the expansion bolt sets.
