5.4.2 Connection Procedure
External grounding cable and OT/DT terminal are prepared by customers.

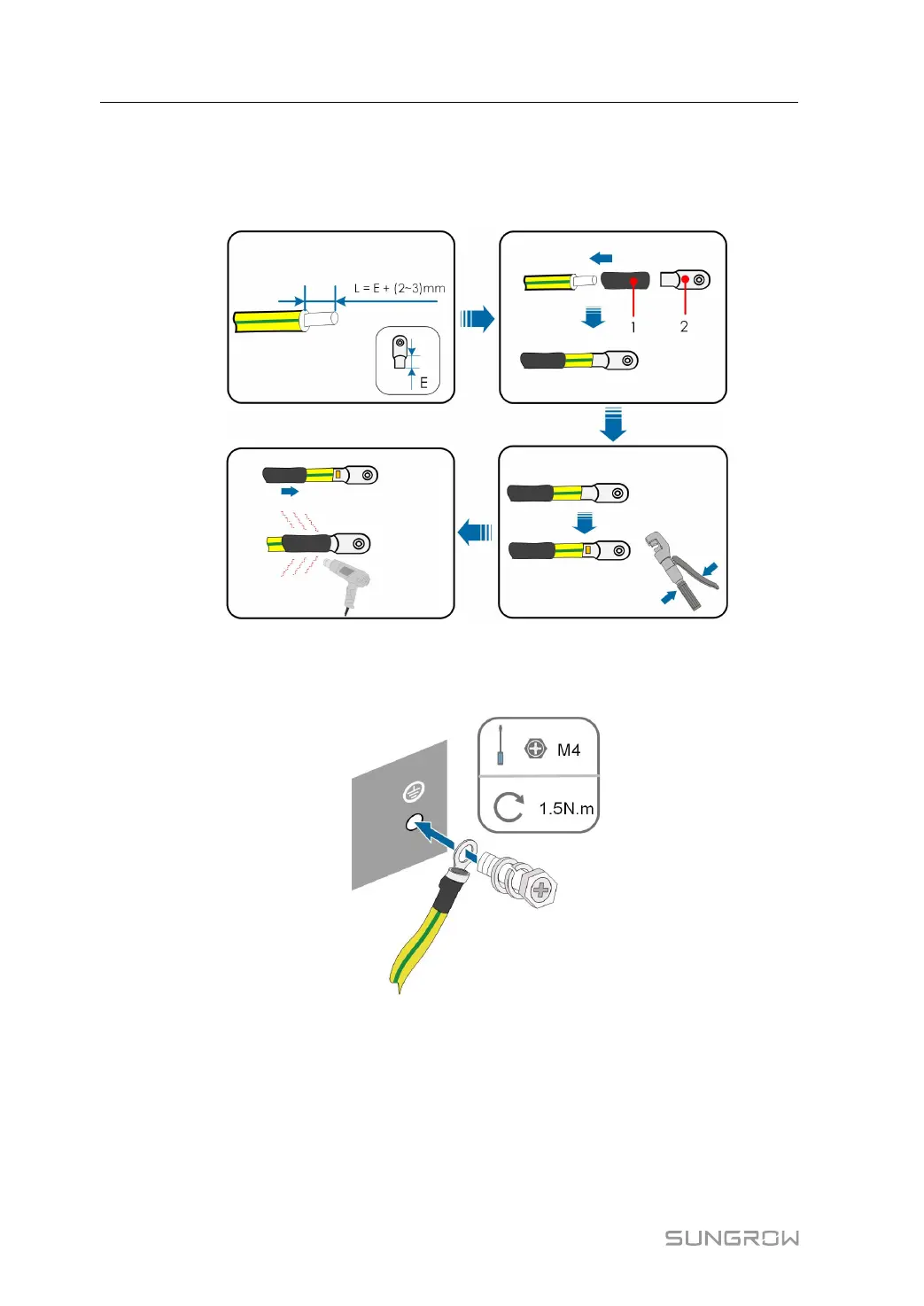

step 1 Prepare the cable and OT/DT terminal.
(1) Heat shrink tubing (2) OT/DT terminal
step 2 Remove the screw on the grounding terminal and fasten the cable with a screwdriver.
step 3 Apply paint to the grounding terminal to ensure corrosion resistance.
- - End
5 Electrical Connection User Manual
