step 5 (Optional) When using a multi-core multi-strand wire cable, connect the wire head to the
cord end terminal. In case of single-strand copper wire, skip this step.

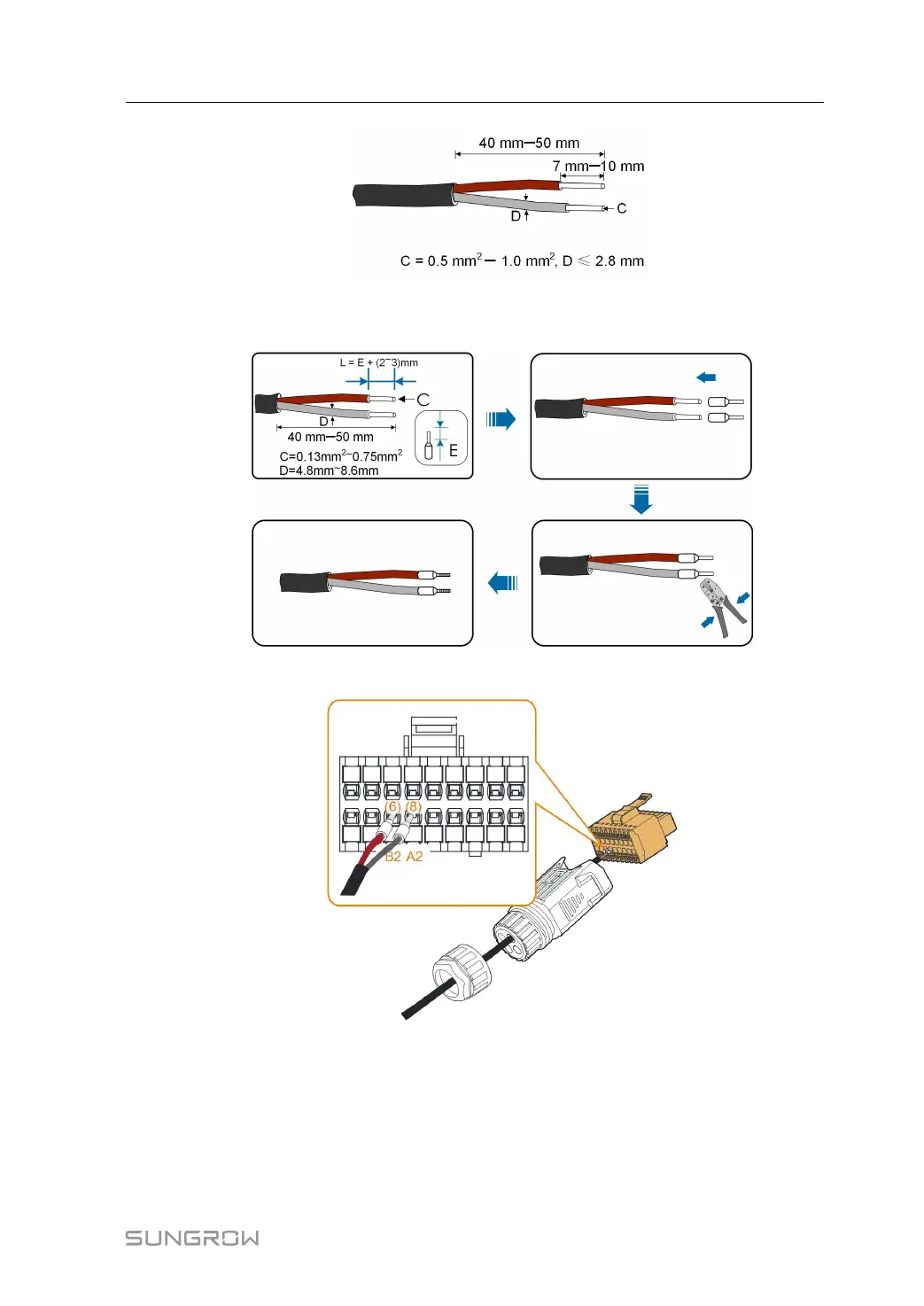

step 6 Plug the wires or terminals into the corresponding terminals as shown in the following figure.
figure 5-5 A2, B2 connection
step 7 Ensure that the wires are securely in place by slightly pulling them and insert the terminal
plug into the housing until there is an audible click.
