Operation Manual 6 LCD Menu Operation
19

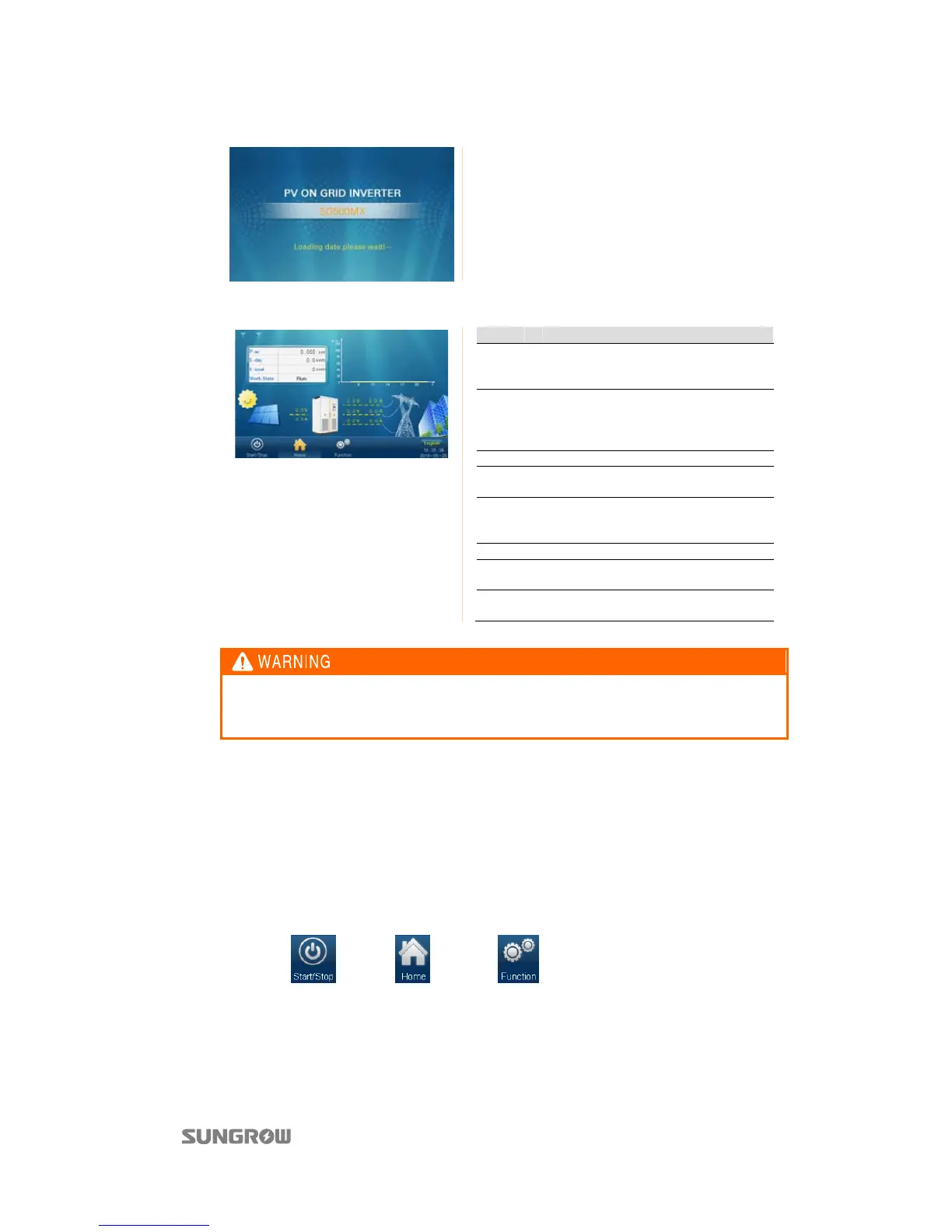

Initialization
Appears every time the inverter is energized. After
initialization, the default screen follows.
6.2.2 Default Screen Introduction
A
B
C
D
E
G
H
F
Item Description
A
Yield data. The first line from the top is
the present active power; work state is
the transient state of the inverter.
B
Today’s active power curve to indicate
the power percentage (power value
divides the inverter nominal power
value).
C DC side voltage and current
D
AC side line-to-line voltage and phase
current
E
Language selection button. Click to
change among English, Chinese,
French, and Italian.
F Present date and time
G
Success rate of the inverter internal
communication
H
Success rate of communication
between the inverter and PC
Accessing to submenus mentioned below starts from the default menu.
LCD screen contains lots of parameters pertinent to the inverter operation. All
parameter configurations must be done by appointed personnel. DO NOT modify any
parameters before you fully understand this manual or consult the staff from Sungrow.
6.2.3 Backlight and Screensaver
If there is no operation to the screen for 5 minutes or more, the backlight will be off. Activate the
backlight by tapping the display and the display will return to the menu operated previously.
6.3 Overview of LCD Menu and Icon
6.3.1 Overview of Submenu and Icon
There are three buttons on the lower left side of the touch panel for user to operate
“Start/Stop”
, “Home”, , “Function” . The logical structures of these menus are
shown below:
To Next Page
