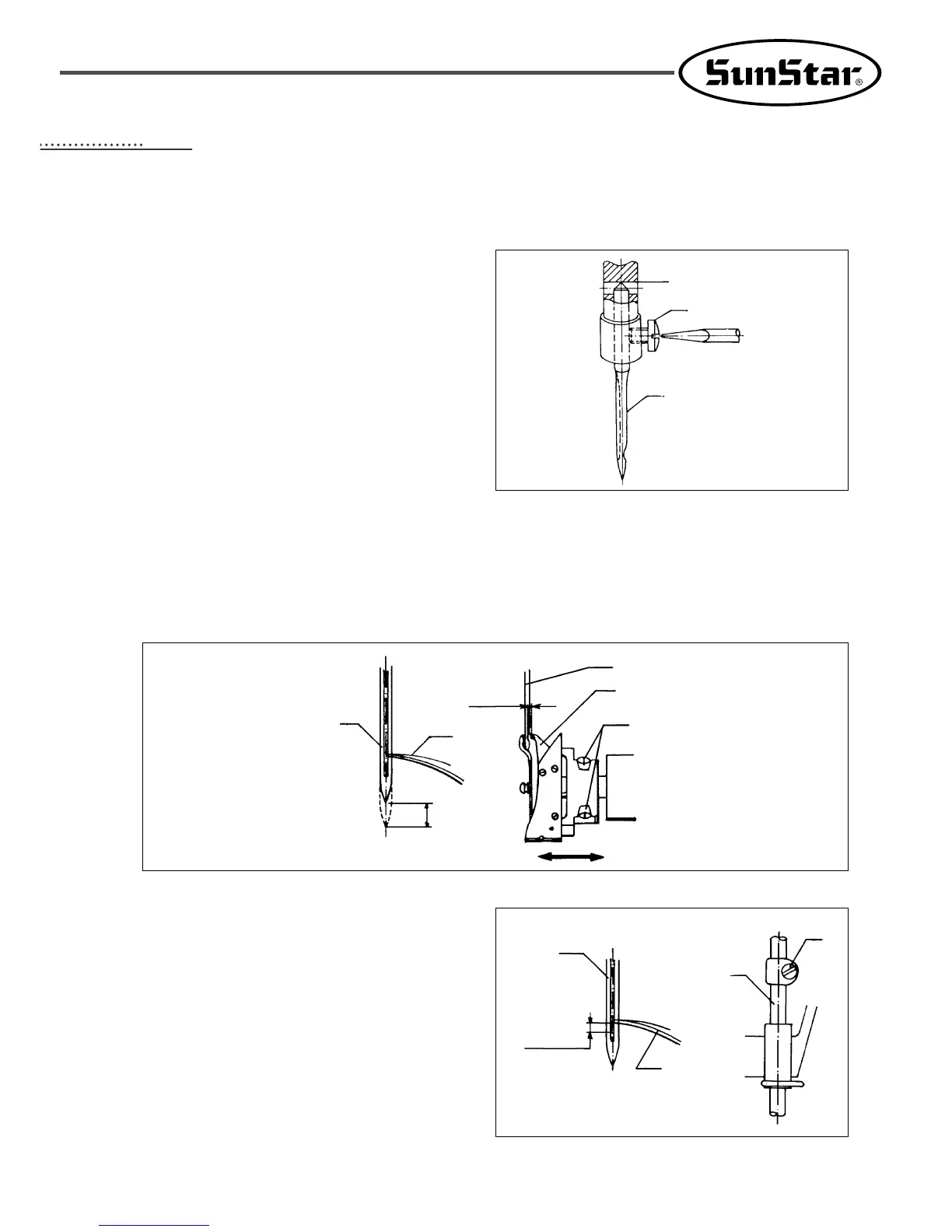

Basic Sewing Machine Adjustments
5-1. Needle Insertion
Place the long groove of the needle① toward the left. Insert
the needle deep into the needle bar hole② and fasten the
needle fixing screw③.
[ Fig. 16 ]
②
③
①
2) Needle Bar Height
Loosen the tightening screw④ to adjust the distance
between the upper part of the thread hole and the hook
point① at 0.5~1.5mm when the hook point① is aligned
with the middle of the needle②. Move the needle bar
up or down to adjust the needle bar⑤ and fasten the
screw④.
[ Fig. 18 ]
②
④
⑤
①
5-2. Adjusting Needle and Hook Timing
1) Needle Bar Lifting
Turn the pulley to place the needle 2.24mm above the lowest point. In this case the hook point① and the middle of the
needle② should be aligned. Loosen the fixing screw③ and set the hook point① at the middle of the needle②. Adjust the
distance between the hook point① and the needle② at 0.05~0.1mm.
[ Fig. 17 ]
②
①
②
0.05~0.1mm
0.5~1.5mm
①
③
