KM-341BL Series is an industrial sewing machine designed to conduct pattern sewing using
fabrics and other similar materials. During operation, the following instructions should be
kept in mind:
ⓐ Read through this manual carefully and completely before operating the machine.
ⓑ Wear proper clothes for safety.
ⓒ Keep hands or other body parts away from the machine's operating sections (needle,
hook, take-up, pulley, etc.), when the machine is in operation.
ⓓ Do not remove safety plates and various covers, while the machine is operating.
ⓔ Be sure to connect the machine to the grounding conductor.
ⓕ Turn off the machine before opening the electric boxes including the control box. Make
sure that the power switch is "OFF".
ⓖ Stop the machine when placing a thread or when checking swing materials.
ⓗ Do not turn on the machine when stepping on the pedal.
ⓘ If possible, install the machine away from the place where powerful electromagnetic
waves are generated, such as high-frequency welding machine.
1-4) Operation
Warning
Caution
[ Warning ]
Make sure that the motor cover is closed during machine operation.
Turn off the power when checking or adjusting the machine.

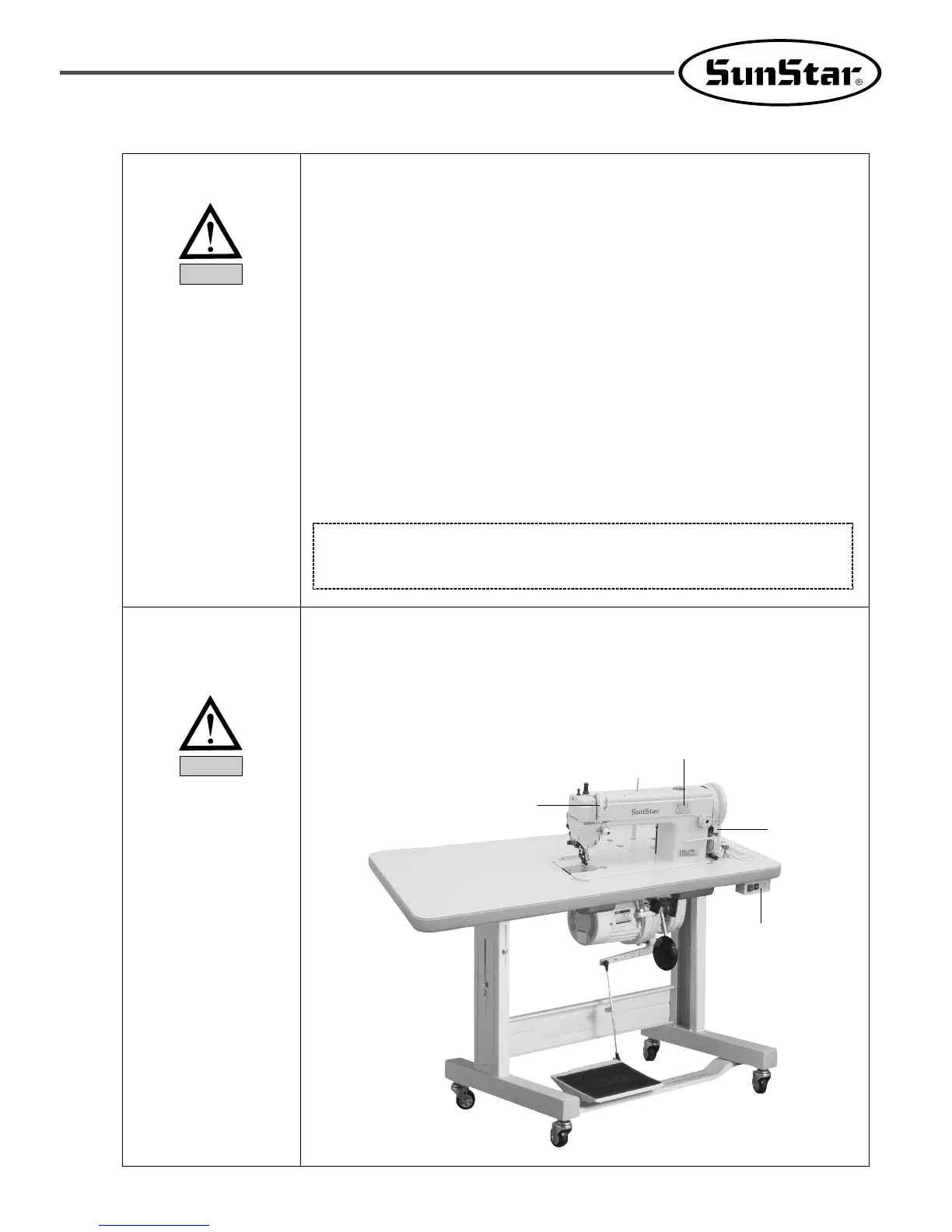

1-5) Safety Devices
ⓐ Safety label : Shows the cautions users should keep in mind during operation
ⓑ Take-up cover: Prevents human body from contacting thread take-up
ⓒ Belt cover: Prevents physical injuries from occurring by the belt or clothes from being
stuck in the belt.
ⓓ Power specification label: Displays safety cautions to prevent electrification
(Power input and use Hz)
ⓐ
ⓒ
ⓑ
ⓓ
