12

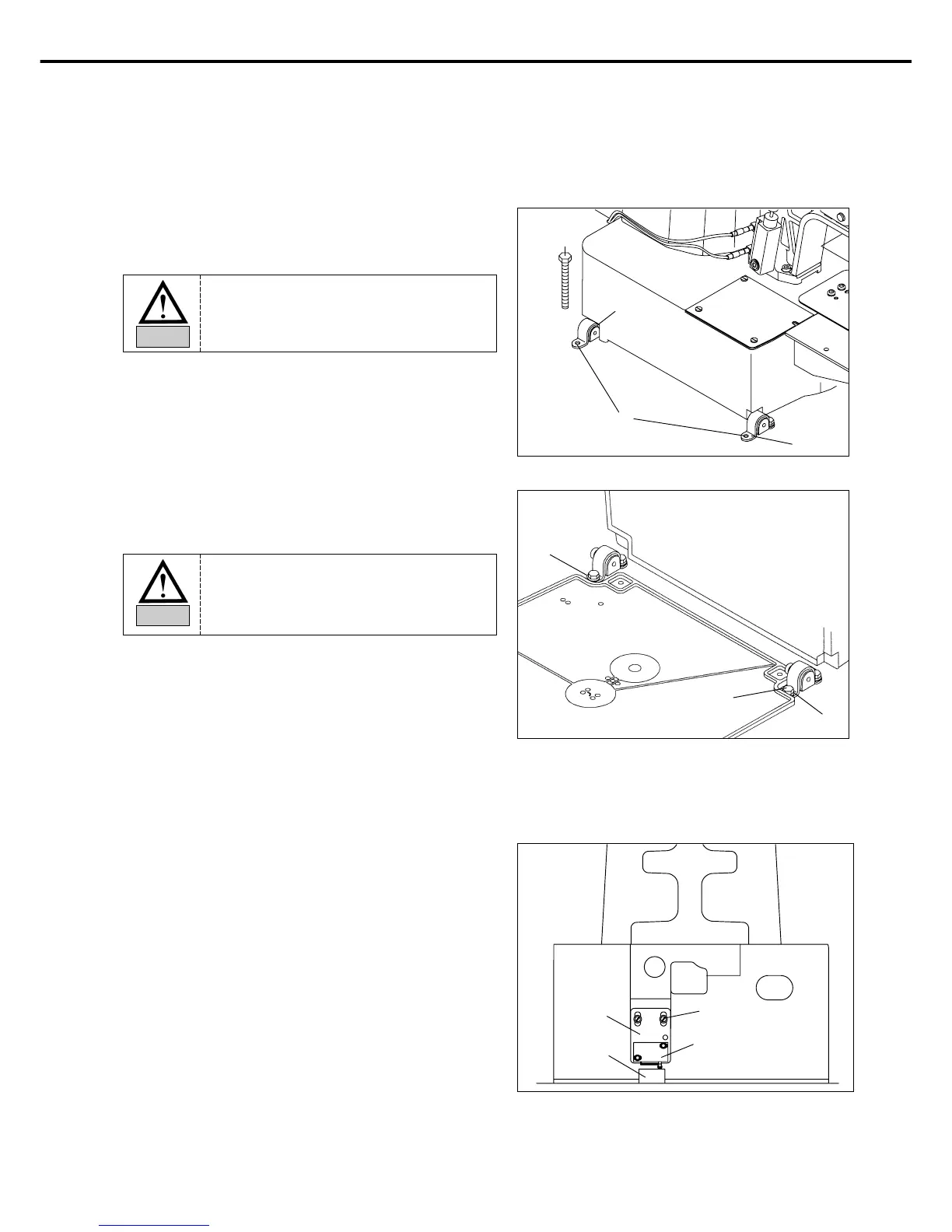

C. Add the hinge metal and hinge rubber to the bed.
Then insert the fixing bolt into the hinge metal hole of
point ① and fix the table as shown in the picture.
D. Stand the machine as shown in the picture, and then fix
the machine on the table after inserting the fixing bolts
into the hinge metal holes of point ①.
[ Fig. 3 ]
[ Fig. 4 ]
Hinge Rubber
Bolt
①
Hinge
①
①
Bolt
E. Assemble the safety switch bracket ① on the bed as in
the figure. Move the safety switch bracket up and down to
make sure that the safety switch supporting rubber ② is
tightly pressed by the safety switch ③, and then fasten the
screw ④.
[ Fig. 5 ]
②
④
③
①
The machine should be carried by more
2 people for safety
Danger
Since the machine is not perfectly installed
on the table, extreme care is needed
when you make the machine stand up not
to have any accident occurred.
Danger
To Next Page
