30

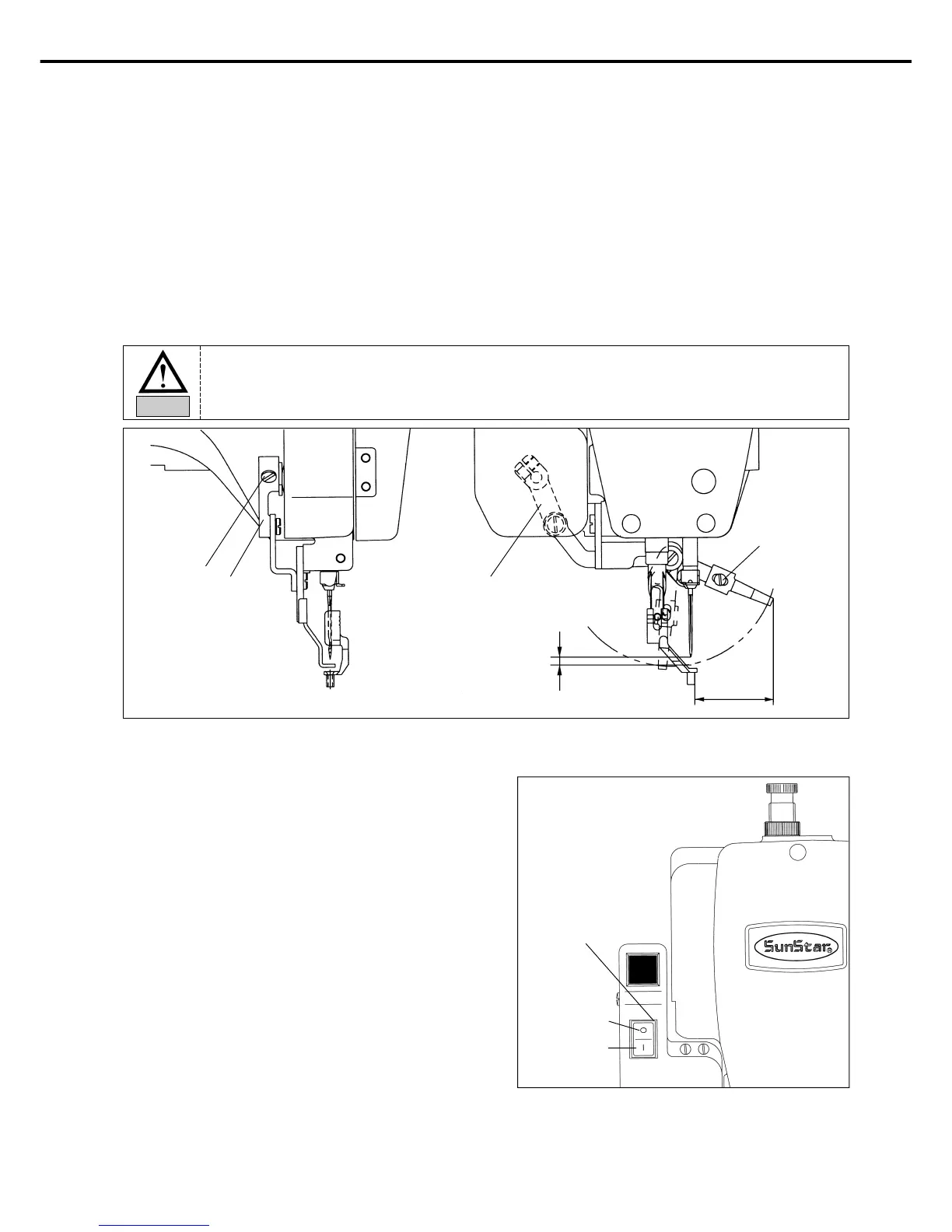

9) Adjusting the Wiper Parts
A. Unfasten the crank fixing screw ① when a needle is stopped upward.
B. Adjust the wiper crank ② for wiper and needle to be apart from about 40mm
C. Fasten the wiper crank fixing screw ①
D. Unfasten the wiper fixing screw ③ and adjust it for wiper tail and needle tip to be apart from about 1mm, then fasten
the wiper fixing screw ③.
[ Fig. 47 ]
①
②
②
③
40mm
1mm
[ Fig. 48 ]
E. For using the wiper, press the wiper operation switch
① and for not using it, press the wiper operation
switch ①.
Wiper On/Off Switch ①
Wiper Off
Wiper On
If a position of wiper is not proper, the wiper can be interfered with needle or inverting
clamp devices during operating, therefore, precise operation can not be a chieved.
Caution
