35

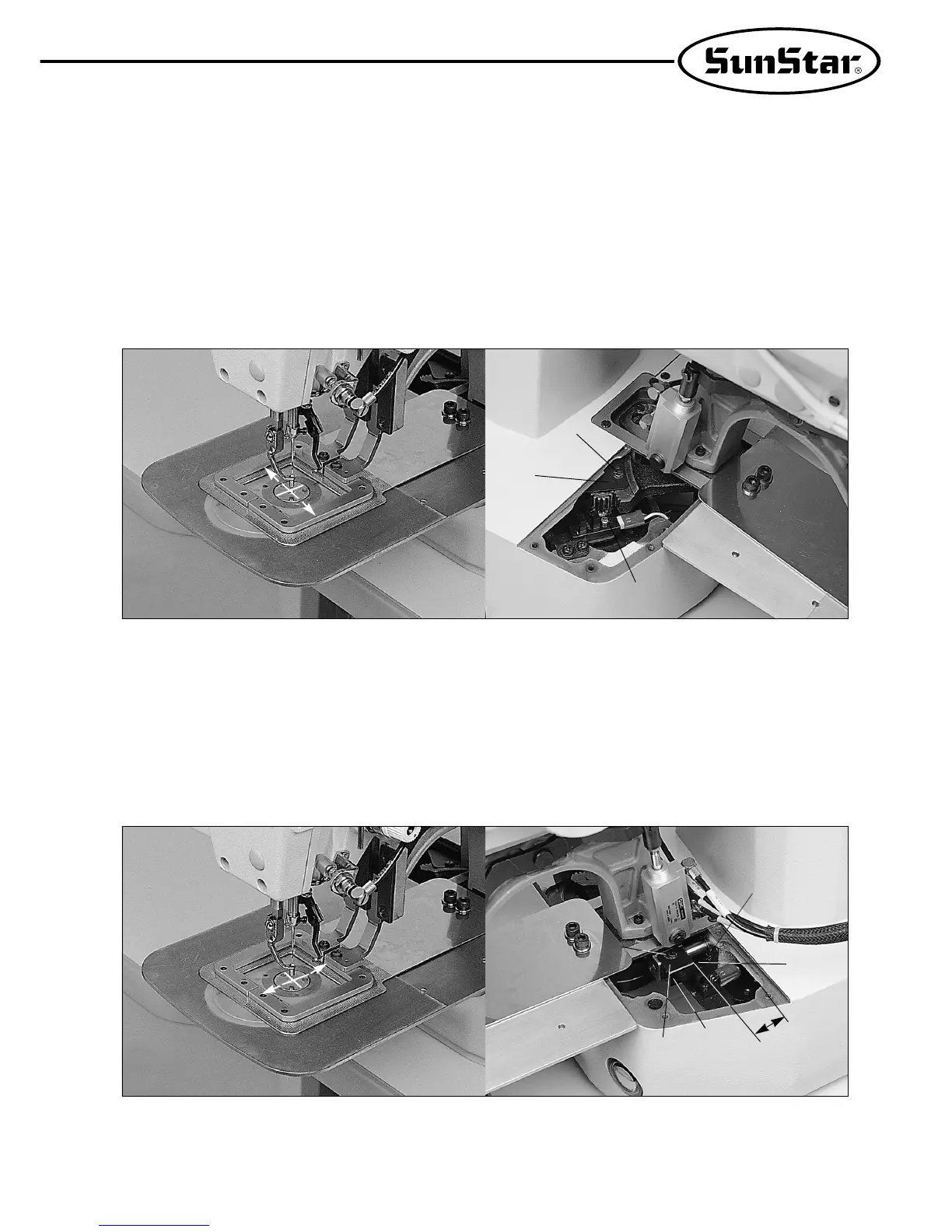

15) Setting Up the X-Y Origin
A. How to set up X-axis origin
ⓐ Separate a bed cover (left).
ⓑ Move the center of work clamp foot to be placed on the center of X-axis.
ⓒ As seen in the figure, unfasten the bolts of X-sensor plate and let the end of X-sensor plate locate on the center
of sensor, then fasten the bolts with screw-driver.
[ Fig. 60 ]
B. How to set up the O-point of the Y-axis
ⓐ Separate the bed cover (on the right).
ⓑ Adjust the distance ③ between the Y-transfer arm ① and the bed surface ② to 24mm.
ⓒ Move the feed bracket to position the center of the upper feed plate at the center of the Y-axis. You shall
keep the distance ③ to 24mm.
ⓓ After adjusting the end of Y-sensor plate to correct with the sensor center by unfastening the joint screw in the
Y-sensor sensing plate as shown in the Figure, fasten the joint screw using a spanner.
[ Fig. 61 ]
Screw
X-Sensor Plate
Sensor
Y-Sensor
Plate
Sensor
Screw
①
②
③ 24mm
To Next Page
