PREPARATIONS BEFORE OPERATING THE MACHINE

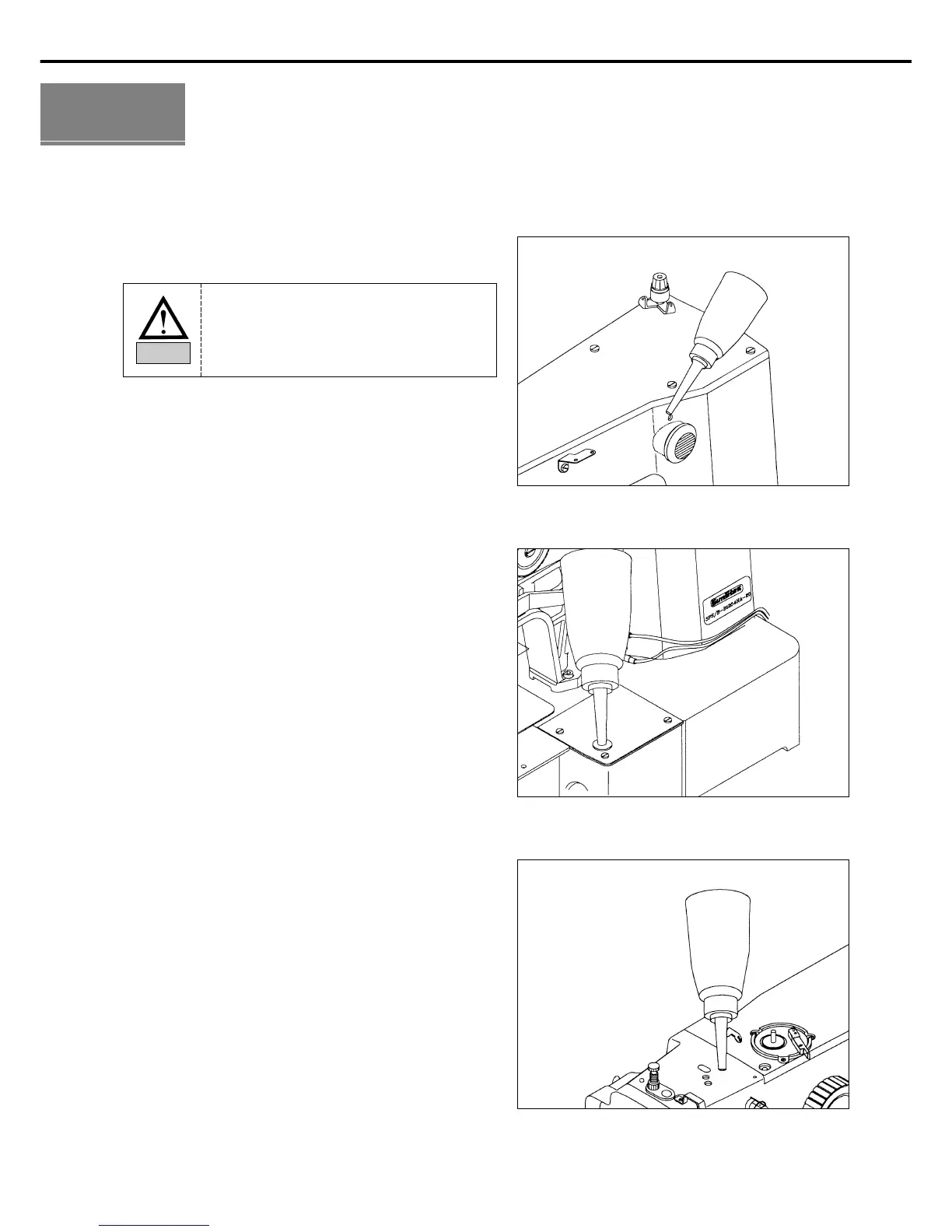

C. Supply oil into the hole in the upper part of the arm.
[ Fig. 17 ]
[ Fig. 15 ]
A. Check the amount of oil left in the oil tank which is
installed on the arm and supply oil stufficiently.
1) How to Supply Oil
[ Fig. 16 ]
B. Check the remained amount of oil from the right
window(Oil gauge window) of oil tank installed on the bed
as seen in the figure, then supply oil enough through the
lubrication hole on the bed cover.
Be sure to supply oil when operating the
machine for the first time and when the
machine has not been used for a long
time.
Caution
To Next Page
