D. How to connect the pneumatic hoses of the separately driven feed frame machine
(for SPS/D-B1254󳣑A-22 / B1263󳣑A-22 machine)
1. Connect filter regulator and solenoid valve by
using the hose ①.
2. Assemble the hose with the label of “S3L, S4L,
S3R, S4R”to the attaching part of solenoid as
shown in the figure
3. Finally, connect the solenoid and the connector of
pressure switch.
(Please match the label of solenoid and connector
and connect them.)

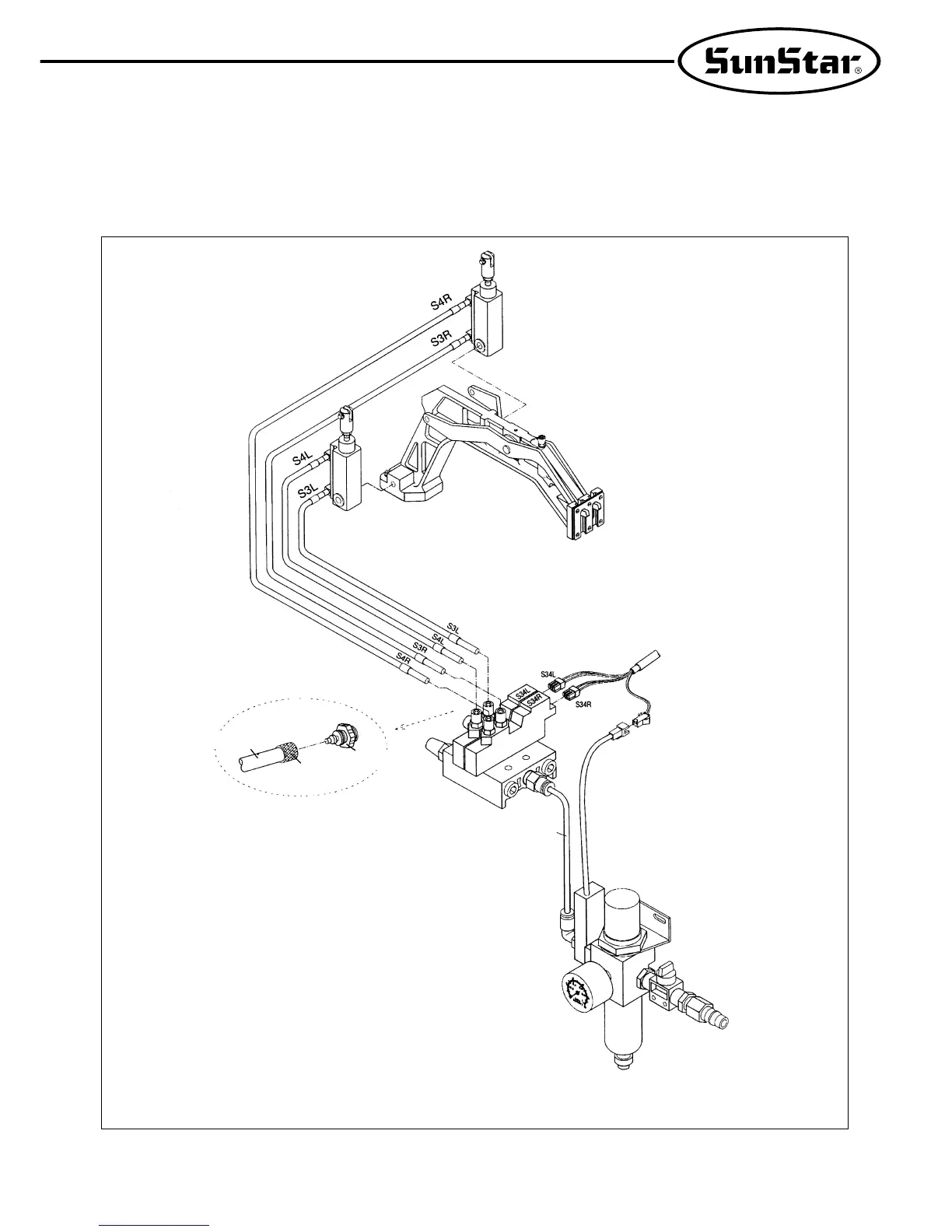

[ Fig. 13 ]
①
Air Hose
Cap Net
Hose Nipple
