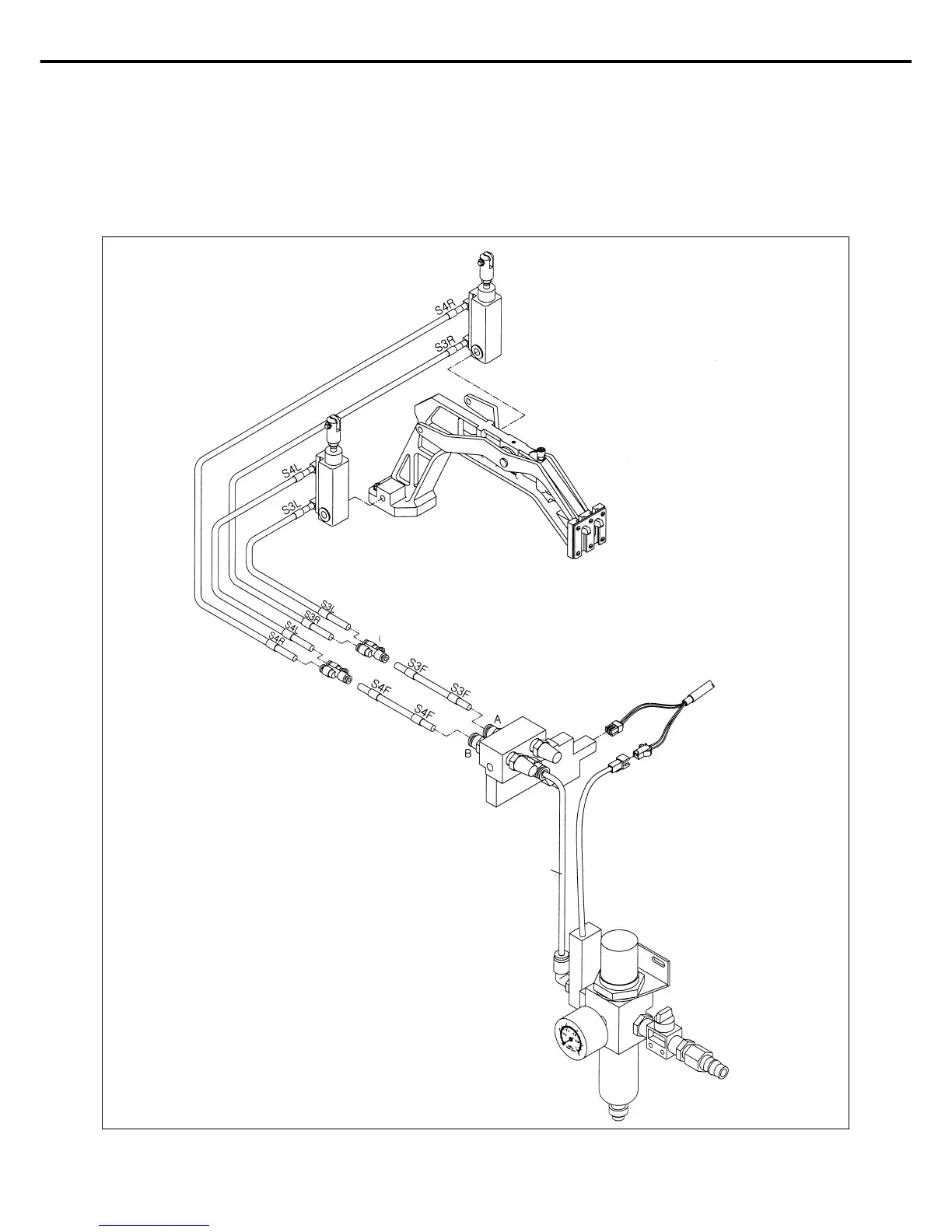

C. How to connect the pneumatic hoses of monolithic feed frame machine (for SPS/D-B1254󳣑A-20 / B1263󳣑A-20 machine)
1. Connect filter regulator and solenoid valve by
using the hose ①.
2. Insert the hoses labelled “S3F”and “S4F”to
the A and B part as shown in figure.
(Confirm the noses are inserted filly.)
3. Using quick couplings ②, connect “S3L”& “S3R”
to S3F and “S4L”& “S4R”to S4F”
4. Finally, connect the solenoid and the connector of
pressure swith.
[ Fig. 12 ]
①
①
②
