Connect the negative wires: remove the relevant access windows if the wire diameters exceed 10mm, as
shown below.

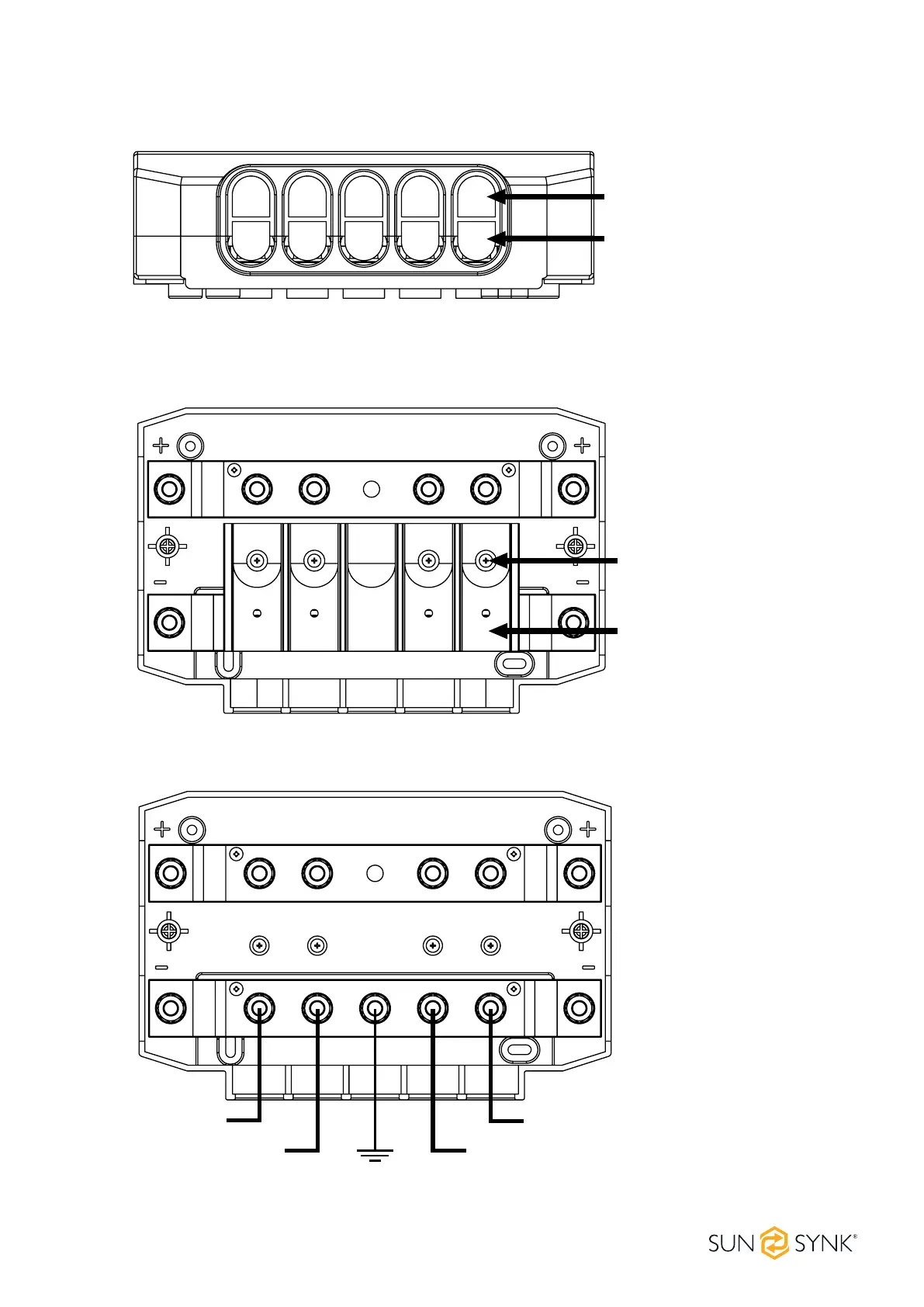

BREAK THIS ACCESS WINDOW
IF THE CABLES EXCEED 10MM DIA
BREAK THIS ACCESS WINDOW
FOR CABLES BELOW 10MM DIA
To reach the negative connections remove the wire guide shown below. The wire guide can be temporary
removed by removing the 4 screws from the Sunsynk Busbar.
FIXING SCREWS
WIRE GUIDES
Negative connection.
