GND

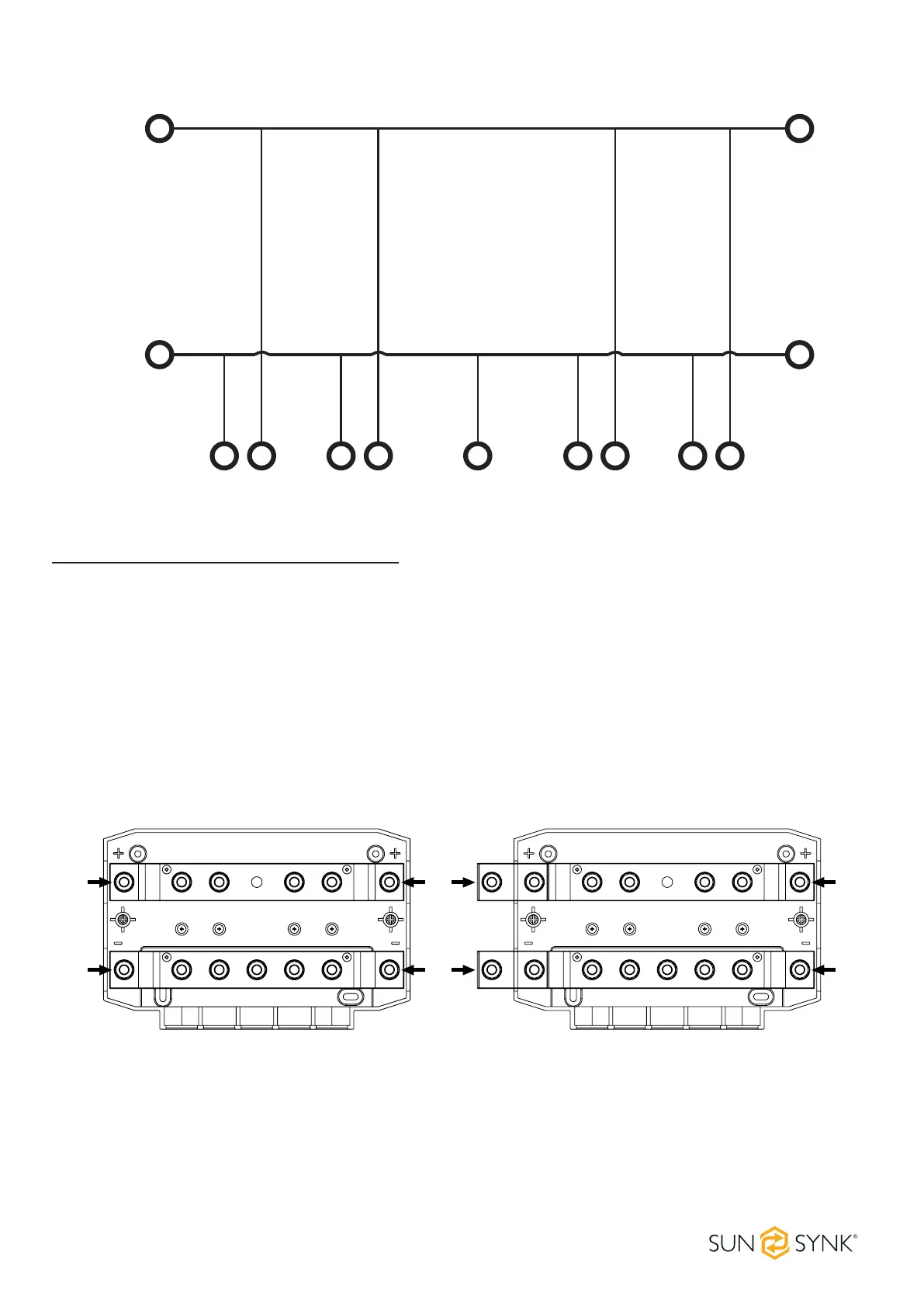

The internal wiring diagram of the Sunsynk Busbar.
SYSTEM DESIGN
Interconnecting Sunsynk Busbar
Each Sunsynk Busbar can connect to other Sunsynk Busbar's on both sides using the links and M8
bolts provided.
If the Sunsynk Busbar is the rst in line, the last in line or is used by itself, it is possible to connect batteries,
loads or chargers directly by adding/exposing the link. However, we do not generally recommend this
because additional insulation and fusing is needed.
Sunsynk Busbar connections: the arrows indicate where the other Sunsynk Busbar's can connect.
