System Example
In this system a Sunsynk Busbar is used by itself.

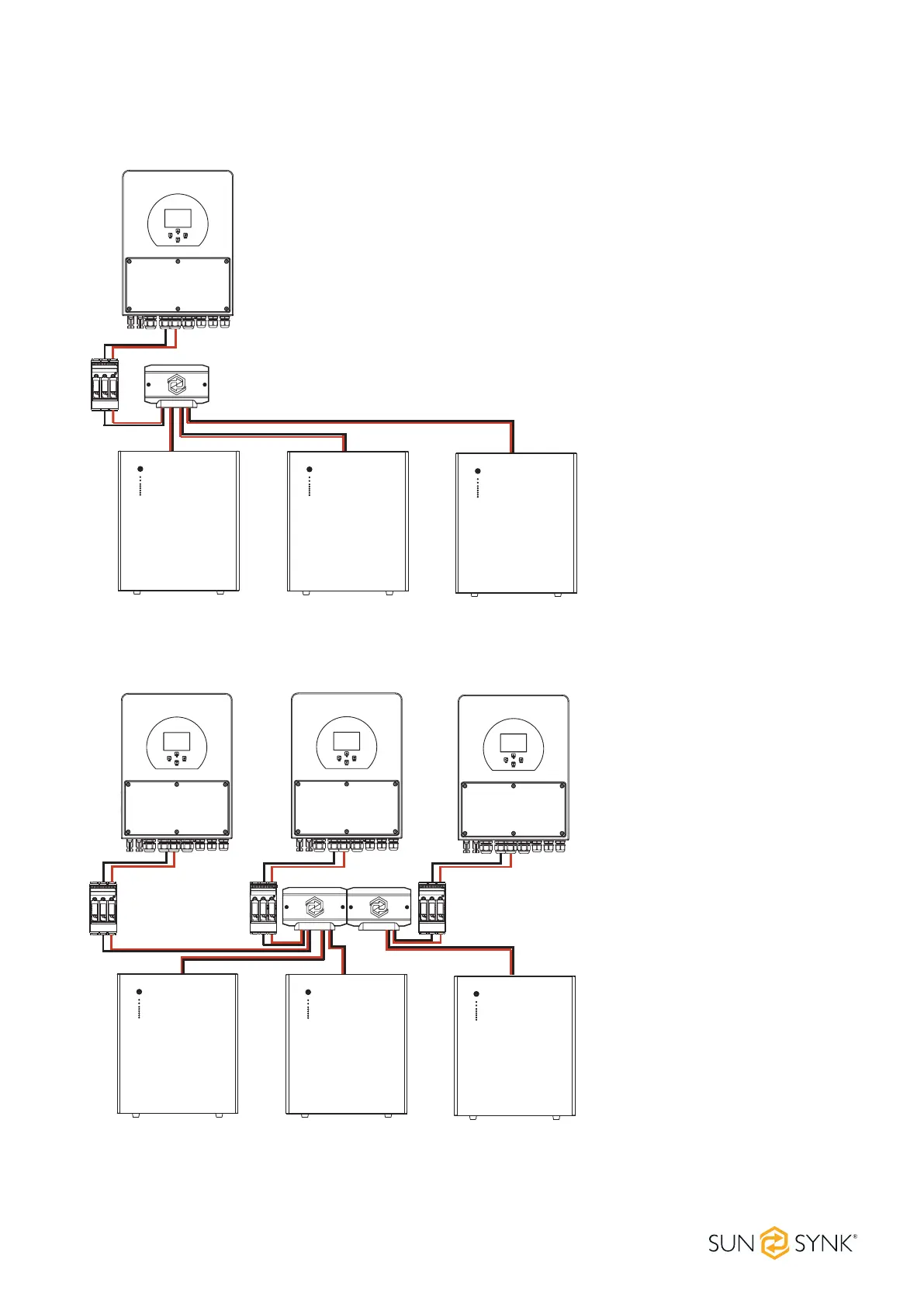

Single Phase Example
The Sunsynk Busbar does not contain fuses. All connected load, chargers or batteries need to be
fused externally.
Multiple Sunsynk Busbar's can be connected to each other thus creating a longer busbar with more
connections for batteries and/or loads.
3 Phase Example
L2
L3
L1
