Sunsynk Busbar System
The Sunsynk Busbar system is a modular busbar system that incorporates DC connections and distribution
for energy.
 Sunsynk Busbar - A positive and negative busbar with 4 connections for batteries or DC equipment.
FEATURES
Internal Parts and Wiring Diagram

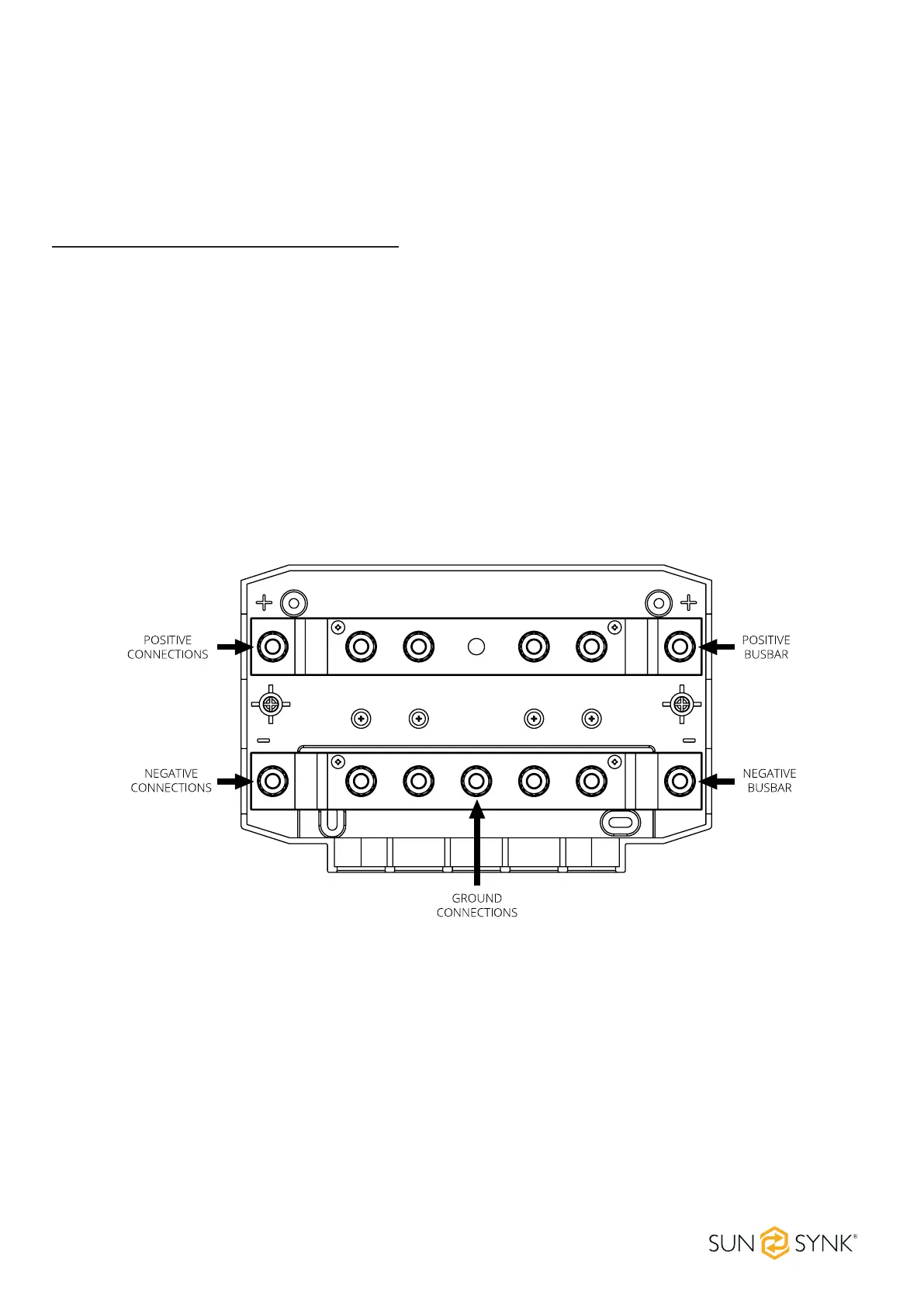

The internal physical parts and the wiring diagram of the Sunsynk Busbar indicating the following parts:
 Positive busbar
 Negative busbar
 Positive connections
 Negative connections
 Ground connection
The internal physical parts of the Sunsynk Busbar.
