3.3. Battery Connection

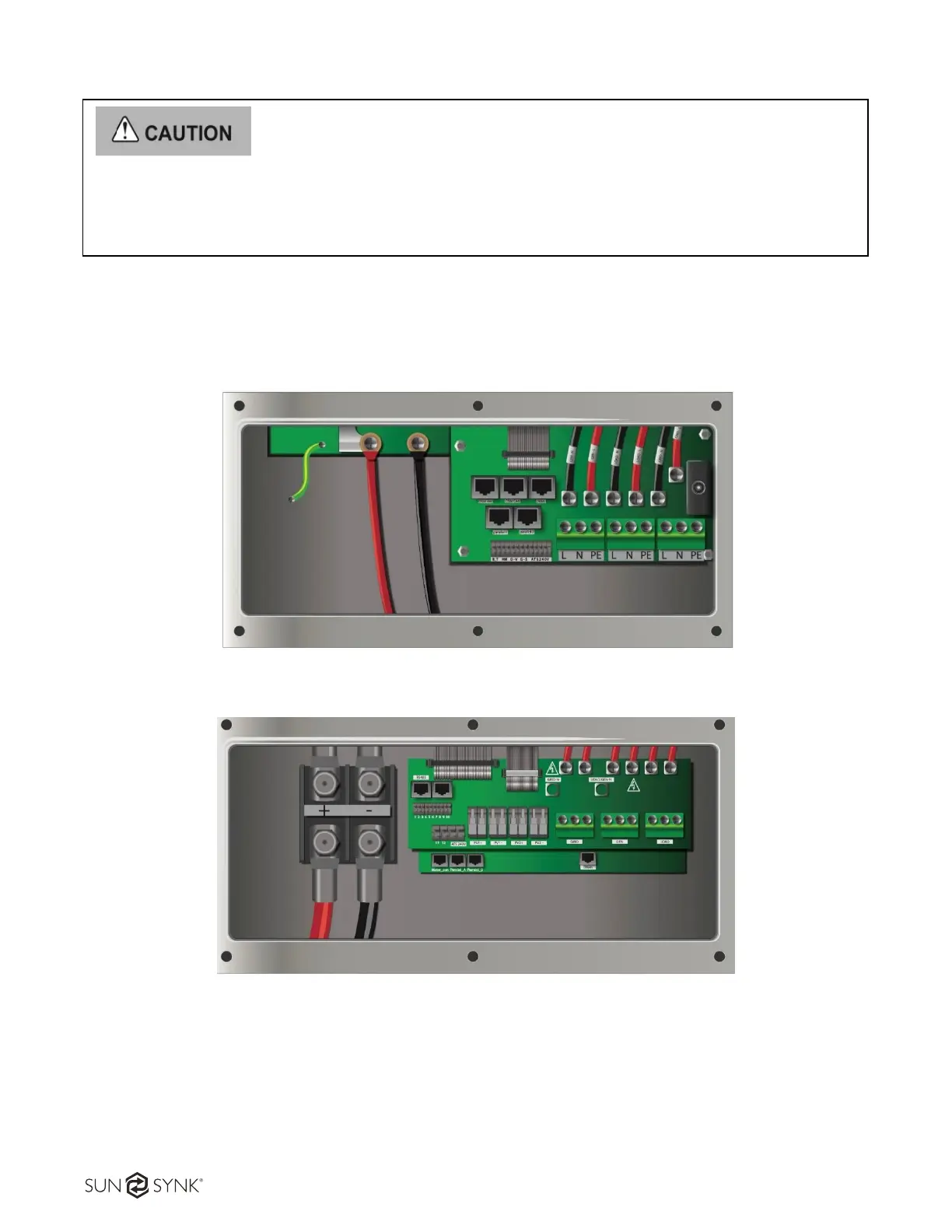

Battery connection of the 3.6kW/5.5kW model
Battery connection of the 8kW model
For safe operation and compliance, an individual DC overcurrent protector or disconnection device is
required for the connection of the battery and the inverter. It is recommended to utilize a suitable fuse
and DC isolator (see next page). In some applications, switching devices may not be required but
overcurrent protectors are still required.
A minimum battery cable size of 35mm diameter and 50mm diameter is recommended for the 5.5
kW and 8.8kW inverter, respectively.
Risk of injury when lifting and from falling inverter
Remember that this inverter is heavy (See section 2 “Technical Data”)! Please be careful when
removing the inverter from the packaging and mounting it onto the wall.
