4.5. System Flow Page
Access by clicking on the “Bar Chart ” on the home page

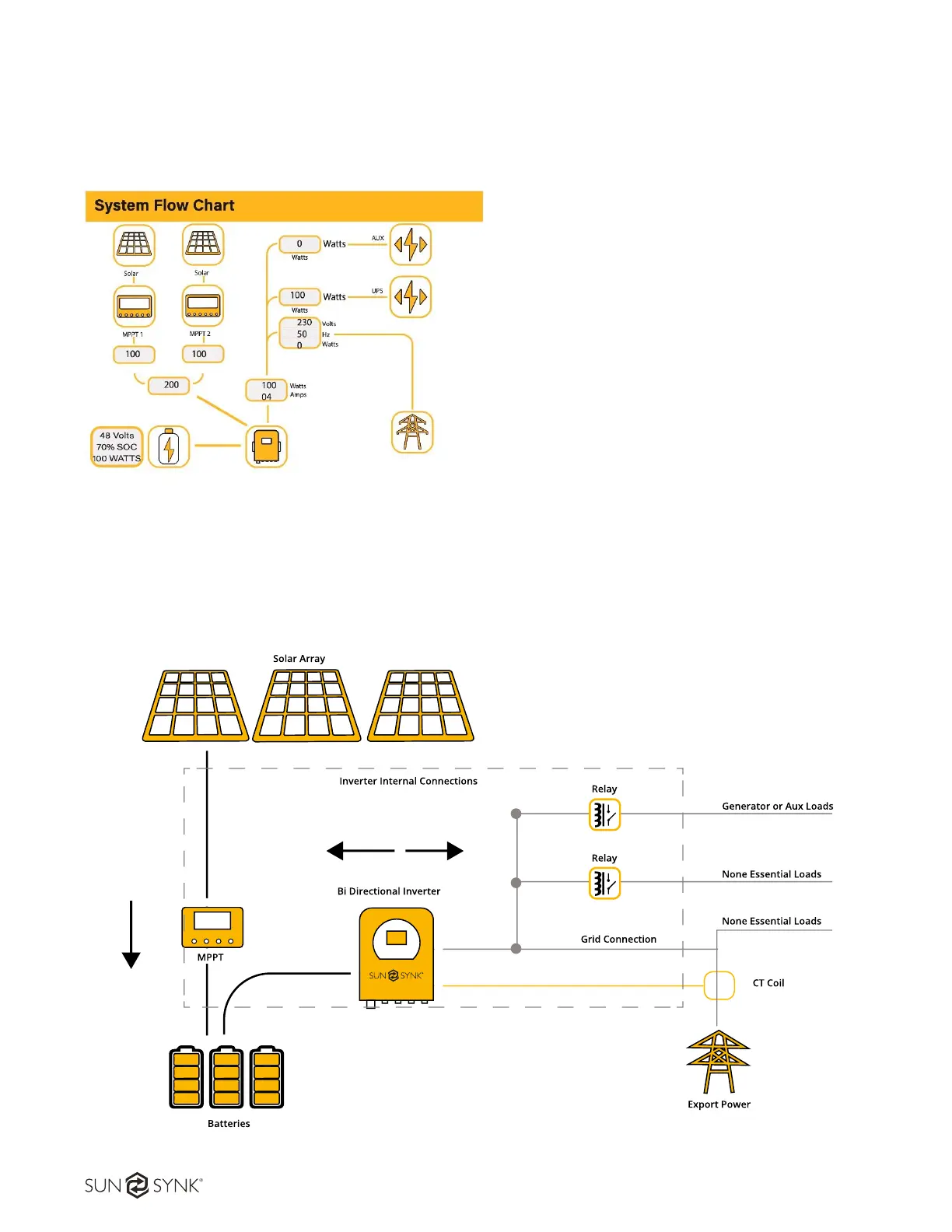

To better understand the functioning of your system, take a look at the figure bellow:
1. The PV modules charge the batteries.
2. When the batteries reach a specific level (programmable) the battery power is fed into the inverter.
3. The inverter can then supply power to the grid (export or no export), load, and auxiliary or smart load.
4. CT coil controls the export power.
