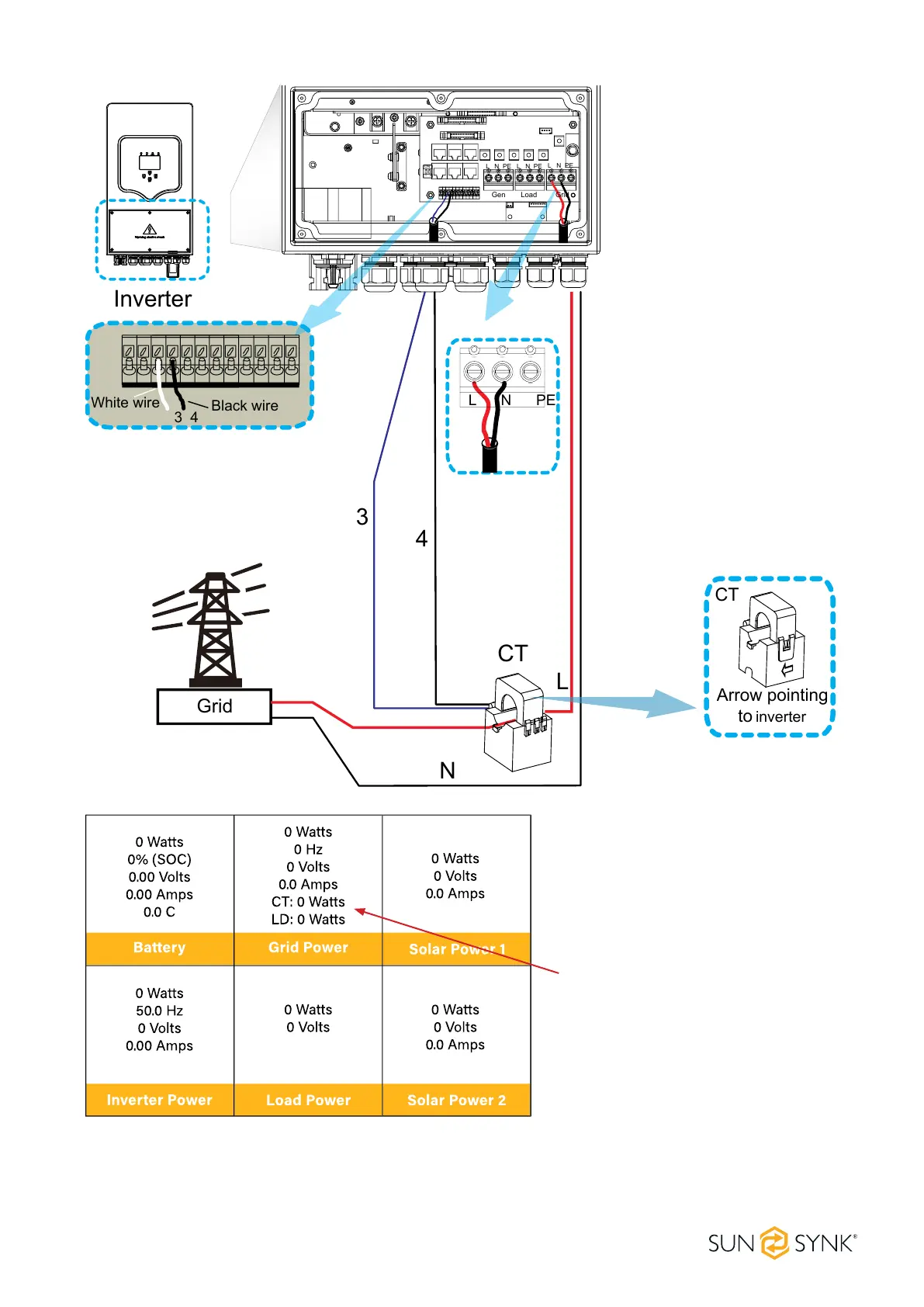

SINGLE PHASE HI 3.6/5kW | User Manual26
L N PE
White wire
Inverter
3 4
Black wire
Grid
L
N
CT
3
4
ON
1 2
Load
L N PEL N PE
L N PE
Grid
Gen
CT
Arrow pointing
to
inverter
If the CT coil is tted in the wrong way
then this variable will have negative
instead of positive values when the
power is owing into the
house/inverter. Also, the inverter
export limiting function will not work
properly.
