SINGLE PHASE HI 3.6/5kW | User Manual41

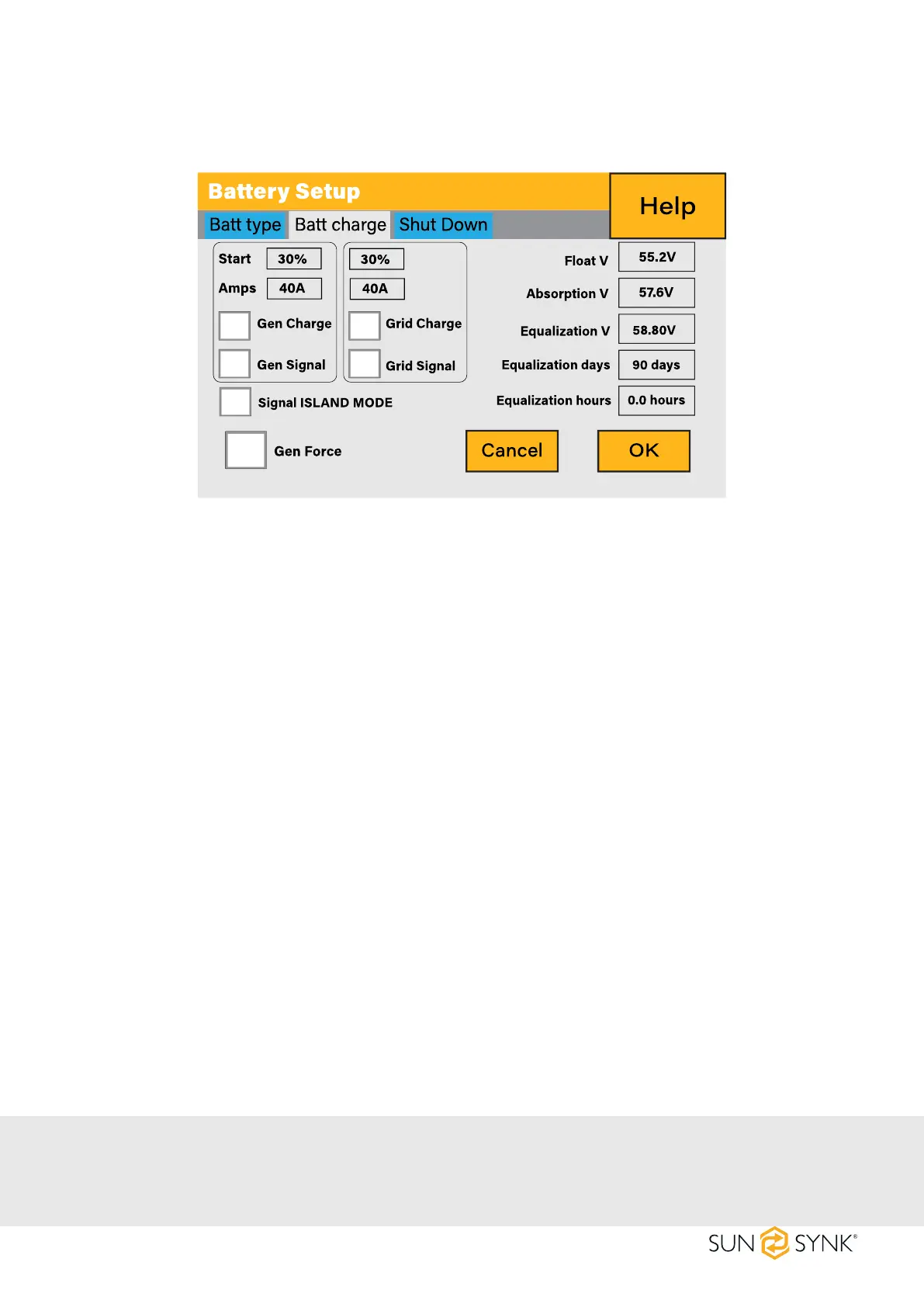

5.10. Generator & Battery Page
To congure battery charging settings, click on the BATTERY icon and then on ‘Batt Charge’.
What this page displays:
Start: Generator start voltage/SOC %. S.O.C at 30% system will AutoStart a connected generator to
charge the battery bank.
Amps: Charge rate of 40A from the attached generator in Amps.
Grid power start voltage/SOC %: No use. Just for customization.
Grid Amps: Current that the grid charges the battery.
Gen Charge: Uses the GEN input of the system to charge the battery bank from an attached generator.
Gen Signal: Normally open (NO) relay that closes when the Gen Start signal state is active.
Gen Force: When the generator is connected, it is forced to start without meeting other conditions.
Grid Charge: It indicates that the grid will charge the battery.
Grid Signal: This indicates when the grid should no longer charge the battery.
Signal ISLAND MODE: When "signal island mode" is checked and the inverter connects the grid, the ATS
port voltage will be 0. When "signal island mode" is checked and the inverter is disconnected from the
grid, the ATS port voltage will output 230Vac. This feature and outside NO type relay can realize N and PE
disconnection or bond.
Float V: The voltage at which a battery is maintained after being fully charged. Float V for an AGM battery
is 55.20V.
Absorption V: The level of charge that can be applied without overheating the battery. Absorption V is
for an AGM battery is 57.60V.
Equalization V: Equalizing charge/overcharge to remove sulfate crystals that build up on the plates over
time on lead-acid batteries. Equalization V for an AGM battery is 58.80V.
PLEASE NOTE
Do not alter these settings too often on the same battery, as it may damage the battery.
