SINGLE PHASE HI 3.6/5kW | User Manual63
5.17. Advanced Function Setup
System selfcheck: Disable. this is only for the
factory.
Signal ISLAND MODE: When "signal island mode"
is checked and the inverter connects the grid,
the ATS port voltage will be 0. When "signal island
mode" is checked and the inverter is disconnect-
ed from the grid, the ATS port voltage will output
230Vac. This feature and outside NO type relay can
realize N and PE disconnection or bond.
BMS_Err_Stop: When it is active, if the battery BMS
fails to communicate with an inverter, the inverter
will stop working and report fault.
Backup Delay: 0-300s adjustable.
Gen Peak-shaving: When the generator's power
exceeds its rated value, the inverter will provide the
redundant part to ensure that the generator will
not overload.
ATS: It is related to ATS port voltage. It is better in
ATS ON "uncheck" position.

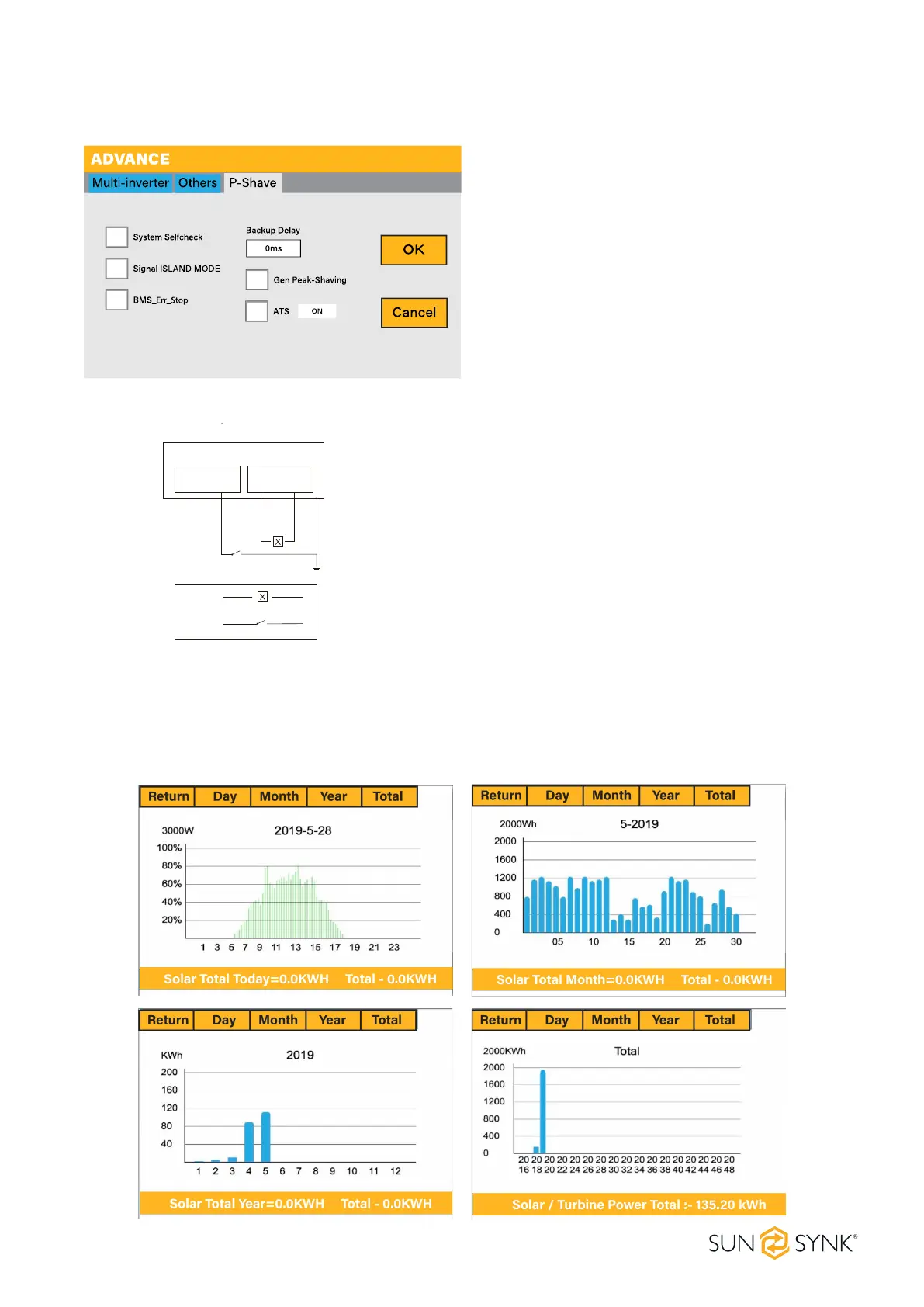

For more details, please refer to the left-side pic-
ture.
coil
external relay
open
contact
L N ATS
load port
shell
Ground cable
230V
Inverter
external relay
This page shows the daily, monthly, yearly, and total solar power produced. Access this page by clicking on
the ‘Solar/Turbine’ icon on the Home Page.
5.18. Solar Power Generated
To Next Page
