SunSynk SUNSYNK-5K-SG01LP1 - Meter and Earth Connection

SINGLE PHASE HI 3.6/5kW | User Manual27
DDSU666 DIN-RAIL METER
230V 5(60) A 800imp/kWh
2
56
1
4
7
8
3
Inverter
N L
N L N L N L
Grid
Load
GEN
Grid
AC
Breaker

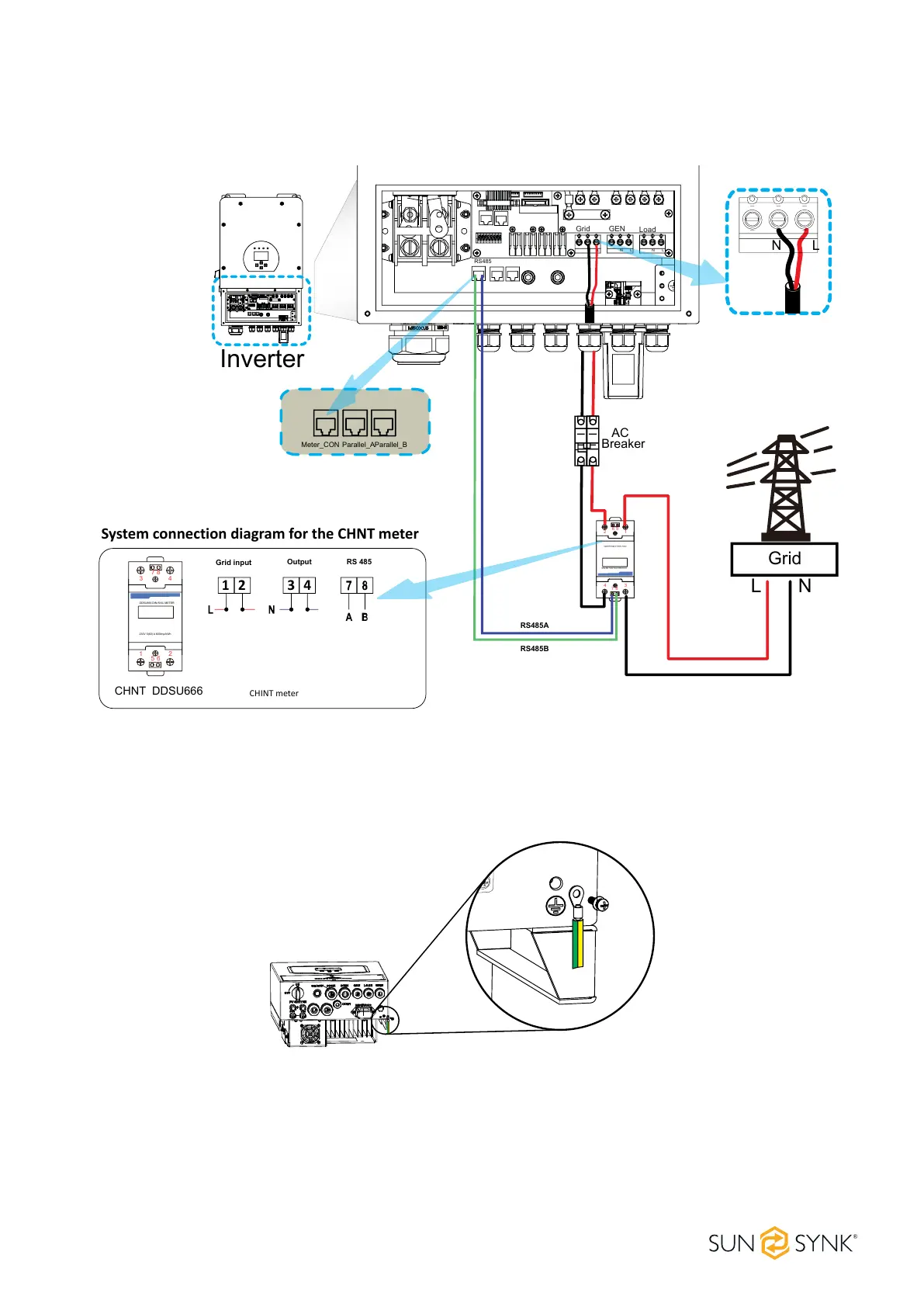

System connection diagram for the CHNT meter
21 43
CHNT DDSU666
DDSU666 DIN-RAIL METER
230V 5(60) A 800imp/kWh
2
5 6
1
4
7 8
3
Output
RS 485
Grid input
CHINT meter
L
N
RS485
Meter_CON Parallel_AParallel_B
RS485B
RS485A
An Earth Cable shall be connected to the earth plate on the grid size in order to prevent electric shock if the
original protective conductor fails.
All neutrals can be linked together to maintain the neutral bond. When a Neural Earth bond is required for
an ‘O-grid’ operation, then it has to be removed on ‘Grid-Tied’ operation.
If an Earth Bond is required between neutral and earth and your system is a hybrid system, then you can
have a permanent earth wire since this can cause faults with an RCD before the inverter.
4.10. Meter Connection
4.10.1. System Connection for the CHNT Meter
4.11. Earth Connection (MANDATORY)
