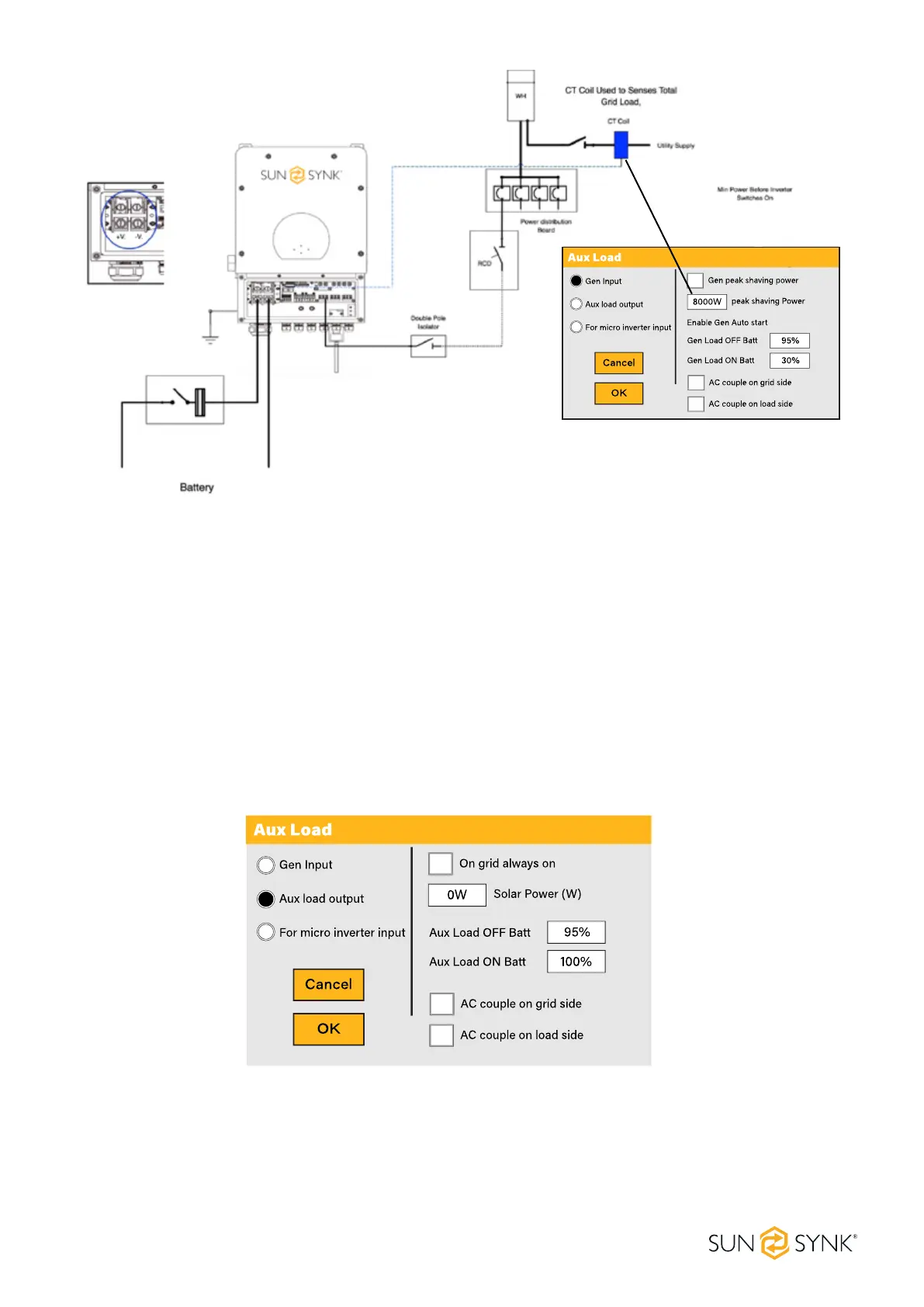

For Gen Input mode:
For Aux Load Output mode:
Gen Input: Tick this box if using a Generator. Allowed Max. power from diesel generator.
Peak shaving power: This is a technique used to reduce electrical power consumption during periods of
maximum demand on the utility grid. This enables the user to save substantial amounts of money due to the
expensive peak power charges.
Gen Load OFF Batt: Battery level when the Aux load switches o.
Gen Load ON Batt: Battery level when the Aux load switches on.
AC couple on load side: Connecting the output of the on-grid inverter at the load port of the hybrid invert-
er. In this the situation, the hybrid inverter will not be able to show the load power correctly.
AC couple on grid side: This function is reserved.
Aux Load Output: This mode utilizes the Gen input connection as an output which only receives power
when the battery SOC and PV power is above a user programmable threshold.
For Example: Power=500W, ON: 100%, OFF=95%. When the PV power exceeds 500W, and battery bank
SOC reaches 100%, Smart Load Port will switch on automatically and power the load connected. When the
battery bank SOC < 95% or PV power < 500w, the Smart Load Port will switch o automatically.
